6-4 In case of emergency
SCE0504
WARNING:
. Be sure to read and follow the instructions in
this section.
. DO NOT GET UNDER A VEHICLE THAT IS
SUPPORTED BY A JACK.
. Never use a jack which was not provided
with your vehicle.
. The jack, which is provided with your vehicle,
is designed only to lift your vehicle during a
tire change. Do not use the jack provided
with your vehicle on other vehicles.
. Never jack up the vehicle at a location other
than the jack-up point that is specified.
. Never lift the vehicle more than necessary.
. Never use blocks on or under the jack.
. Never start or run the engine while the
vehicle is on the jack. The vehicle may move
suddenly, and this may cause an accident.
. Never allow passengers to remain in the
vehicle while the tire is off the ground.
. Be sure to read the caution label attached to
the jack body before using.
. When jacking up the vehicle, be sure to
apply the parking brake.

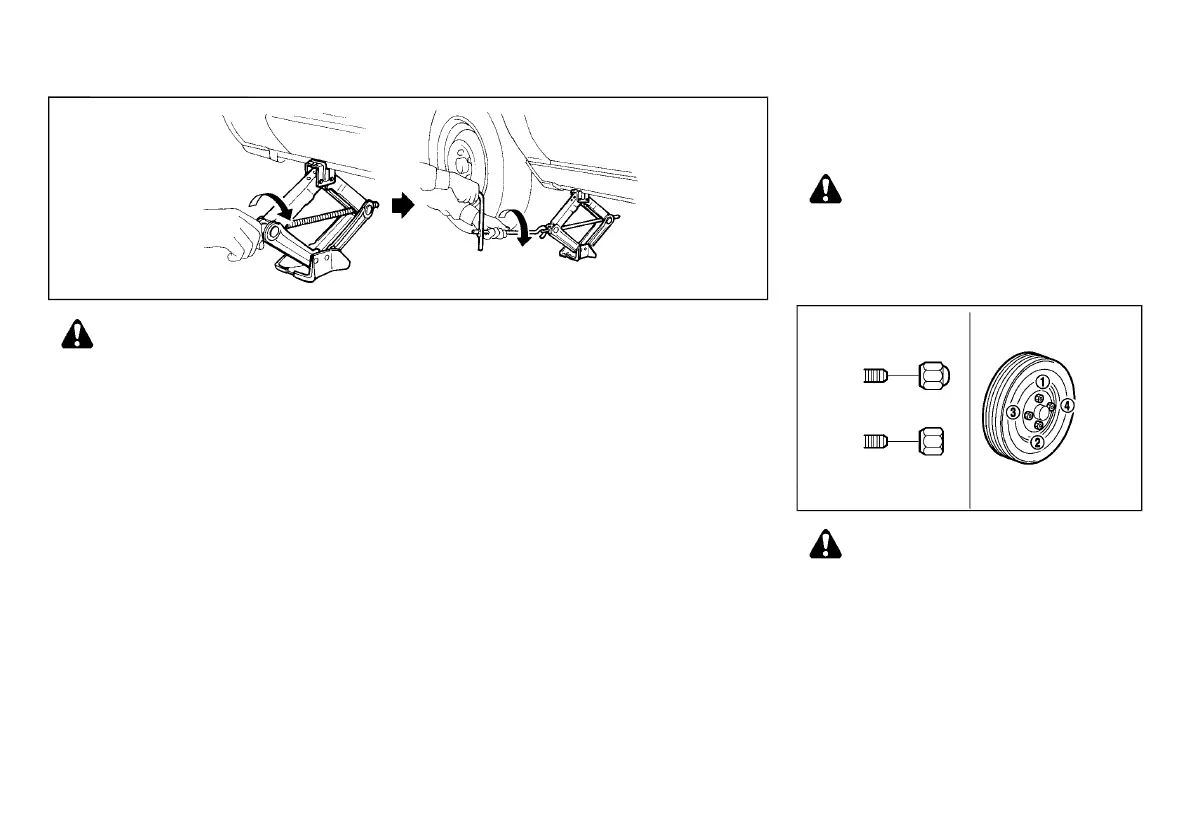

1. Place the jack directly under the jack-up point as
illustrated so that the top of the jack contacts the
vehicle at the jack-up point.
The jack should be placed on firm level
ground.
2. Align the jack head between the two notches
located at the jack-up point of either the front or
the rear section.
3. Fit the groove of the jack head between the
notches as shown.
4. Loosen each wheel nut, counterclockwise, one or
two turns with the wheel nut wrench.
Do not remove the wheel nuts until the tire is
off the ground.
5. Carefully raise the vehicle until the clearance
between the tire and ground is achieved.
6. To lift the vehicle, securely hold the jack lever and
rod with both hands and turn the jack lever.
Removing tire:
GUID-11F97BB9-9503-47D0-8BB9-62C812293875
1. Remove the wheel nuts.
2. Remove the damaged tire.
CAUTION:
The tire is heavy. Be sure that your feet are clear
from the tire and use gloves as necessary to
avoid injury.
Installing spare tire
E12-A-120227-C0F26721-13D5-464A-9CD3-A720E5BD5340
SCE0576
WARNING:
. Never use wheel nuts which are not provided
with your vehicle. Incorrect wheel nuts or
improperly tightened wheel nuts may cause
the wheel to become loose or come off. This
could cause an accident.
. Never use oil or grease on the wheel studs
or nuts. This may cause the wheel nuts to
become loose.
. The temporary-use spare tire is designed for
emergency use only.
Condition:
