[ Edit: 2016/ 11/ 24 Model: E12-A ]
E12-A-120227-9E0FC3A6-0157-4E09-9E8D-334A80EF176F
JVC1006X

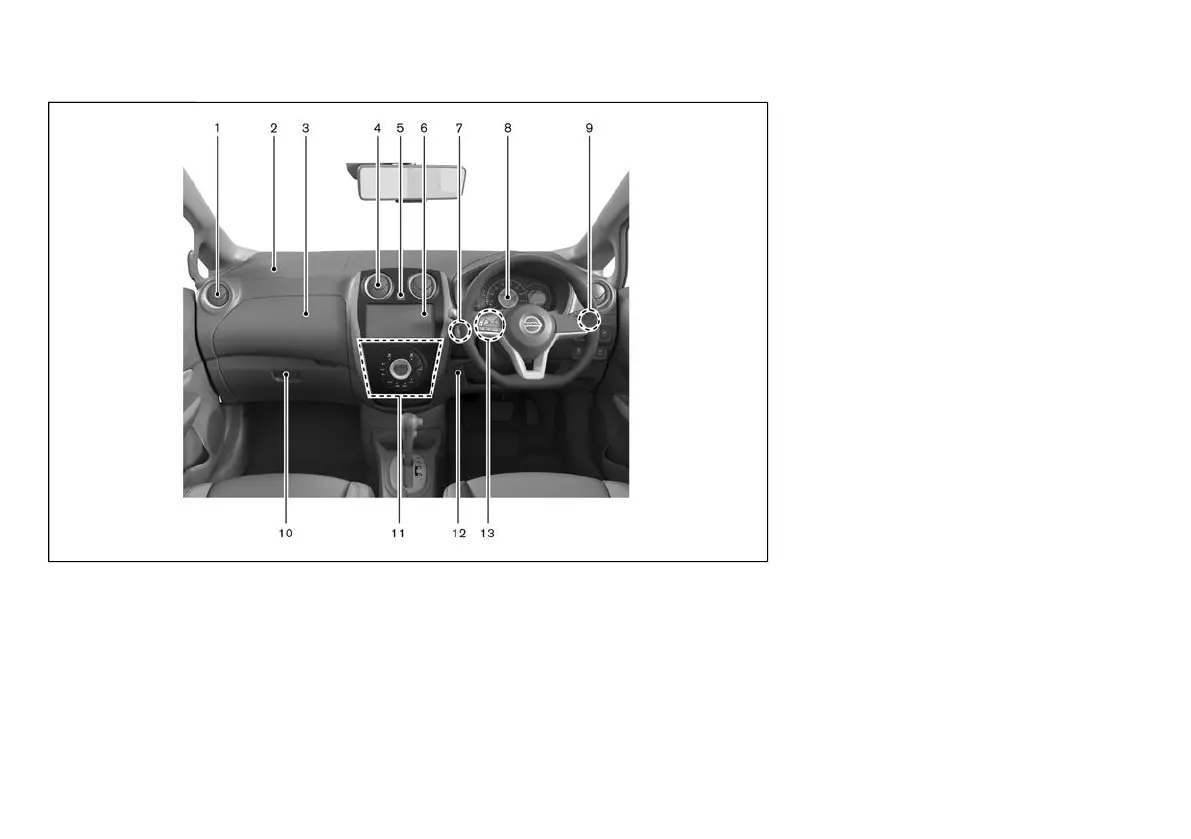

1. Side ventilator
2. Passenger’s front-impact air bag
3. Upper instrument box
— USB (Universal Serial Bus) Connection Port
4. Center ventilator
5. Hazard indicator flasher switch
6. Audio system*
7. Push-button ignition switch
8. Meters and gauges
9. Trip computer mode switch* /Clock settings
switch*
10. Glove box
11. Heater and air conditioner control
— Rear window defogger switch
12. Fuse box
13. Steering-wheel-mounted controls*
*: if equipped
Instruments and controls 2-3
INSTRUMENT PANEL
