2-4 Instruments and controls
E12-A-120227-907734FC-12DD-47F2-8AC5-A3DE1D56A157
JVC0329X
Type A

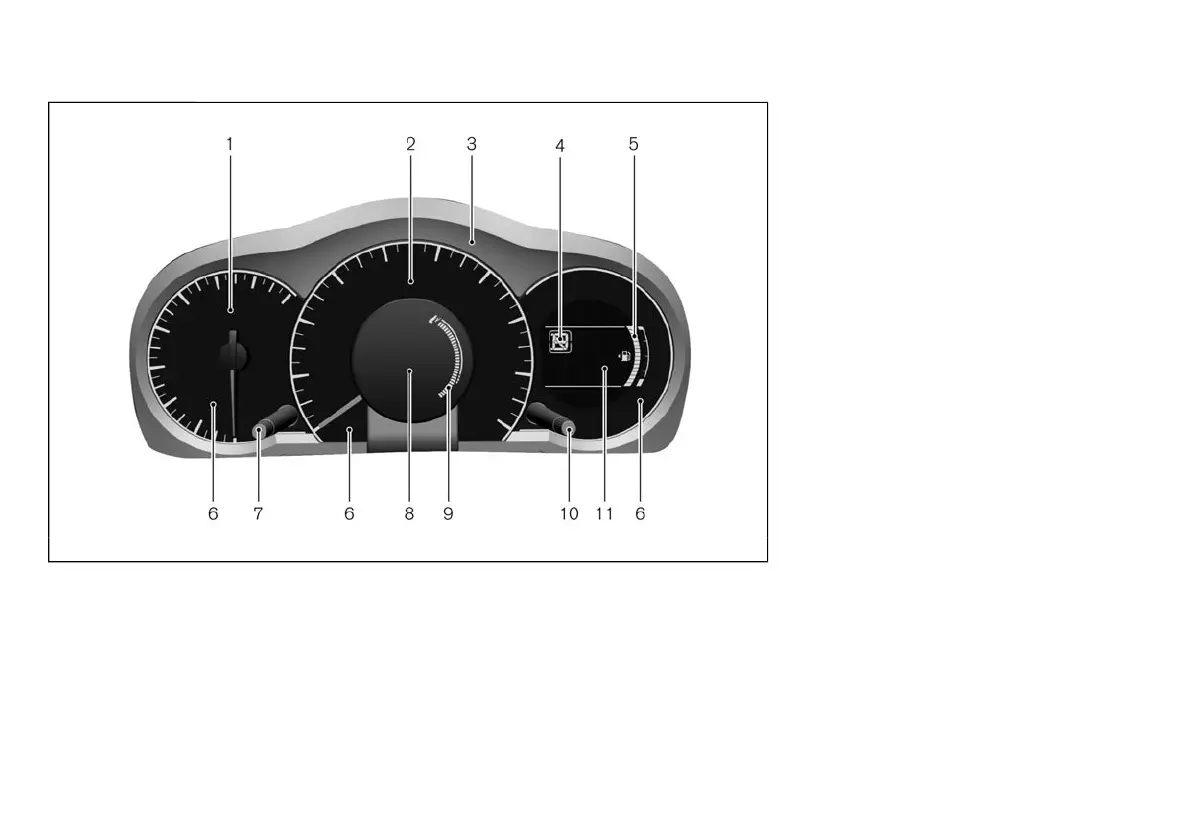

1. Tachometer
2. Speedometer
3. ECO drive indicator
4. Continuously Variable Transmission (CVT) posi-
tion indicator
5. Fuel gauge
6. Warning/indicator lights
7. ECO drive indicator switch/ECO pedal guide
switch
8. Vehicle information display
— Trip computer
— Clock
9. ECO pedal guide
10. Trip odometer switch/Instrument brightness
control switch/Maintenance interval setting
switch
11. Odometer/Twin trip odometer/Outside air tem-
perature
The needle indicators may move slightly after
the ignition switch is placed in the “OFF” or
“LOCK” position. This is not a malfunction.
