[ Edit: 2016/ 11/ 24 Model: E12-A ]
Headlight beam
E12-A-120227-0C0A4D5C-3E27-4F0D-BC10-9D8C3DFF89A5
JVI0493X

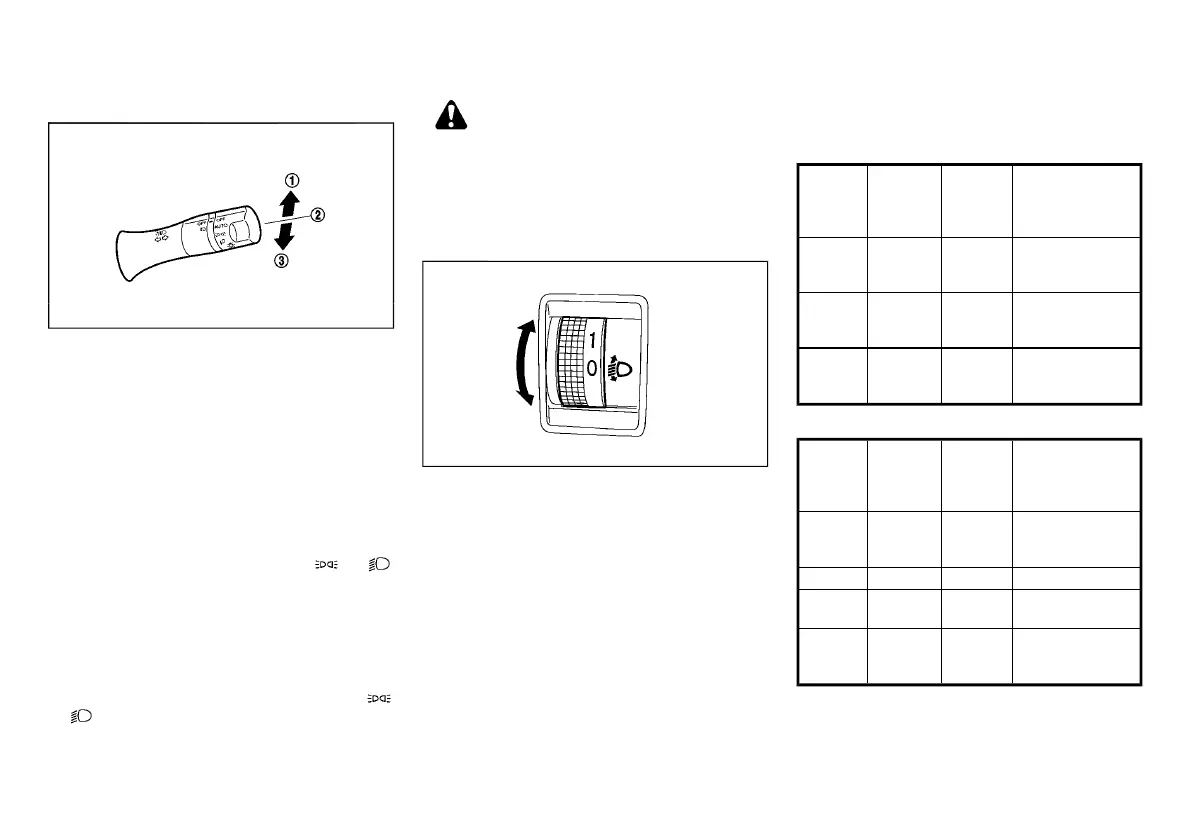

To turn on the high beam, push the lever towards the
front position
*
1
.
To turn off the high beam, return the lever to the neutral
position
*
2
.
To flash the headlights, pull the lever towards the
rearmost position
*
3
. The headlights can be flashed
even when the headlights are not on.
BATTERY SAVER SYSTEM
E12-A-120227-713E42AB-EEF1-4D55-8934-279E2D0B6096
The light reminder chime will sound if the driver’s door
is opened while the following operation is found:
. The headlight switch is in either the
or
position, and the ignition switch in the “ACC”,
“OFF” or “LOCK” position.
Be sure to turn the headlight switch to the “OFF”
position when you leave the vehicle.
If the doors are closed and locked with the remote
controller, the Intelligent Key or the door request
switch while the headlight switch is in either the
or position, the battery saver function will turn off
the lights to prevent the battery from being discharged.
The lights will turn on when the doors are being
opened.
CAUTION:
Do not leave the lights on when the engine is not
running for extended periods of time to prevent
the battery from being discharged.
HEADLIGHT AIMING CONTROL
E12-A-120227-F6B313F5-3338-4533-ADF9-2EB54D27B875
Manual type
GUID-99575EE2-8858-4339-ACDF-7C406BA1D2F1
JVI0477X
The headlight aiming control operates when the
ignition switch is in the “ON” position and the headlight
is on to allow the headlight axis to be adjusted
according to the driving condition.
When driving with no heavy load/luggage or driving on
a flat road, select the normal position “0”.
If the number of occupants and load/luggage in the
vehicle changes, the headlight axis may become higher
than normal.
If the vehicle is traveling on a hilly road, the headlights
may directly shine on the rearview and outside mirrors
of a vehicle ahead or the windshield of an oncoming
vehicle, which may obscure other drivers’ vision.
To adjust to the proper aiming height, turn the switch
accordingly. The higher the number designated on the
switch, the lower the headlight axis.
Select the switch position by referring to the following
samples.
For Thailand:
Switch
position
Number
of front
seat oc-
cupants
Number
of rear
seat oc-
cupants
Weight of load in
luggage compart-
ment
0 1 or 2
No
occu-
pants
No load
1 2 3
No load to ap-
proximately 29 kg
(13.15 lb)
2 1
No
occu-
pants
Approximately
248 kg (112.49
lb)
Except for Thailand:
Switch
position
Number
of front
seat oc-
cupants
Number
of rear
seat oc-
cupants
Weight of load in
luggage compart-
ment
0 1 or 2
No
occu-
pants
No load
1 2 3
No load
2 2 3
Approximately
126 kg (278 lb)
3 1
No
occu-
pants
Approximately
343 kg (756 lb)
Instruments and controls 2-19
