Installation on rear outboard seats
Front-facing:
Be sure to follow the manufacturer’s instructions for
the proper use of your child restraint. Follow these
steps to install a front-facing child restraint on the
rear outboard seats using ISOFIX:
1. Position the child restraint on the seat
j1.
2. Secure the child restraint anchor attachments to
the ISOFIX lower anchors
j2.
3. The back of the child restraint should be secured
against the vehicle seat back. If necessary, ad-
just or remove the head restraint to obtain the
correct child restraint fit. (See “Rear seats” ear-
lier in this section.) If the head restraint is re-
moved, store it in a secure place. Be sure to
install the head restraint when the child restraint
is removed. If the seating position does not have
an adjustable head restraint and it is interfering
with the proper child restraint fit, try another seat-
ing position or a different child restraint.
4. Shorten the rigid attachment to have the child
restraint firmly tightened; press downward
j3
and rearward
j4 firmly in the centre of the child
restraint with your knee to compress the vehicle
seat cushion and seatback.
5. If the child restraint is equipped with a top tether
strap, route the top tether strap and secure the
tether strap to the tether anchor point. (See
“ISOFIX child restraint system” earlier in this sec-
tion.)
6. If the child restraint is equipped with other anti-
rotation devices such as support legs, use them
instead of the top tether strap following the child
restraint manufacturer’s instructions.
7. Test the child restraint before you place the child
in it
j5 . Push the child restraint from side to side
and tug it forward to make sure that it is held
securely in place.
8. Check to make sure that the child restraint is
properly secured prior to each use. If the child
restraint is loose, repeat steps 3 through 7.
NPA2049

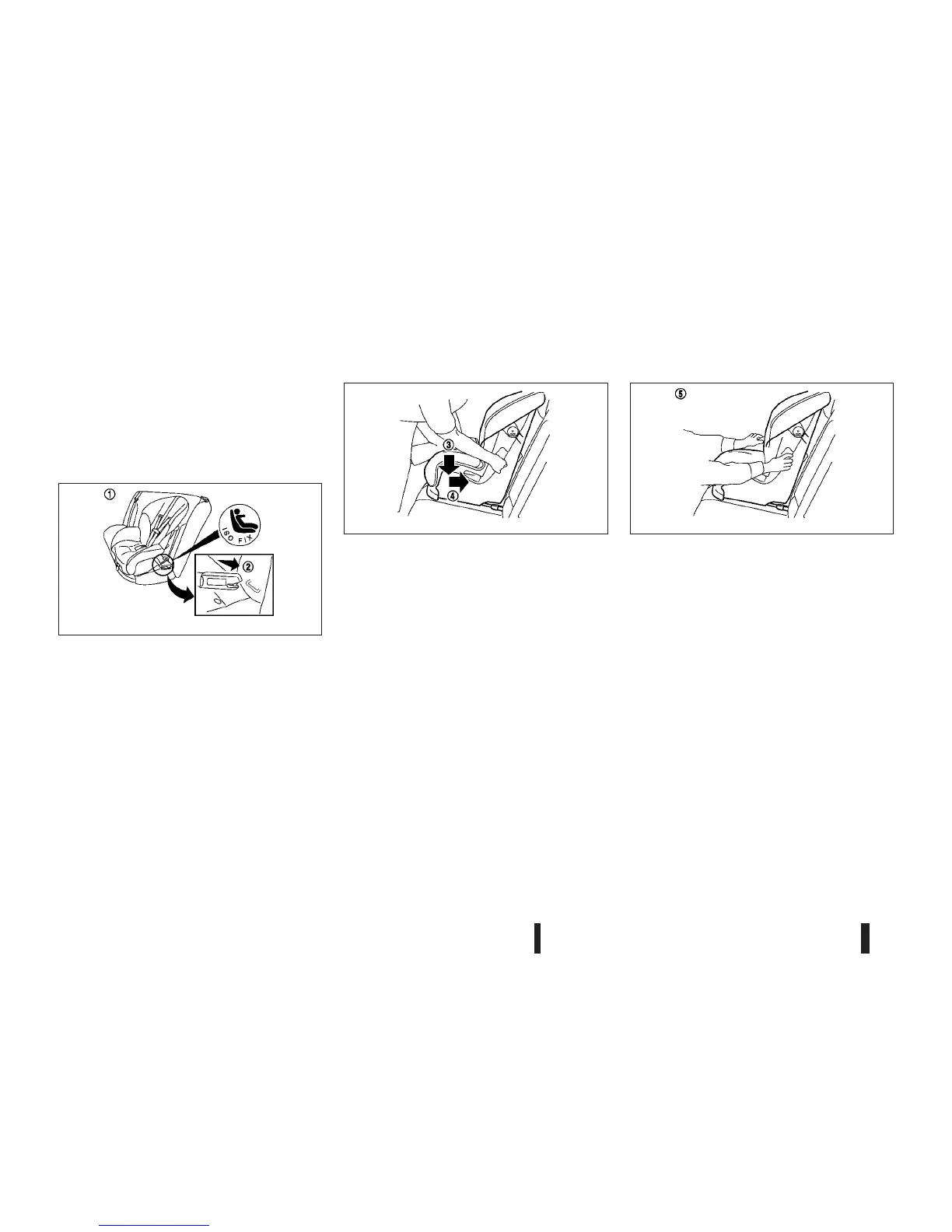

Steps 1 and 2
SSS0754AZ
Step 4
SSS0755AZ
Step 7
