8-24 Maintenance and do-it-yourself
GUID-97E32732-F8DE-4DD4-AC11-2EE862484310
HEADLIGHTS
GUID-D06E385B-BA91-40B7-834B-6C726E410217
Replacing halogen headlight bulb
GUID-02E5F9A5-B545-4FF0-A15F-5131598A0573
The halogen headlight is a semi-sealed beam type
which uses replaceable headlight (halogen) bulbs.
They can only be replaced after removing the headlight
assemblies. If replacement is required, contact a
NISSAN dealer.

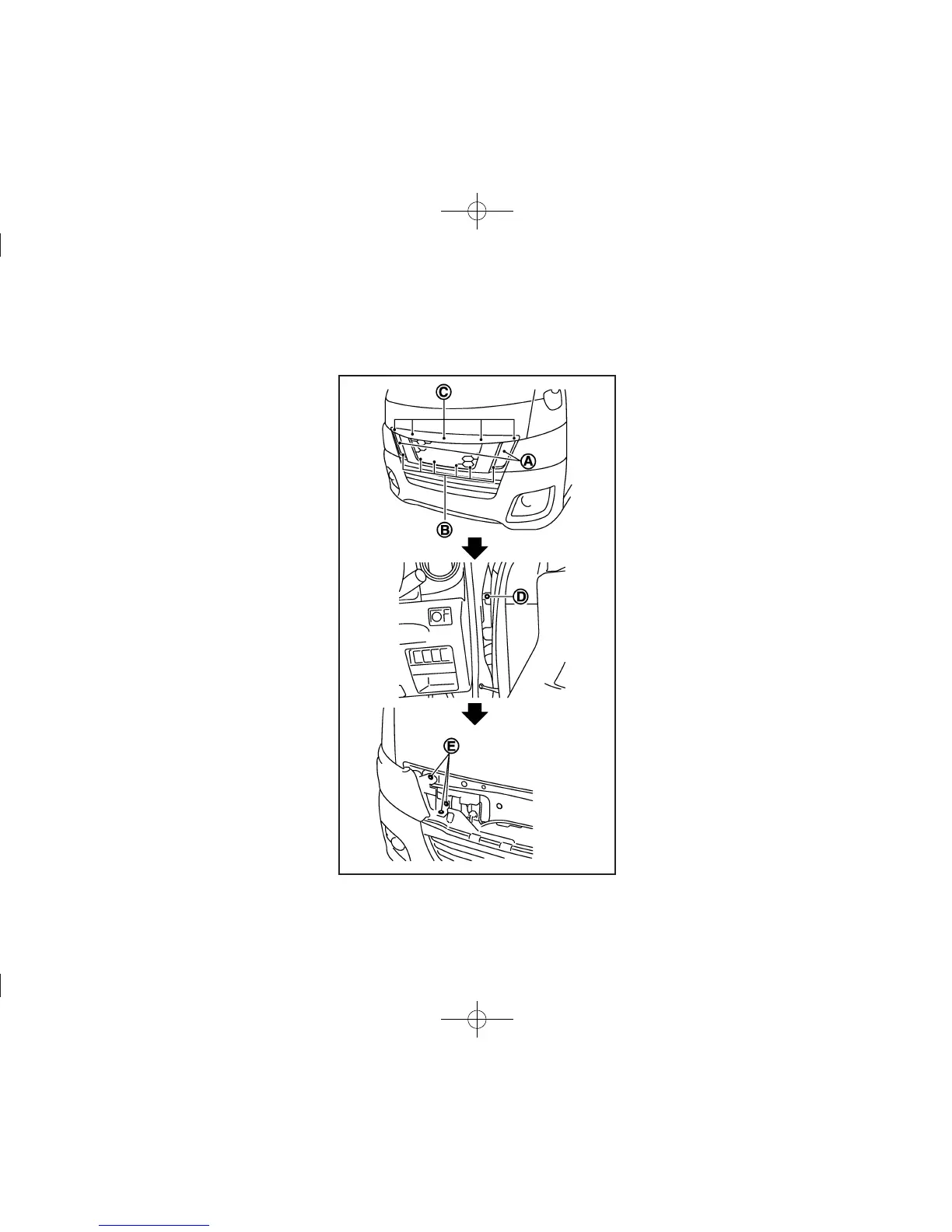

Removal of the grill before replacing the bulb:
GUID-896AA31A-81D 0-4E9B-81ED-1F58D53AA854
JVM0151X
1. Unlock the turn fasteners
*
A
by rotating 45
degrees with a flat-blade screwdriver.
2. Remove the tabs
*
B
located under the front grill.
3. Pull the upper grill toward the front of the vehicle.
Then remove the grill while removing the upper
clips
*
C
.
4. Open the front door.
5. Remove the bolt
*
D
.
6. Remove the bolts
*
E
.
7. Pull the light assembly toward the front of the
vehicle to remove it.
LIGHTS
