REAR SEAT
Removal and Installation
INFOID:0000000007330251
CAUTION:
When removing and installing, use shop cloths to protect parts from damage.
60:40 SPLIT FOLD DOWN SEAT - HATCHBACK
Removal
1. Remove the tonneau board. Refer toEI-44, "Removal and Installation".
2. Remove the luggage floor center board. Refer to EI-44, "
Removal and Installation".

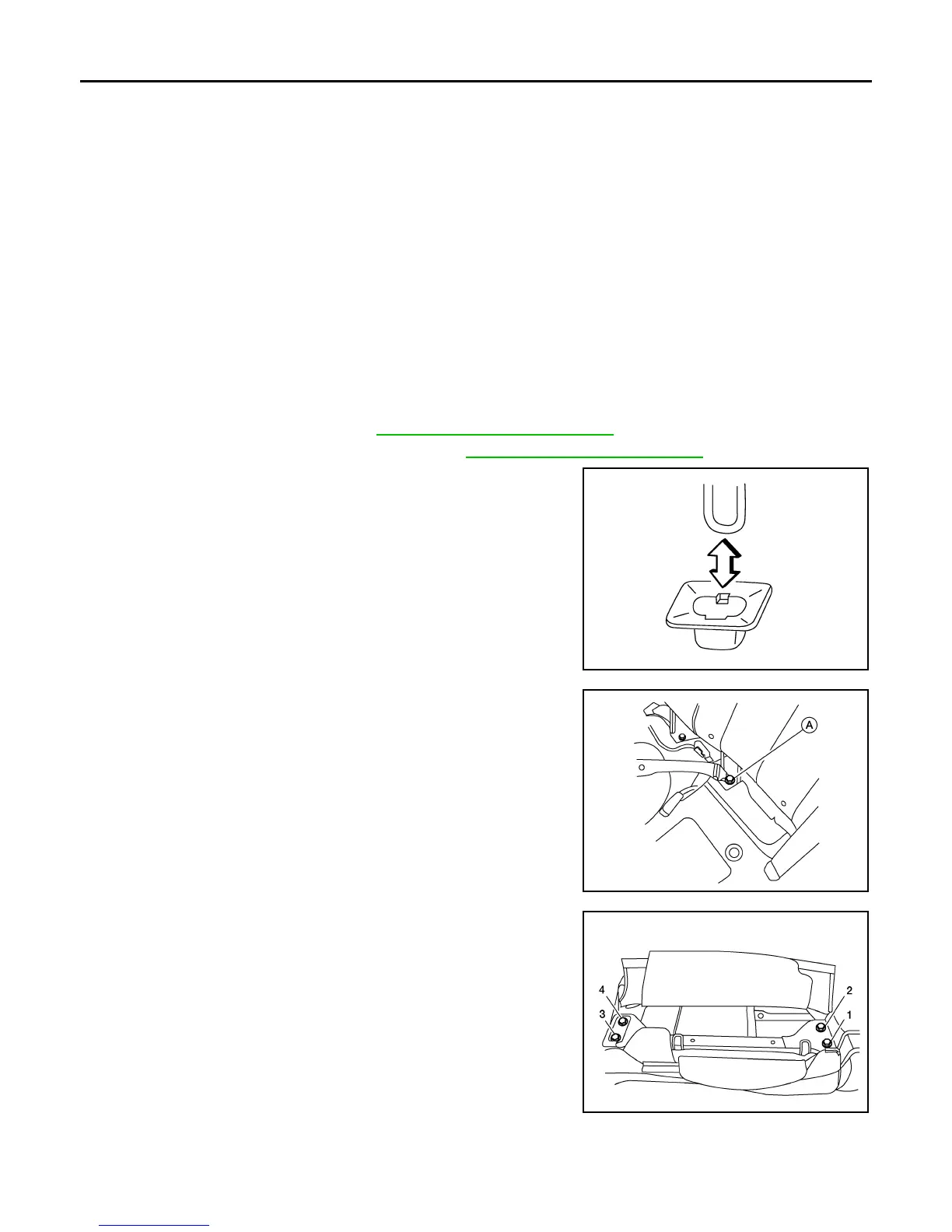

3. Pull seat cushion up, then remove the seat cushion from the
seat cushion hook.
NOTE:
• Always replace the seat cushion hooks when the seat cushion
has been released.
4. Remove the center seatbelt anchor bolt (A) from under the seat.
5. Remove the seatback bolts in the reverse order as shown from
the right rear seat back brackets.
7. Rear seatback assembly RH 8. Rear seatback pad RH 9. Seat cushion assembly
10. Rear seat cushion trim 11. Rear seat cushion pad and frame 12. Rear seat cushion hook (body)
13. Rear seatback assembly LH 14. Rear seatback trim LH 15. Rear seatback pad LH
16. Trim clip 17. Rear seatback side trim RH 18.
Rear seatback side pad and frame
LH
19. Rear seatback side assembly LH 20. Rear seat lock assembly 21. Locking headrest holder
22. Rear headrest 23. Free headrest holder 24. Rear seat cushion hook (seat)
25. Rear seatback side bracket 26. Rear seat striker RH 27. Rear seatback center bracket
28. Rear seat striker LH
PIIB4085J
WIIA1234E
WIIA1287E
