REAR SEAT
SE-23
< SERVICE INFORMATION >
C
D
E
F
G
H
J
K
L
M
A
B
SE
N
O
P

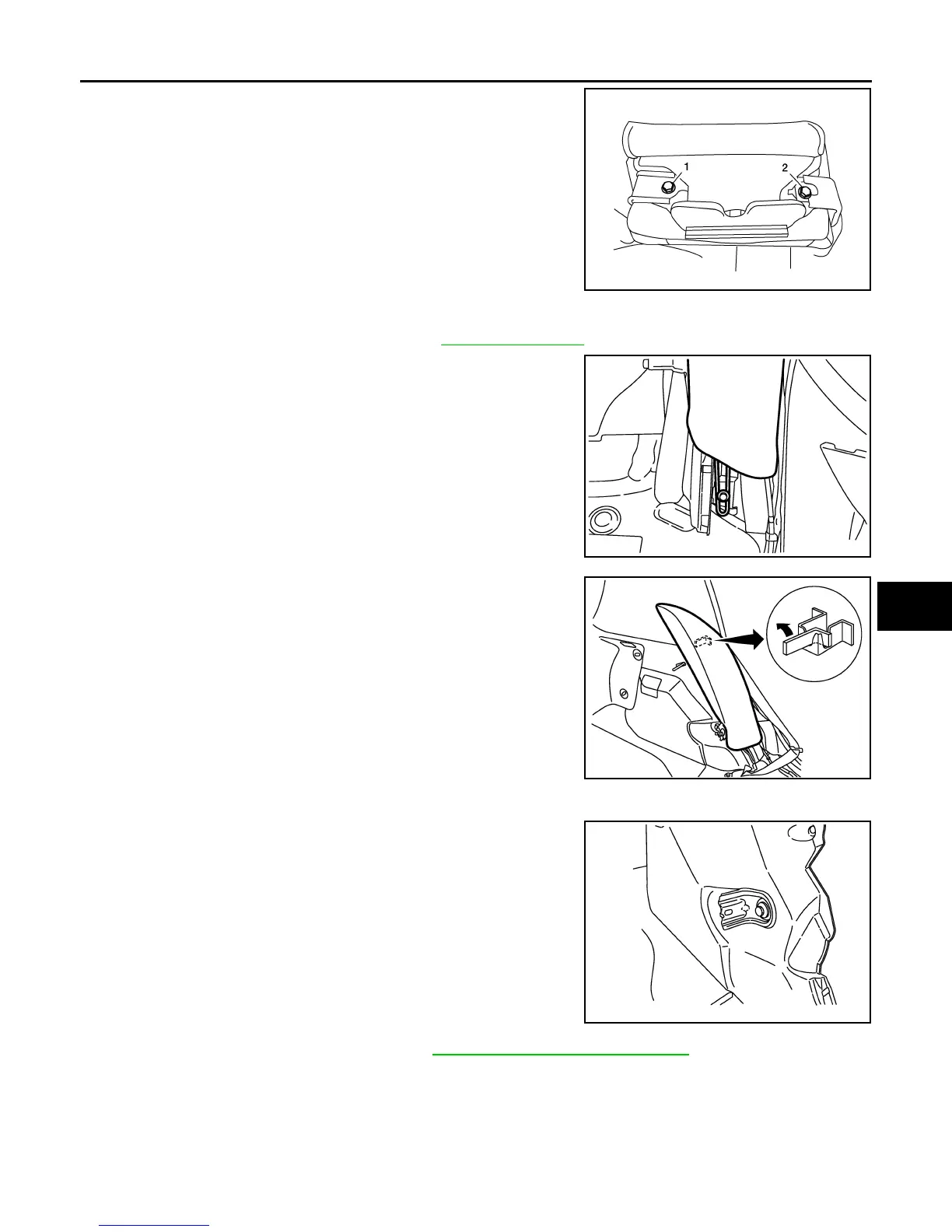

6. Remove the seatback bolts in the reverse order as shown from
the left rear seat back brackets.
7. Remove the seatback from the vehicle.
8. Remove the kicking plate rear inner. Refer to EI-35, "
Component".
9. Remove the bolt under the seatback side.
10. Pull seatback side up, and then remove seatback side.
11. Remove the rear seatback center bracket bolts and the rear seatback center bracket.
12. Remove the rear seatback side bracket bolt and the rear seat-
back side bracket.
13. Remove the rear seatback finisher. Refer to SE-21, "
Component Parts Drawing".
14. Remove the rear seat striker bolts and the rear seat striker.
Installation
Installation is in the reverse order of removal.
• When installing the rear seatback side bracket perform the following procedure:
WIIA1288E
PIIB2482J
PIIB2483J
PIIB2484J
Revision: July 2011 2012 Versa
