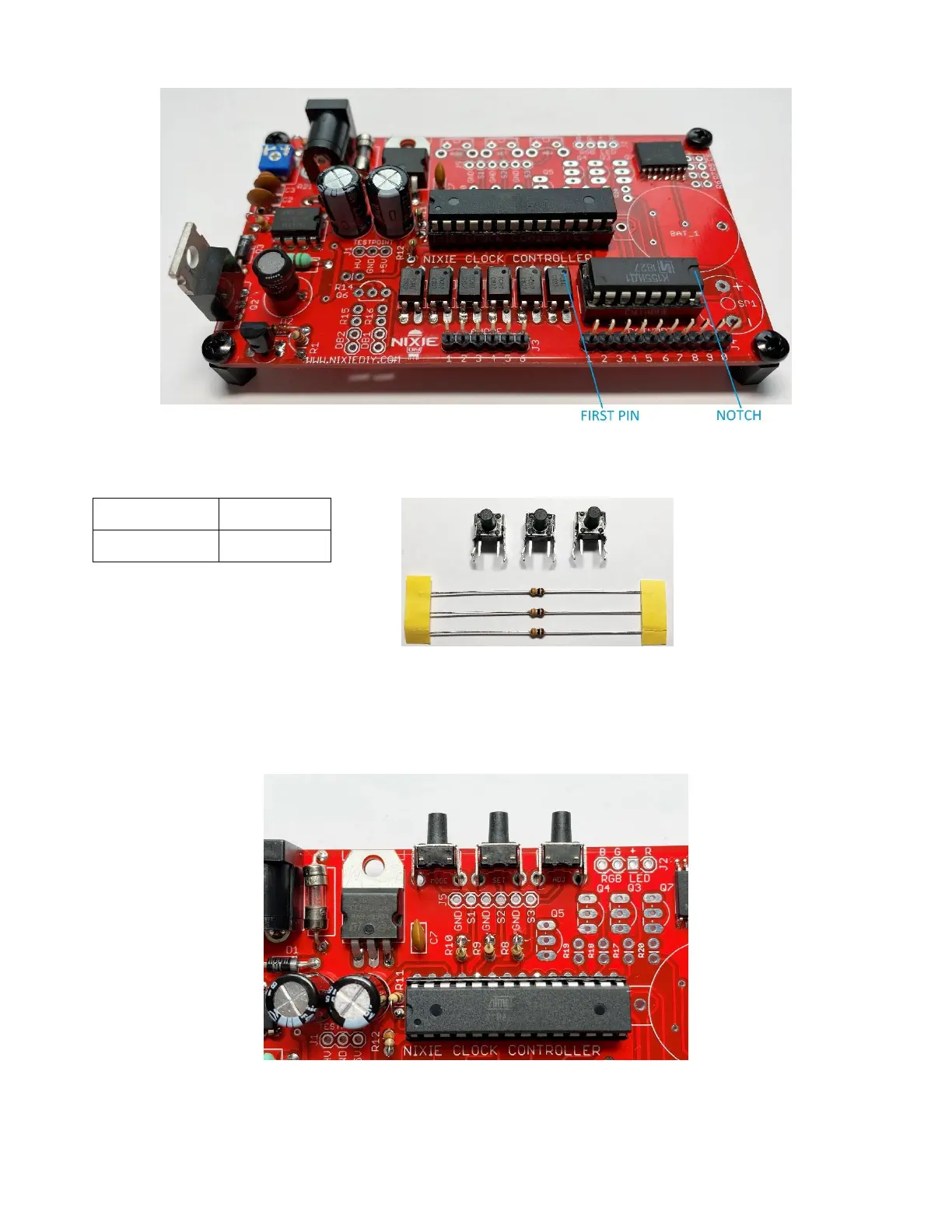

7. Buttons circuit components assembly
7.1. Parts S1-S3 are right-angle tactile button switches. Insert them into locations and make sure that
they sit flat on the board. Solder all four pins of each switch.
7.2. All resistors R8, R9 and R10 leads bend in accordance with item 3.1. Insert them into locations R8,
R9, R10 and solder their leads as pointed on the picture.
