12.3. Plug in the power DC 12V supply. If all components installed and soldered properly the clock
shall begin to operate.
13. PCB dimensions

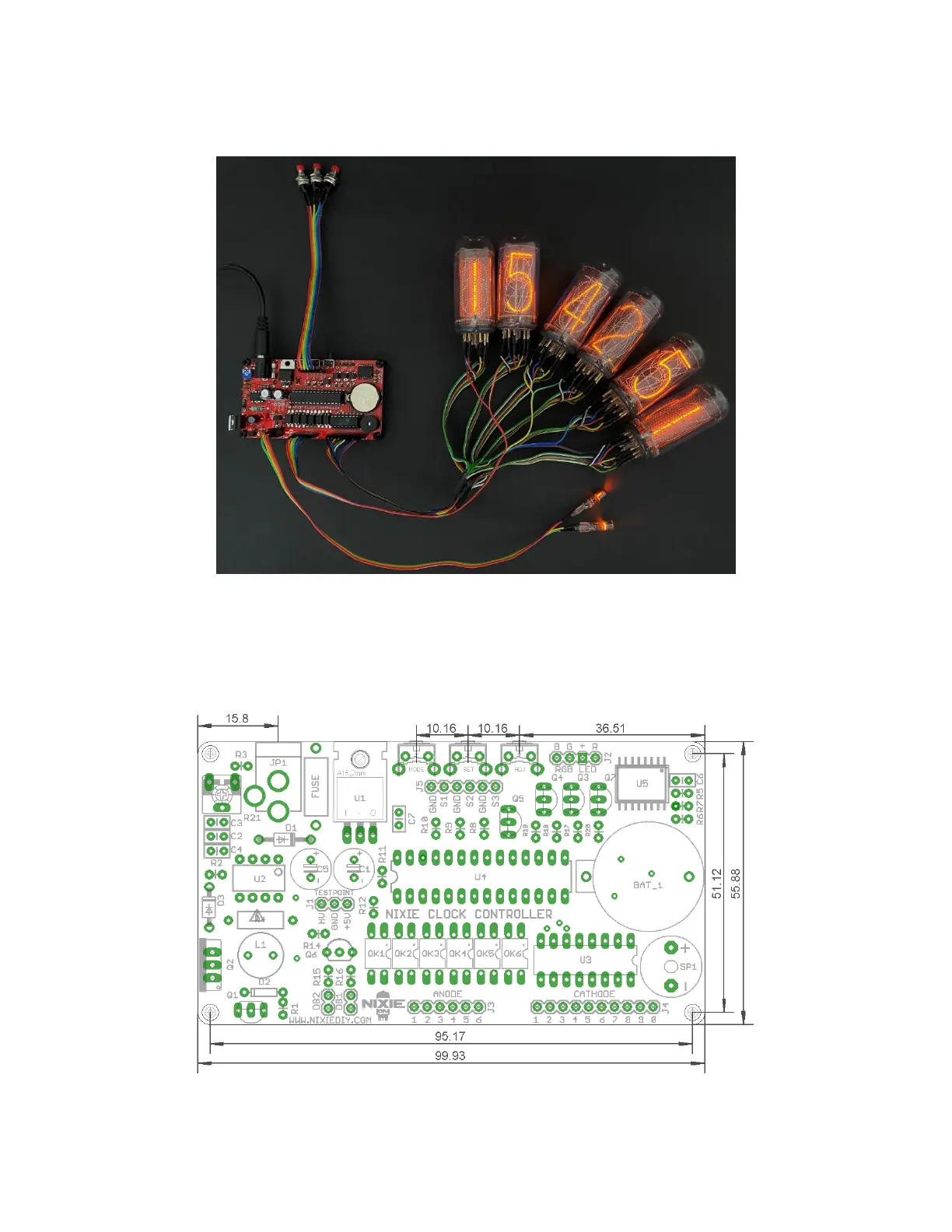

PCB dimensions pointed on the drawing below. They will be necessary if you decide to make the case
for clock. All dimensions pointed in millimetres. Highest electronics component height is equal 9 mm.
