KTA 0F0208
ODR-1
Natural OVERDRIVE

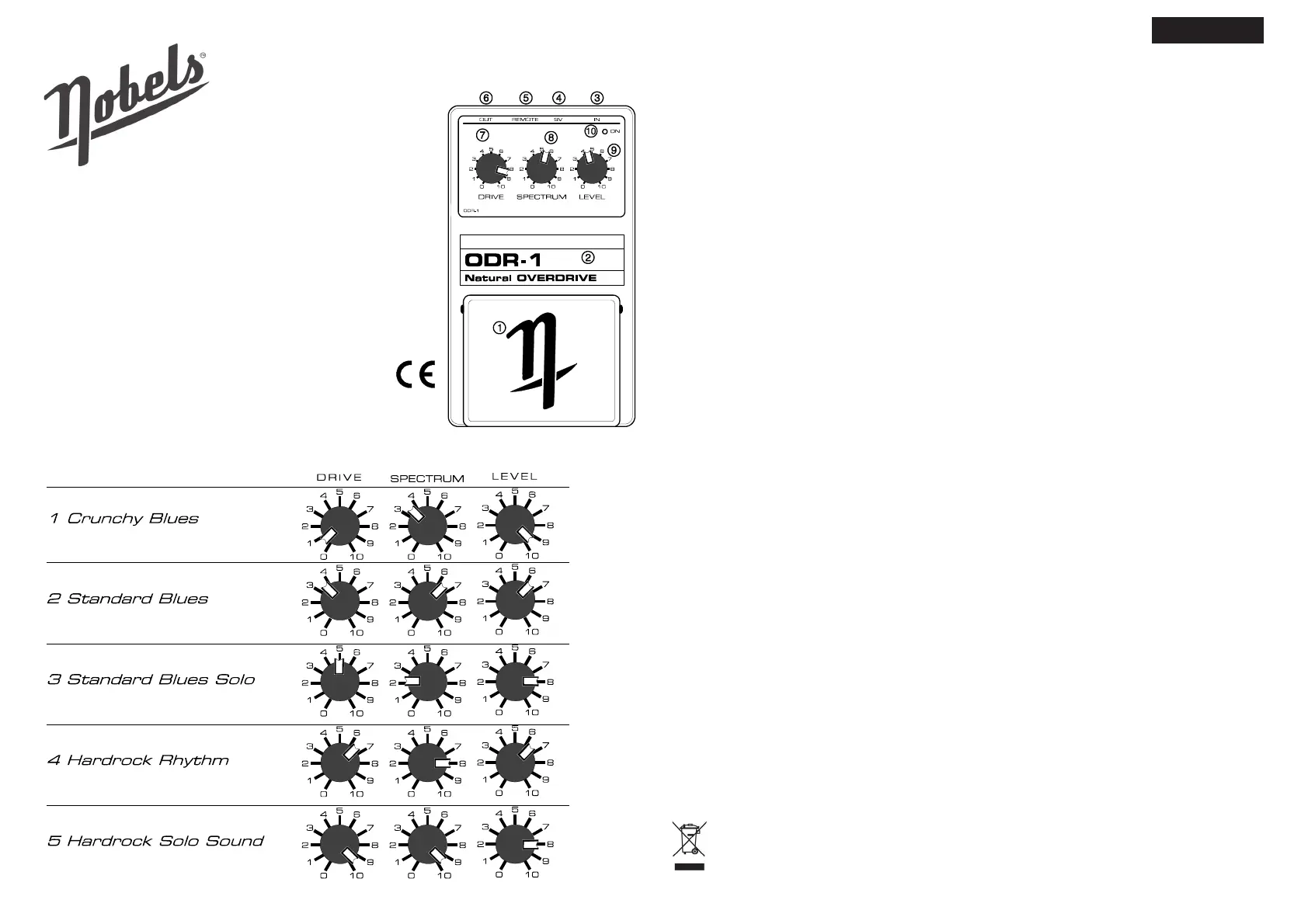

Operation
- Insert a 9V battery (2) or connect a regulated 9V power supply adaptor to the DC jack (4).
- Connecting a cable to the input jack (3) will automatically switch the unit on.
- Connect the amplifier to the output jack (6). Select the desired sound with the 3 controls
(7, 8, 9). (see Sound examples)
- Pressing the pedal (1) switches the unit on or off.
- Instead using this unit on the frontstage, you can place it with your equipment and control
it with a standard momentary footswitch connected to the remote jack (5).
- Before changing the battery (2) or connecting a power supply always unplug the jack (3)
to switch the unit off.
- We suggest to use a regulated 9V power supply adaptor to keep our environment clean.
- Power supply specifications: see imprint on bottom of unit.
Function
(3) IN jack: Inserting a plug switches the unit on. (Do not use a stereo cable)
(4) 9V DC jack: Jack for a regulated 9V power supply unit.
(5) REMOTE jack: The ON / OFF-function can be remote controlled by a momentary switch,
connected to the REMOTE jack (5). Intelligent switching devices (like the Nobels MS-8,
MS-4 or MF-2) also can remote control the unit.
(6) OUT jack: This output delivers a low impedance output signal best for the input of your
amplifier.
(7) DRIVE control: Adjust this control to get sounds from slight crunch to full overdrive.
(8) SPECTRUM control: This control changes the amount of deep-mid and treble frequencies
at the same time. In min. position you have warm mid-tones for a great blues sound. If you
turn the knob clockwise your sound become harder, ideal for a really good hardrock sound.
(9) LEVEL control: Adjusts the volume.
(10) LED: This LED (10) shows the state of the effect. LED on = Effect on.
Important notes
- Avoid using this unit in extreme humidity, heat or dust environment.
- When the unit is not in use for longer periods, remove the battery (2) to prevent damages
by battery leakage.
- Also unplug the input (3) to prevent wasting battery life when the unit is not in use.
Owners manual
Specifications
Power 9V dry battery / stabilized power supply*
Power connector 2.1mm - negative center
Consumption max. 11mA
Input impedance approx. 1MΩ
Output impedance approx. 2,2kΩ
Max. input level +6dB
Controls Drive, Spectrum, Level
Jacks DC, TS 1/4": Input, Remote, Output
Remote momentary switch
Display 1x LED: green (On/Off)
Dimensions 74mm x 126mm x 58mm
Weight 450g (without Battery)
Specifications are subject to change without notice!
* Hum will occur when using unstabilized power supplies!
Sound examples
Waste Electrical and Electronic Equipment labeling:
In the European Union, do not discard this product as unsorted municipal waste. Contact your
local authorities or send it back to the Nobels distributor.
More info: www.nobels.com
English
