NOBO CABLE CONTROL
Power: 230 - 240 volts AC
Contacts: 3 amps at 240 volts
Enclosure: Double Insulated - IP30
Dimensions:
101 x 163 x 33
mm
Mounting: Wall surface mounted
Battery: 10 months
Switch: 3 on and 3 off per day
Override: 1 or 2 hours boost
Heating 2 Zone 7 day Time Control Unit.
Designed to provide time control for two heating zones using a pilot wire sytem of control.

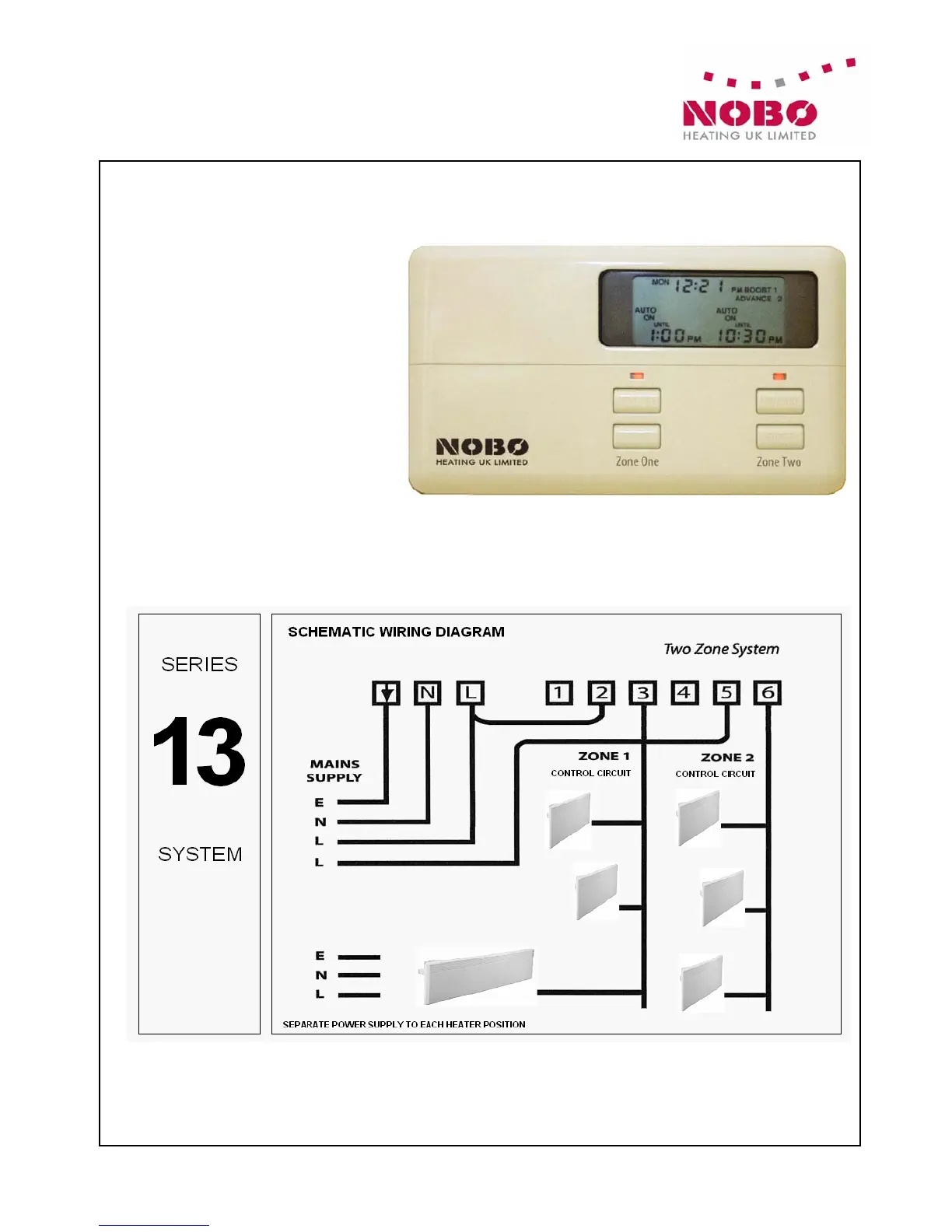

SCHEMATIC WIRING DIAGRAM
Each heater requires both permanent power supply and live pilot wire circuits
All wiring must comply with IEE Regulations.
Observance of clause 514-11-01 of the wiring regulations in necessary where more than one live supply is taken into an appliance.
At each heater position use of a Triple Pole Isolator or two Double Pole isolators is recommended.
Telephone: 0121 328 5671 Facsimile: 0121 327 8580
13 H27Z. txt - 2ZC.02
H27Z
