NOBO PANEL RADIATORS
The NOBO Panel Radiators, designed and manufactured as a fixed appliance.
The Radiator should be permanently fixed to the wall using rawlplugs and screws or other
similar suitable fixings. Clearance around and above the Radiator must be allowed and the
following minimum dimensions should be considered.
Above the Radiator: 130 mm
Each side of the Radiator: 20 mm
Beneath the Radiator: 70 mm
In front of the Radiator: 100 mm
For the best results the Radiator should be mounted as low as is practical and between
100 and 150 mm clearance above the floor is suggested.

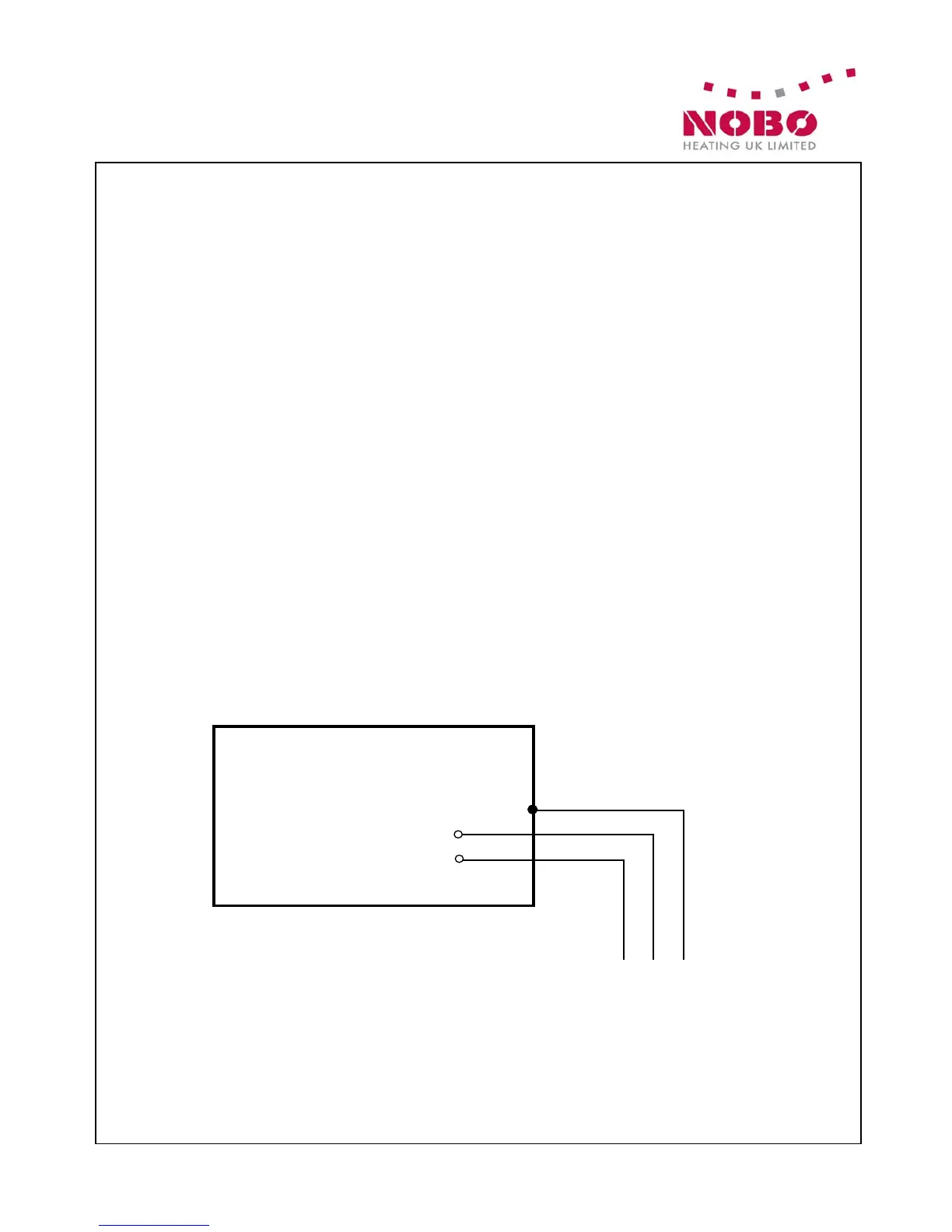

The electricity supply should be provided through a fixed flex connection unit and the
following connections should be made.
Brown: (L) Live (Red)
Blue: (N) Neutral (Black)
Green / Yellow: (E) Earth (Green / Yellow)
PANEL RADIATOR
L N E
230 volt
POWER
SUPPLY
Telephone: 0121 328 5671 Facsimile: 0121 327 8580
Series 8 - MV 100. txt - GE.02
GREEN/YELLOW WIRE
BROWN WIRE
BLUE WIRE
To Next Page
