Electrical
WARNING - THIS APPLIANCE MUST BE EARTHED
The heater is tted with a cable and plug. The length of exible
cable type is H05VV-F size 3 x 1.0mm
2
on all models.
General
The Q range of Convectors are designed for wall mounting
on the wall brackets supplied. They should only be operated
when in the upright position as shown in Fig. 1 i.e. when the
controls are on the top right hand side of the heater.
All models are splashproof to IPX4 standard.
Before connecting the heater check that the supply voltage is
the same as that stated on the heater.
Wall Mounting
IMPORTANT – The wall brackets supplied with the appliance
must be used. The heater should be positioned observing
the minimum clearances stated around the heater - see
Fig. 1.
DO NOT locate the heater immediately below a xed socket
outlet or connection box.
1. Remove wall mounting bracket from the back of
the heater by depressing the spring latch at the top
of each bracket - see Fig. 2.
2. Fix the wall bracket securely to the wall through the
four screw holes provided.
3. Present the heater to the wall bracket, and engage
lower slots in the back with bracket.
4. Raise the heater to upright position and push the
heater onto brackets to engage top latch.
Access to the controls
The controls cover (see ‘x’ in Fig. 1) on your heater has a
latch which may be locked shut if desired using a small bladed
screwdriver - see Fig. 3.
To open the cover insert the blade of the screwdriver in the
small slot and rotate a quarter of a turn clockwise to disengage
the latch. The cover may then be hinged back towards the wall
for access to the controls.
Operation
Control of Output and Temperature (see Fig. 4)
The switch marked O and I controls the electricity supply to the
heating elements. The OFF position is marked O.
The switch marked I - II (half heat – full heat) provides a
choice of output as desired.
255
MIN

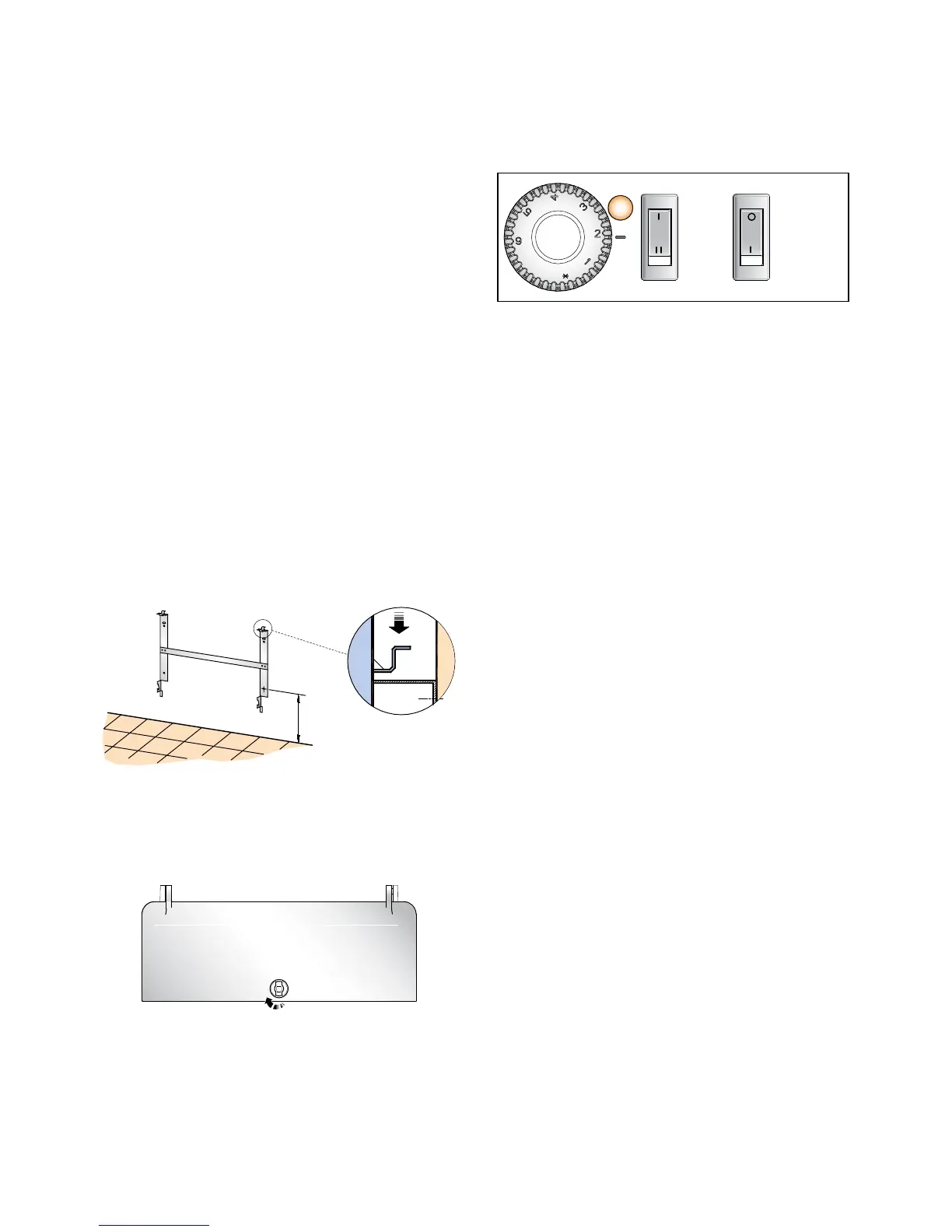

Fig. 2
Fig. 3
Fig. 4
Switch on the heater and turn the thermostat knob to mark 6
opposite the indicator mark (located on centre right of the knob
- see Fig. 4), and set selector switch to full heat output to warm
the room rapidly. When the room temperature has reached
the desired level, turn the thermostat knob back slowly until
the thermostat just clicks off. The heater will then maintain the
room temperature at the chosen level, provided that the correct
size of heater has been selected for the room to be heated.
NOTE – Should your heater fail to come on when the
thermostat knob is at a low setting, this may be due to the
room temperature being higher than the thermostat setting.
Thermostat Operation
The heater is tted with an adjustable thermostat enabling
the room temperature to be controlled by adjusting the setting
accordingly. The
* setting represents a room temperature of
approximately 5°C and may be used for protection against
frost. Higher temperature settings range from 1-6 (max.)
creating a room temperature of approximately 30°C.
A neon indicator light glows when the appliance is actually
heating.
