2.1 INSTALLATION
For maximum efficiency, this heater is to be
wall mounted between a minimum height of
100mm and a maximum height of 150mm off
the floor. This is to allow the necessary volume
of air to flow freely through the vents. It is also
important to allow a minimum of 100mm
clearance at the top and sides of the heater
and 500mm from the front (Fig. 2) so as not to
force the air back into the heater and activate
the Over Temperature Safety Thermal Cut-Out
Switch.
WARNING
: IN ORDER TO AVOID
OVERHEATING, DO NOT COVER
THE HEATER
PANEL LOCATIONS
If the “Over Temperature Safety Thermal Cut-Out Switch” is activated, the heater
will automatically switch off to limit the temperature to a safe value. To reset the
thermal cut-out, simply switch the heater off, unplug it from the power point and
remove the obstruction(s). Plug the heater back in and switch it on. The thermal
cut-out switch will reset after a few minutes and the heater will function normally.
This heater is IPX4 rated and suitable for use in all rooms including Zone 2 in Bathrooms
(Fig.3) in accordance with AS/NZS 3000: 2018 (Wiring Rules).This heater is double
insulated and does not require earthing, for use in the bathroom it must be located so
that the controls cannot be touched by a person in the bath or shower.

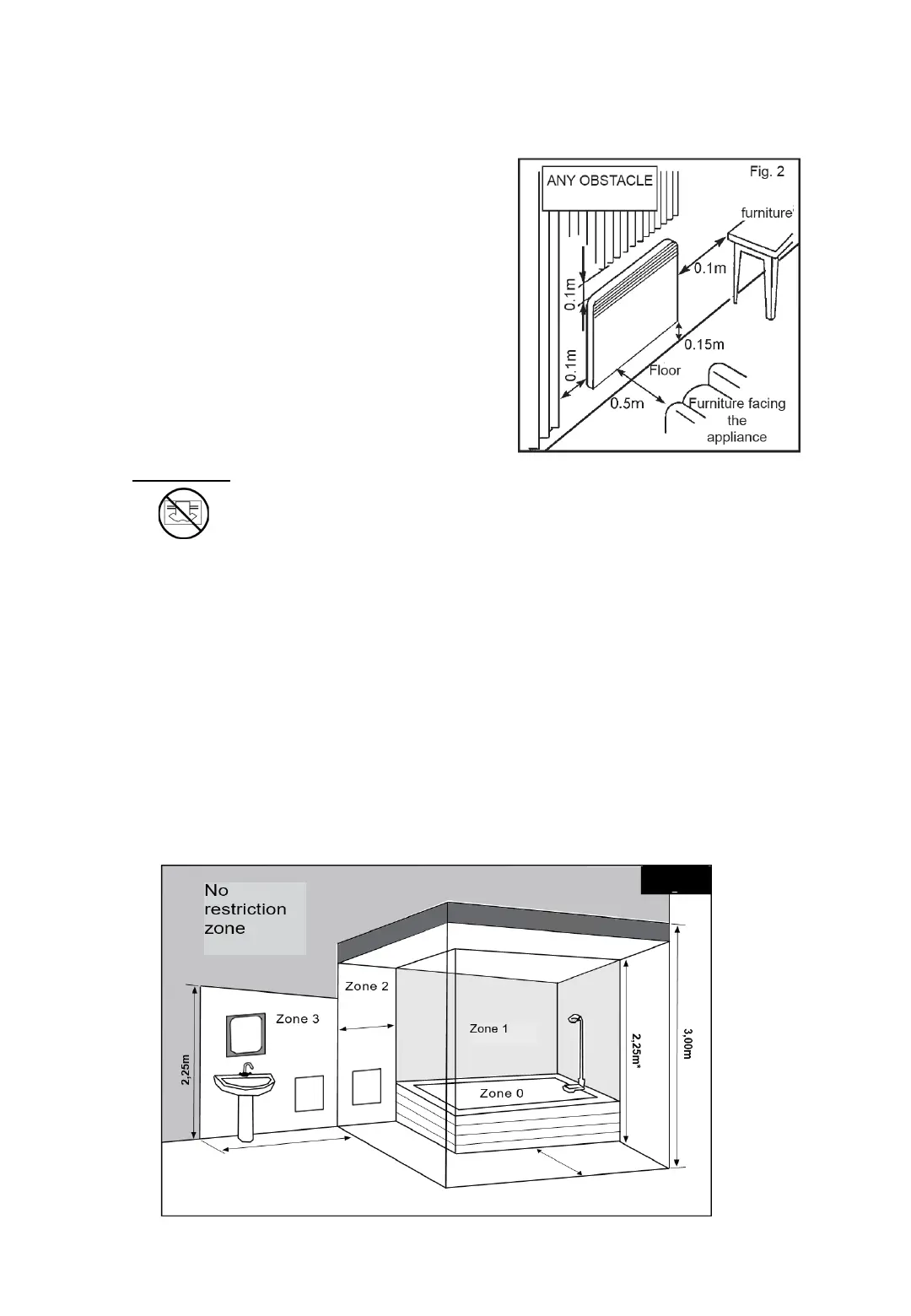

Fig. 3
