2. INSTALLATION
RECOMMENDATION FOR WALL INSTALLATION
This heater is sold ready for DIY installation, with wall bracket and flexible cord
supplied. To remove the wall bracket from the heater you need to push down on
the spring-loaded clips located at the top of the bracket. This can be done by

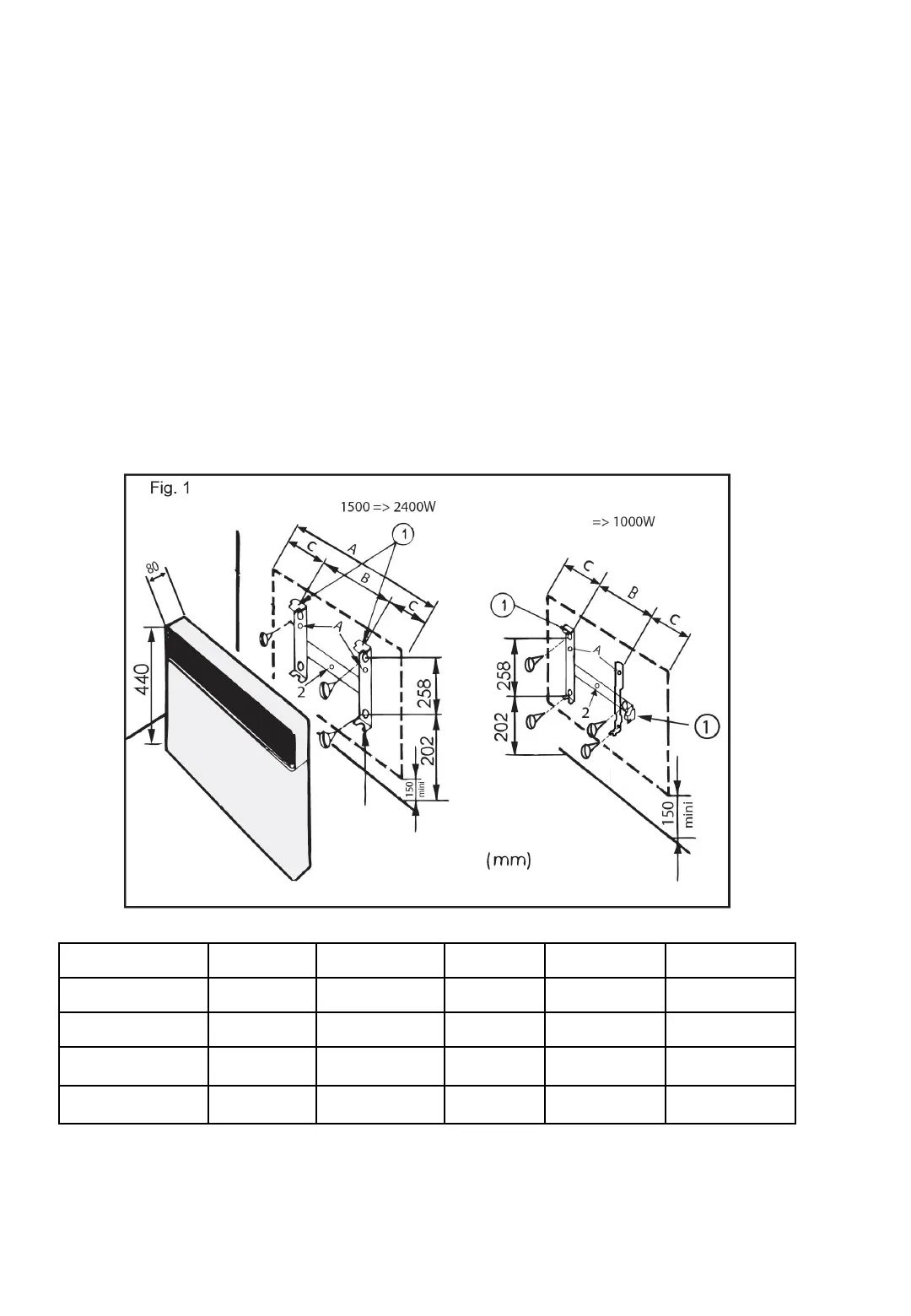

using your fingers or, if preferred, a screwdriver (No: 1 Fig.1). Fit the wall bracket
to the wall with suitable fixing method according to the surface you mount the
heater on (note: fixings not included). Place the heater on to the bracket and clip
into position.
Note: To centre your appliance laterally on the wall, use the hole marked 2.
The heater must not be located immediately below a socket outlet (as per
requirement of Clause 7.12 of AS/NZS 60335.2.30).
Model Power (W) Height (mm) A (mm) B (mm) C (mm)
7358-3TPRO 1000 440 420 208 106
7358-5TPRO 1500 440 580 178 201
7358-7TPRO 2000 440 745 320 210
7358-8TPRO 2400 440 900 405 248
