1200 RH-99 / 1200b RH-100 / 1208 RH-105 / 1208b RH-106
Page (22) ISSUE 2
Service Manual Level 1&2

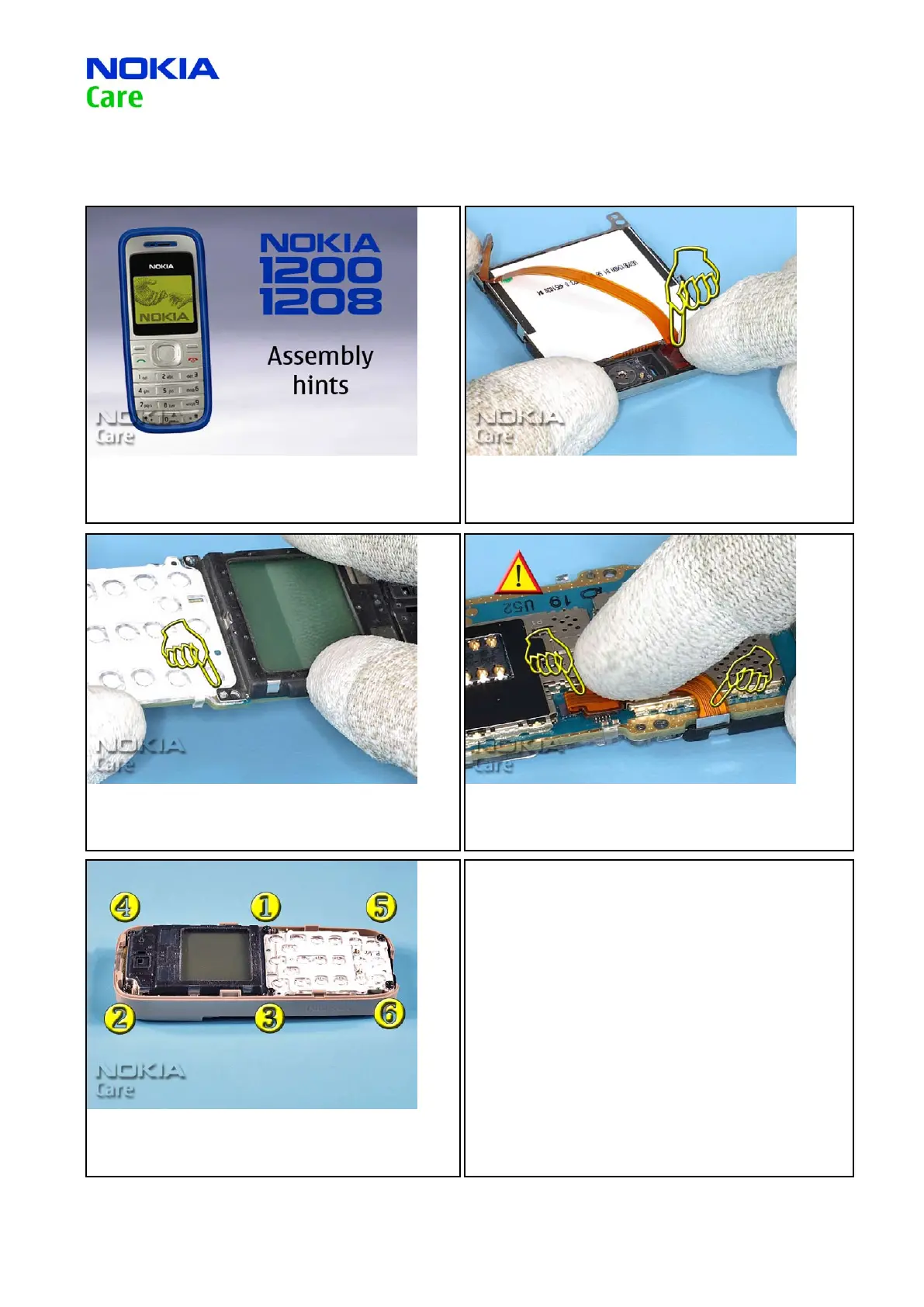

ASSEMBLY HINTS 13.
1. Nokia 1200 Assembly Hints.
2. Gently connect the FPC LINK to the LCD connector.
3. Align the UI SHIELD with the guide pin of the KEYMAT
LIGHTGUIDE ASSY.
4. Ensure that the FPC LINK FOR LCD is positioned correctly onto
the PWB and close the connector.
5. Tighten the six screws to the torque of 24Ncm in the order
shown.
To Next Page
