1202 RH-112 RH-113
Service Manual Level 1&2
ISSUE 1
Confidential
Copyright @ 2008 NOKIA. All rights reserved.
14
10. DISASSEMBLY INSTRUCTION
NOTE: Steps 7 to 10 below are only for the clusters which have the 3in1 (speaker/ vibra/ earpiece)
component as a spare part.

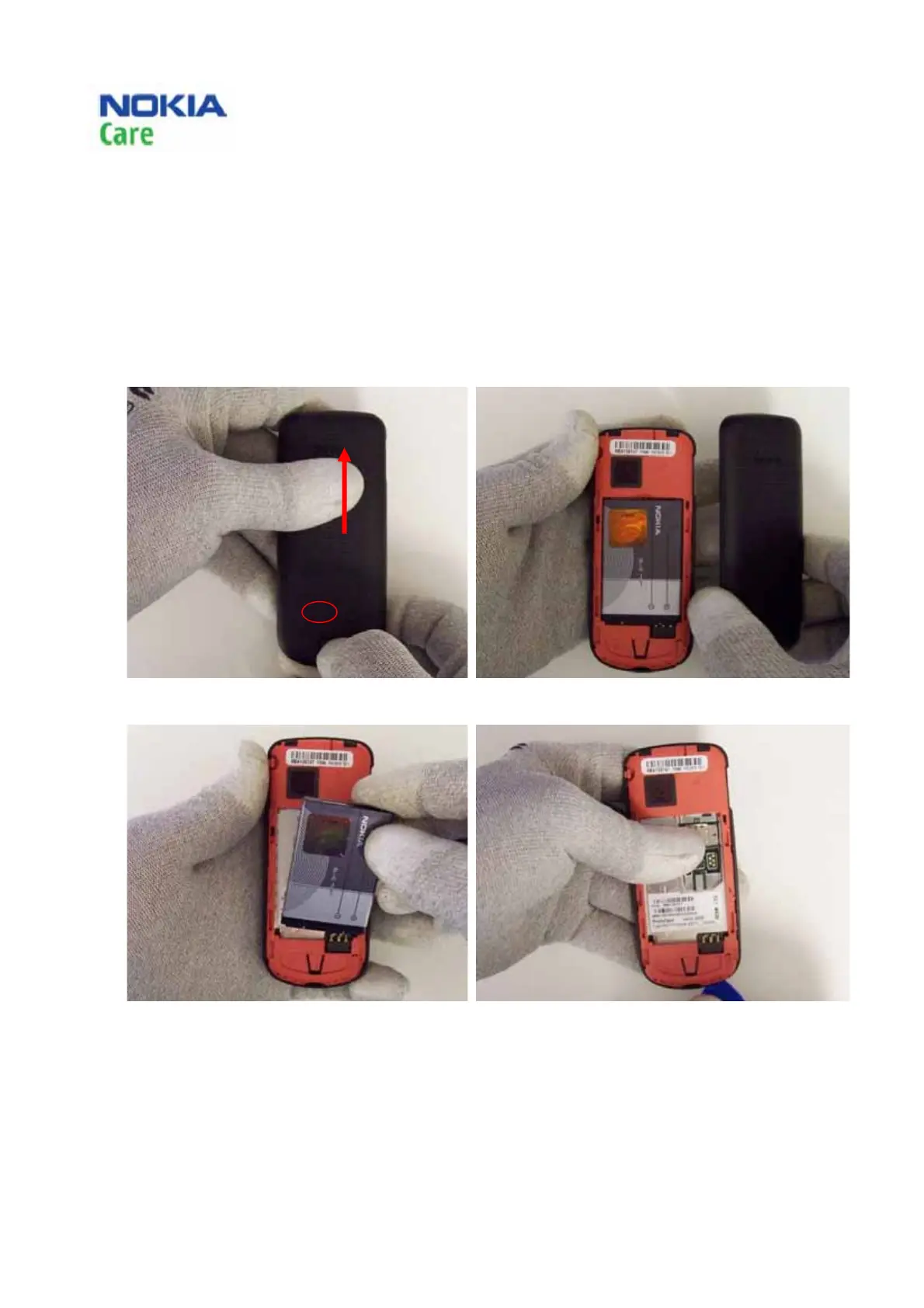

1) Press the release button and slide the B-
cover upwards.
2) Remove the B-cover.
3) Remove the battery. 4) Insert the SRT-6 at the bottom of the phone
and work around the edges.
To Next Page
