Nokia 1680 classic User Manual

11
CONFIDENTIAL
Copyright © 2008 NOKIA. All rights reserved.
1680classic RM-394/RM-395 1681c RH-118
Page
(XX)
ISSUE 2
Service Manual Level 1&2

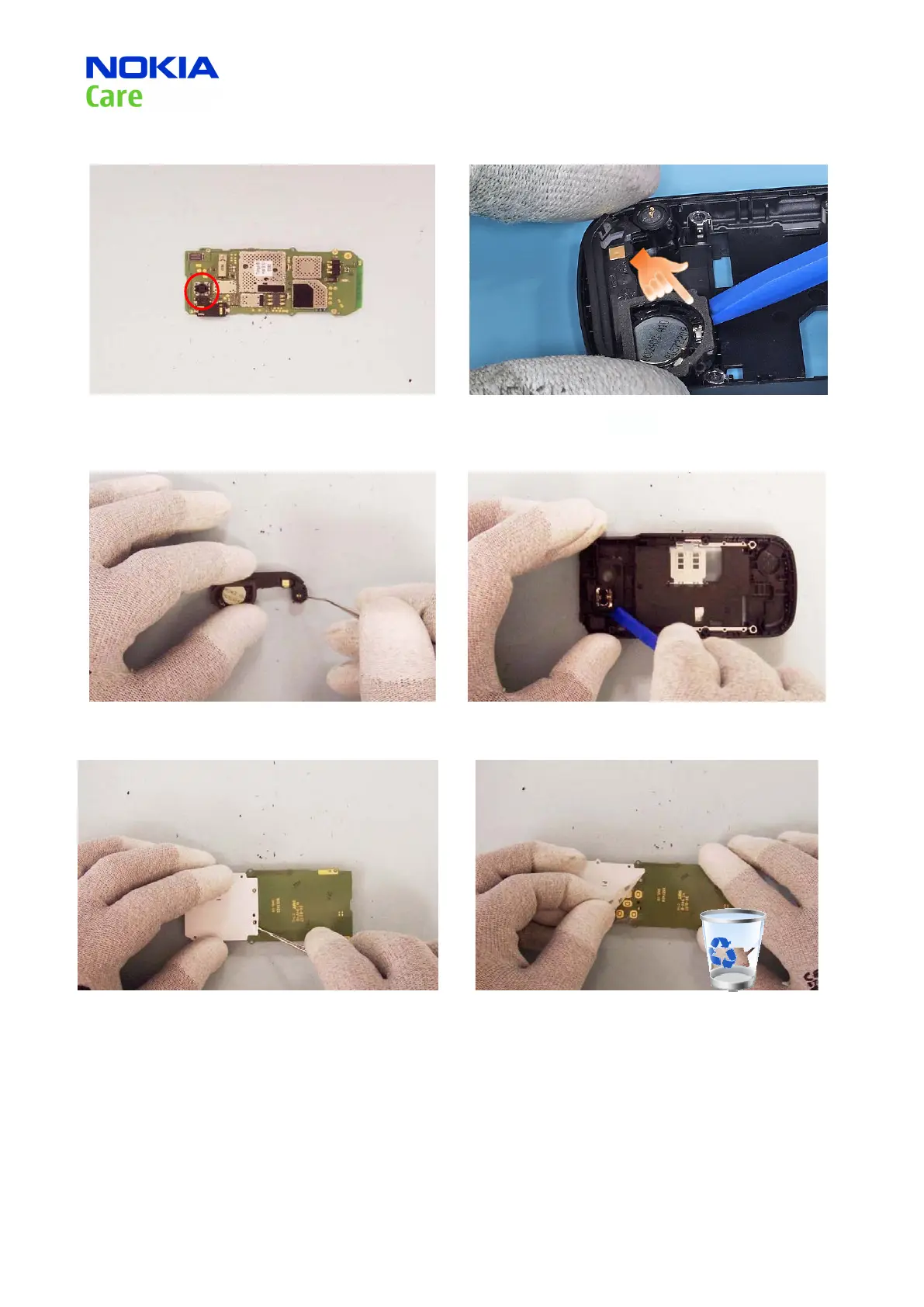

13) Use SS-88 Camera Tool to remove the Camera
Module.
14) Use the SS-93 to remove the Antenna Module.
Always start from the point 1.
15) Use Pick to remove the Microphone. Avoid bending
the spring contacts.
16) Use SS-93 Tool to remove the Earpiece Module.
17) Use Pick to lift the Dome Sheet. 18) Remove the Dome Sheet and discard it.
shown position.
