Service Manual Level 1 and 2
Nokia 206 Dual SIM/2060, Nokia 206
RM-872, RM-873
Version 1.0

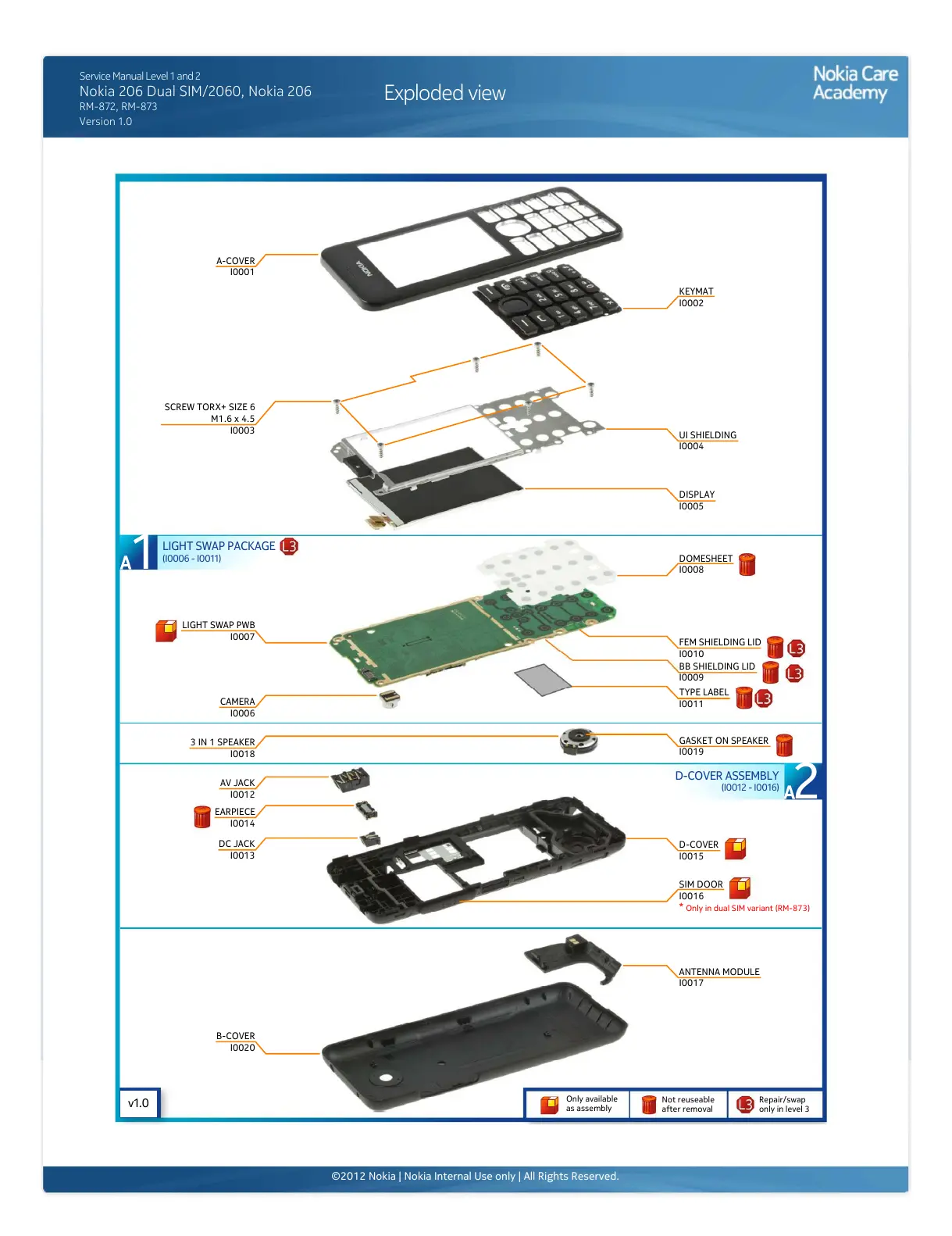

Exploded view
LIGHT SWAP PWB
I0007
B-COVER
I0020
A-COVER
I0001
CAMERA
I0006
AV JACK
I0012
EARPIECE
I0014
DC JACK
I0013
3 IN 1 SPEAKER
I0018
KEYMAT
I0002
DOMESHEET
I0008
SIM DOOR
I0016
* Only in dual SIM variant (RM-873)
UI SHIELDING
I0004
DISPLAY
I0005
TYPE LABEL
I0011
GASKET ON SPEAKER
I0019
D-COVER
I0015
ANTENNA MODULE
I0017
BB SHIELDING LID
I0009
FEM SHIELDING LID
I0010
SCREW TORX+ SIZE 6
M1.6 x 4.5
I0003
LIGHT SWAP PACKAGE
(I0006 - I0011)
1
D-COVER ASSEMBLY
(I0012 - I0016)
2
v1.0
Only available
as assembly
Not reuseable
after removal
Repair/swap
only in level 3
©2012 Nokia | Nokia Internal Use only | All Rights Reserved.
All manuals and user guides at all-guides.com

Other manuals for Nokia 206

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Nokia 206 and is the answer not in the manual?

Nokia 206 Specifications

General IconGeneral
Display typeLCD
Display diagonal2.4 \
Display resolution320 x 240 pixels
Display number of colors65536 colors
Internal memory64 MB
Flash card supportYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size32 GB
Digital zoom4 x
Photo effectsNegative film, Sepia
White balanceAuto, Daylight, Fluorescent
Rear camera resolution1280 x 960 pixels
Image formats supportedEXIF, JPG
Rear camera resolution (numeric)1.3 MP
WAP2.0
Data networkEDGE, GPRS, GSM
GSM bands supported900, 1800 MHz
SIM card capabilitySingle SIM
GPRS multislot class12
Bluetooth version2.1+EDR
Headphone connectivity3.5 mm
Headphone outputs1
Email protocolsIMAP4, POP3, SMTP
Multimedia Messaging Service (MMS)Multimedia Messaging Service (MMS) is a standard way to send messages that include multimedia content to and from a mobile phone over a cellular network
Maximum frame rate15 fps
Ringer typeMP3
Audio formats supportedAAC, AMR, MP3, MP4, WMA
Battery typeBL-4U
Talk time (2G)20 h
Battery capacity1100 mAh
Standby time (2G)680 h
Continuous audio playback time41 h
Subscription typeNo subscription
Product colorBlack
Volume controlDigital
Form factorBar
Personal info management (PIM)Alarm clock, Calendar, Converter, Events reminder, To-do list
Weight and Dimensions IconWeight and Dimensions
Depth12.4 mm
Width49.4 mm
Height116 mm
Volume64 cm³
Weight91 g
