Nokia 3.1 Plus User Guide
9. Volume keys
10. Power/Lock key
11. USB connector
12. Microphone
13. Loudspeaker
Some of the accessories mentioned in this user guide, such as charger, headset, or data cable,
may be sold separately.
Parts and connectors, magnetism
Do not connect to products that create an output signal, as this may damage the device. Do
not connect any voltage source to the audio connector. If you connect an external device
or headset, other than those approved for use with this device, to the audio connector, pay
special attention to volume levels.
Parts of the device are magnetic. Metallic materials may be attracted to the device. Do not
place credit cards or other magnetic stripe cards near the device for extended periods of time,
since the cards may be damaged.
INSERT OR REMOVE THE SIM AND MEMORY CARD

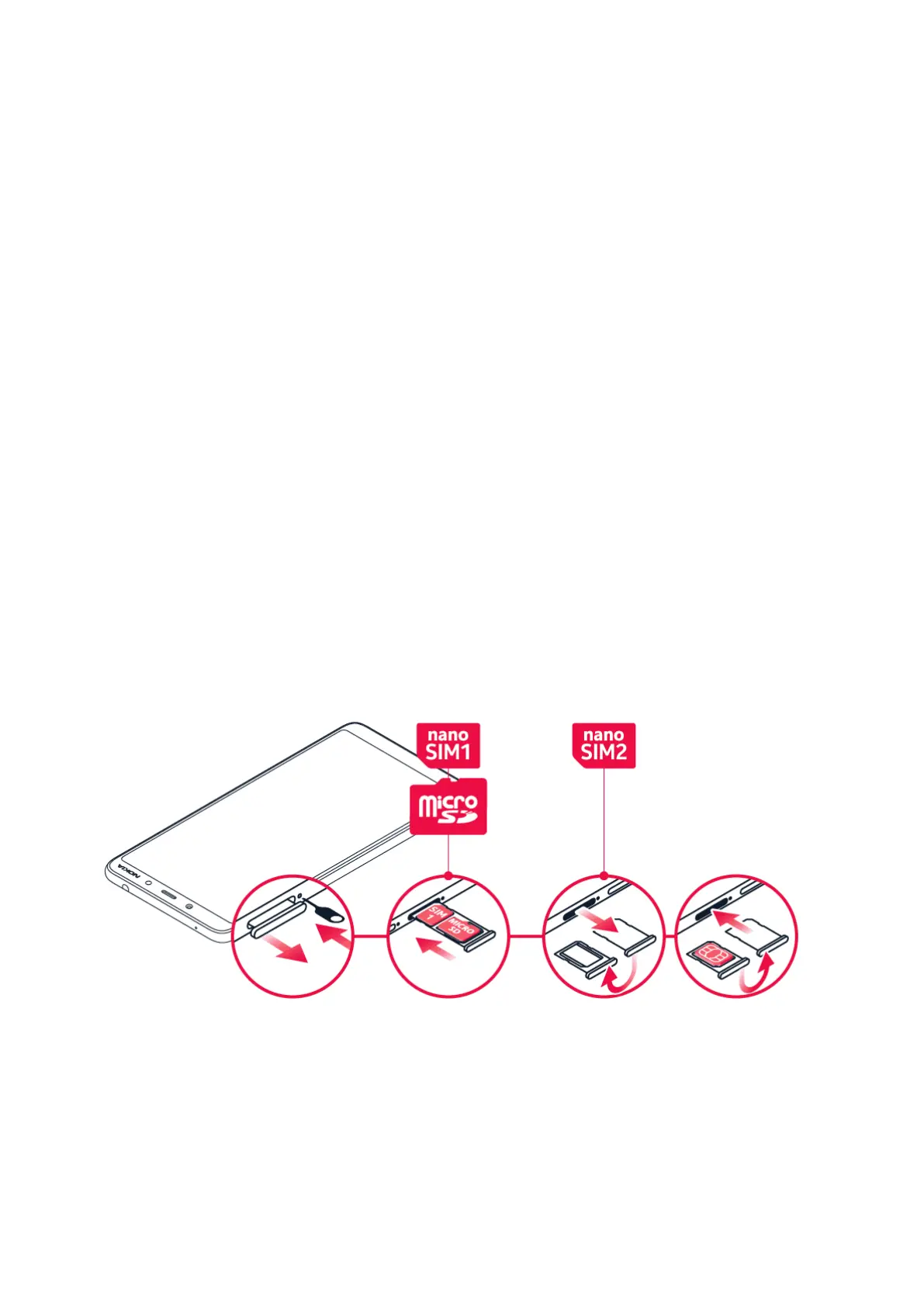

Insert SIM and memory card
1. Open the SIM and memory card tray: push
the tray opener pin in the tray hole, and
slide the tray out.
2. Put a nano-SIM and a memory card on the
tray with the contact areas face down.
1
3. If you have a second SIM card, open the
SIM card tray: push the tray opener pin in
the tray hole and slide the tray out.
4. Turn the tray upside down and put a nano-
SIM card on the tray with the contact area
© 2019 HMD Global Oy. All rights reserved. 8
