AM-suppression tuning in NHM-2/5/6
Due to a software failure in the latest NHM-2/5/6 DLL 311.15.00 it is necessary to run AM-suppression tuning in a special way,
as described in the following pages. In case you do not use this procedure the AM-suppression tuning values will not be saved and
WinTesla will not recognize the new values. So no warning message will be performed.

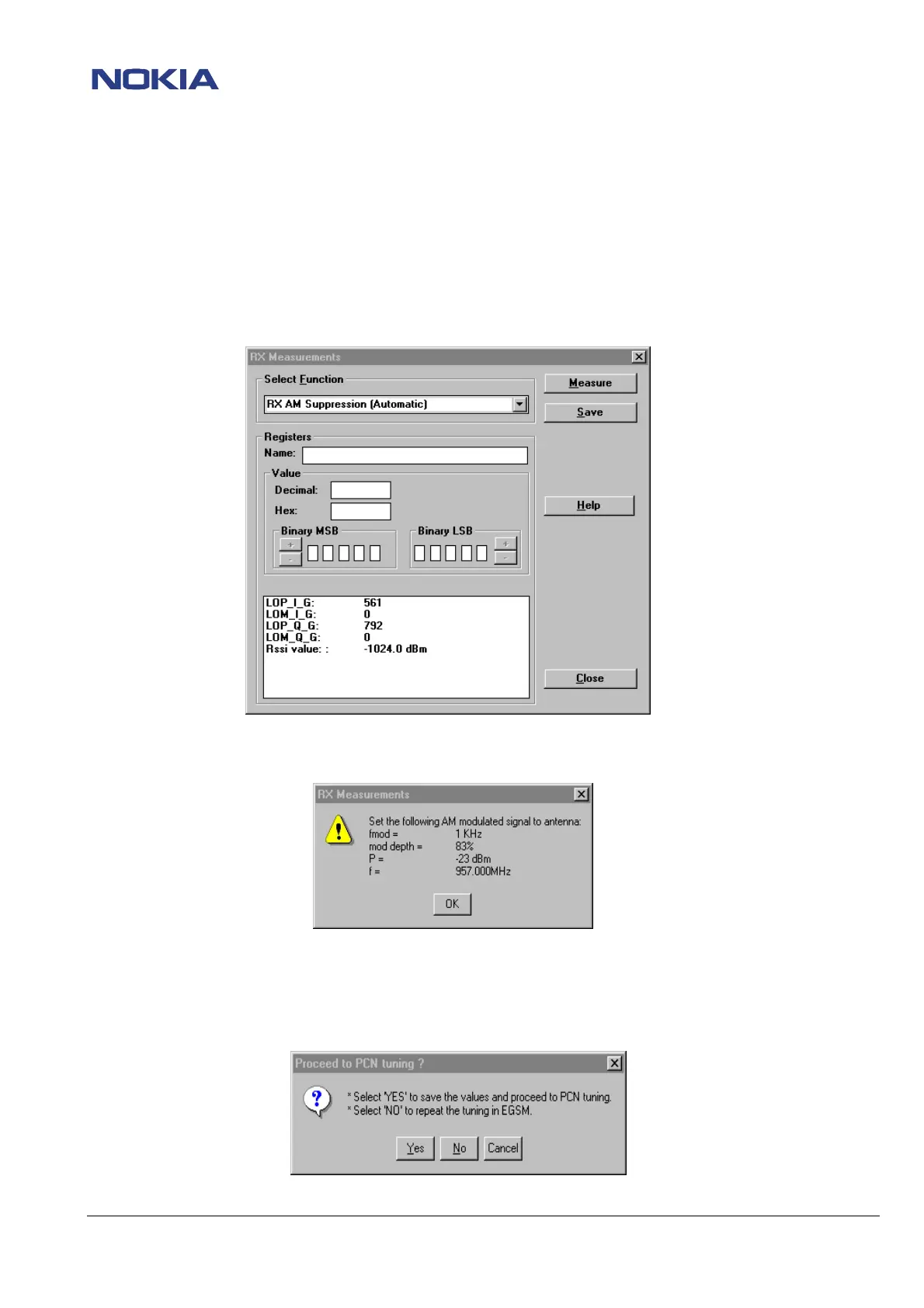

In the first step you have to activate AM-suppression tuning as usual (Tuning/AM Suppression…):
Click on the “Measure” button to get the next window, which shows the signal values you have to adjust, then click “OK”.
After correct AM-suppression tuning in EGSM900 (RSSI-level shown in the measurement window is < -86dBm) you get the
message to proceed the tuning in PCN. At this point do not press “YES” as, differently from the message box, the tuning values
will not be saved by choosing this button.
Click the button “Cancel” so that only the window shown on next page is performed on the screen.
