STEP 6:

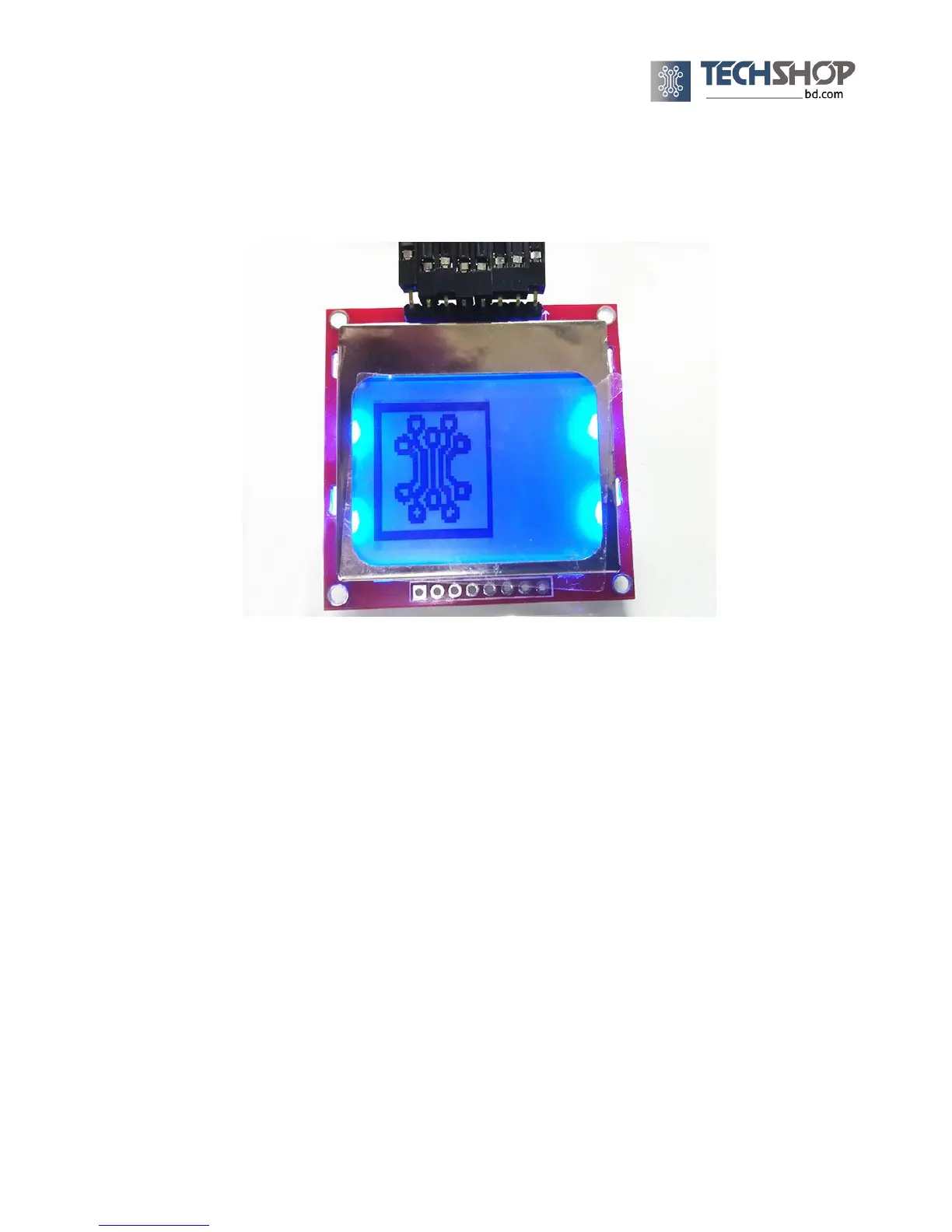

Upload the code to arduino. If everything you
’
ve done is correct, you
’
ll see your image on the
LCD.
6
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Nokia 5110 LCD and is the answer not in the manual?
Ask a question
Nokia 5110 LCD Specifications
General
Resolution
84 x 48 pixels
Backlight
LED
Controller
PCD8544
Operating Voltage
2.7V to 3.3V
Interface
SPI
Display Type
Monochrome
