Nokia 6030 Service Schematics

Mobilchips
1) 32.768kHz at B2200 in
8) DBUSCLK at J2811
10) DBUSENX at J2813
5) CBUSCLK at J2804
6) CBUSDA at J2805
7) CBUSENX at J2806
4) Sleepclock at J2802
3) RFCLK at J7621
14) RFBUSDA at J7609
15) RFBUSCLK at J7610
16) TXIQ at J7600-J7603
13) RFBUSX at J7608
9) DBUSDA at J2812
11) VSIM at C2208
12) RXIQ at J7600-J7603
17) TXC GSM900 PL19 at R7732
20) 26MHz at B7600
21) TX signal at R7709/C7709
22) TX signal R7703
23) RX signal at R7606
24) RX signal at R7607/L7607
18) TXC GSM900 PL5 at R7732
19) TXP at J7604
2) 32.768kHz at B2200 in
2
1
13
15
21
23
14
24
16
12
19
3
11
10
9
7
4
6
8
5
22
20
18
17
VR2=2.8V
VR5=2.8V
VANA=2.8V
VR1=2.8V
VR3=2.8V
VR4=2.8V
VIO=1.8V
VSIM
VCORE=1.36V
VFLASH1=2.8V
VFLASH=2.8V
VIO=1.8V
VLED-=3,6V
VLED+=7.5V
Version: 3.0Version: 3.0 20.09.200520.09.2005
Board version:
1mf_51a/1ny_52b
Board version:
1mf_51a/1ny_52b
Customer Care / Service & Support Readiness / Competence Transfer Team
Copyright © 2005 NOKIA Only for training and service purposes
Customer Care / Service & Support Readiness / Competence Transfer Team
Copyright © 2005 NOKIA Only for training and service purposes
Page 6(8)Page 6(8)

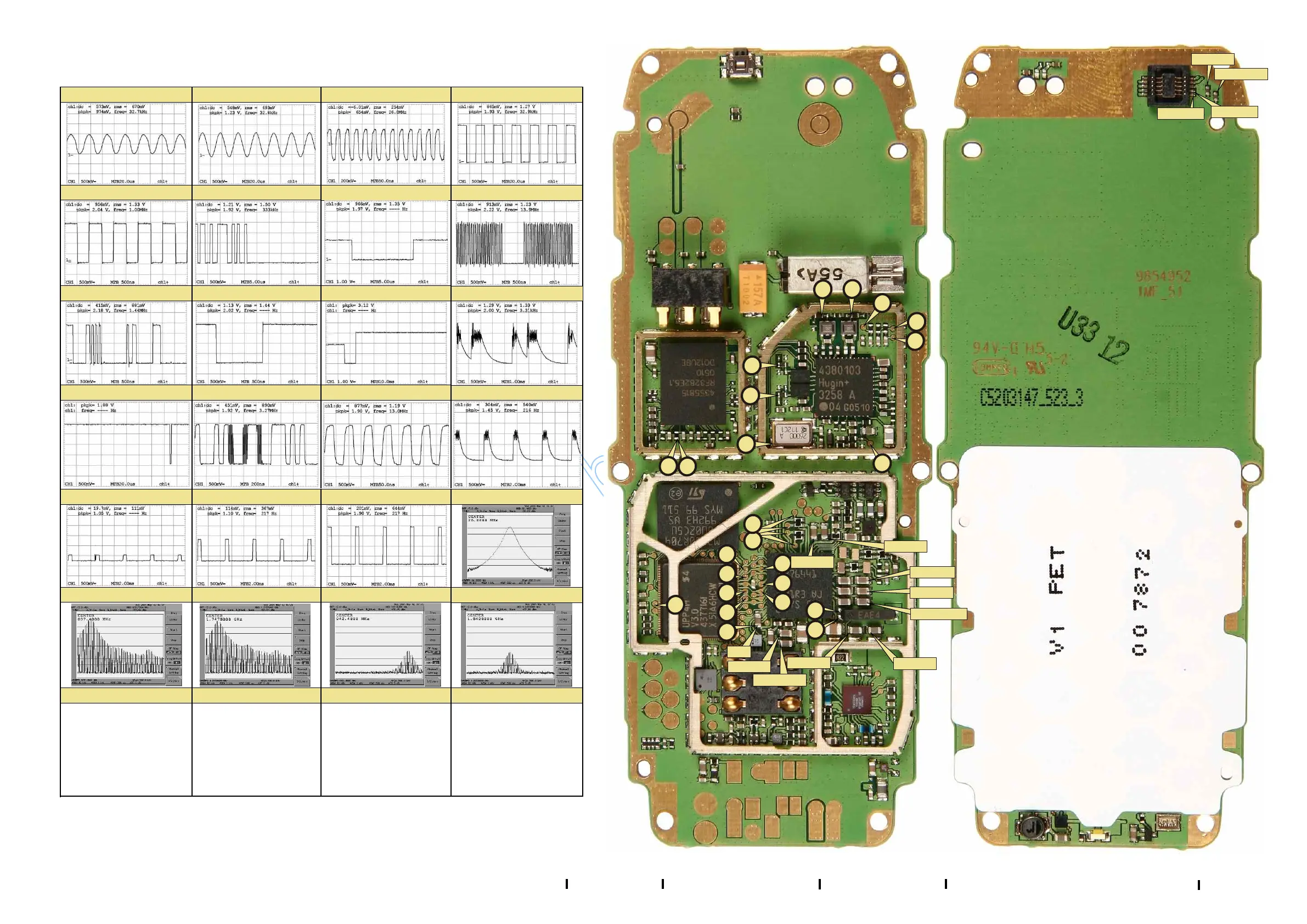

Signal overviewSignal overview
6030 RM-74 EU version
RM-75 US version
6030 RM-74 EU version
RM-75 US version
