10
CONFIDENTIAL
Copyright © 2007 NOKIA. All rights reserved.
6110 Navigator RM-122
Page (44) ISSUE 4
Service Manual Level 1&2

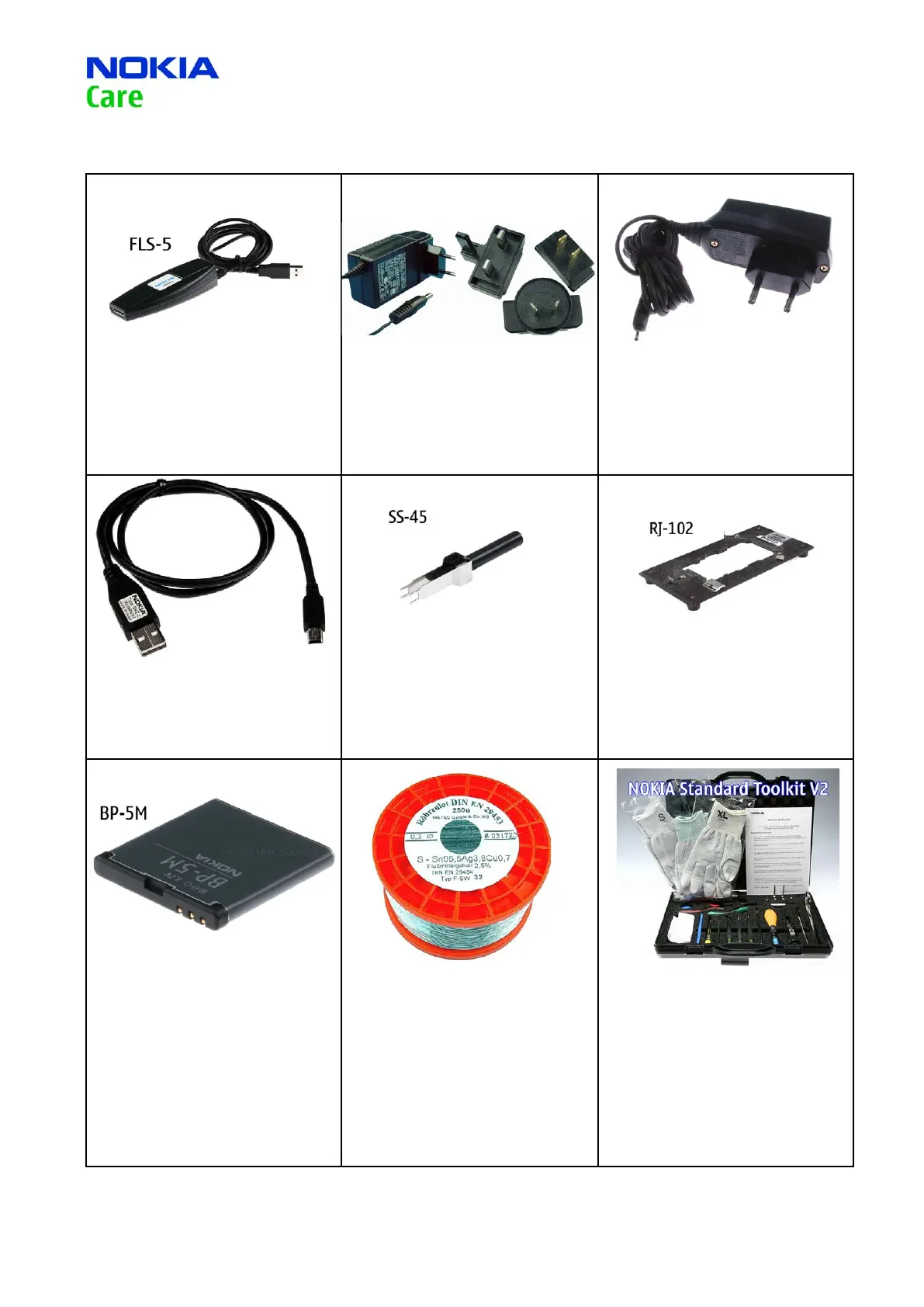

SERVICE DEVICES11.
FLS-5 incl. ACF-8, Driver and User
Guide
Dongle and flash device incorporated
into one package, developed specifi-
cally for POS use.
ACF-8
Universal Power Supply is used to
power FLS-4S.
Travel Charger AC-4
Small and lightweight charger for
fast charging of your phone battery.
DKE-2
Service Cable to connect the PC with
the mini USB connector.
SS-45
Camera removal tool. One side is for
disassembly, the other side for as-
sembly.
RJ-102
Soldering Jig
Lead-free Solder Wire
Mandatory for lead-free products
(Level 2 only).
0772040
NMP Standard Toolkit (V2)
For more informations refer to the
Service Bulletin (SB-011) on NOKIA On-
line.
Supplier or manufacturer contacts for
tool re-order can be found in “Recom-
mended service equipment” docu-
ment on NOKIA Online.
Internal Battery BP-5M
Inserted under the back cover, this
Li-Ion battery provides power in a
lightweight package.
