6110 Navigator RM-122
Page (44) ISSUE 4
Service Manual Level 1&2

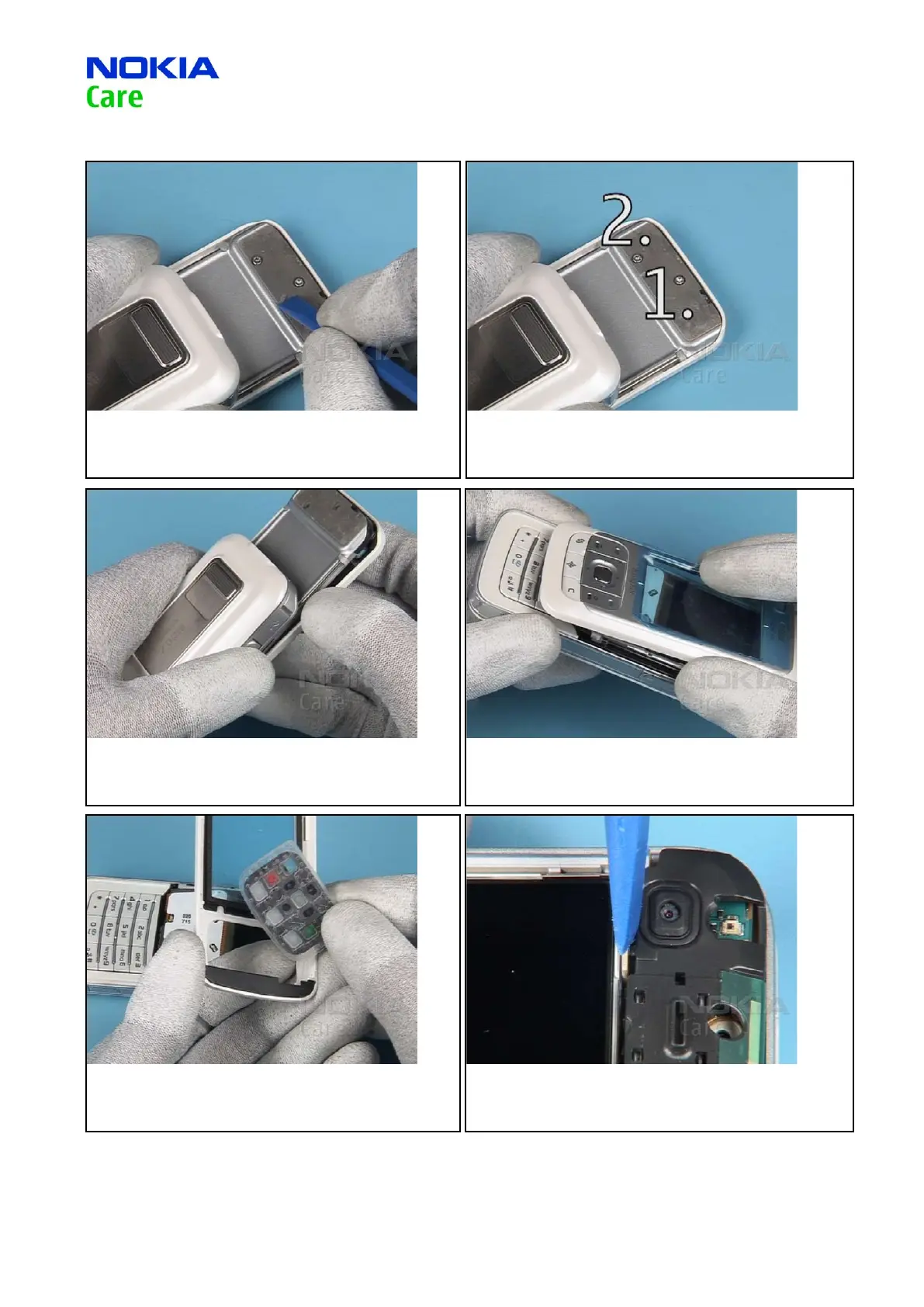

7. Remove the adhesive residues before reassembly.
8. Unscrew both screws. It is not necessary to remove the
2nd screw if only A-COVER or FUNCTIONAL KEYMAT needs to be
replaced.
9. Open the clips of the A-COVER.
10. Shift it to bottom side direction and lift it up.
11. The FUNCTION KEYMAT can be removed easily.
12. Unlock the clips of the GPS ANTENNA ASSEMBLY.
