CONFIDENTIAL
Service & Analysis Center Europe
Training Team
version 1.0 / 19.10.1999 Page 28 of 41
Elastomer
• Change Elastomer if contrast disappears, missing segments

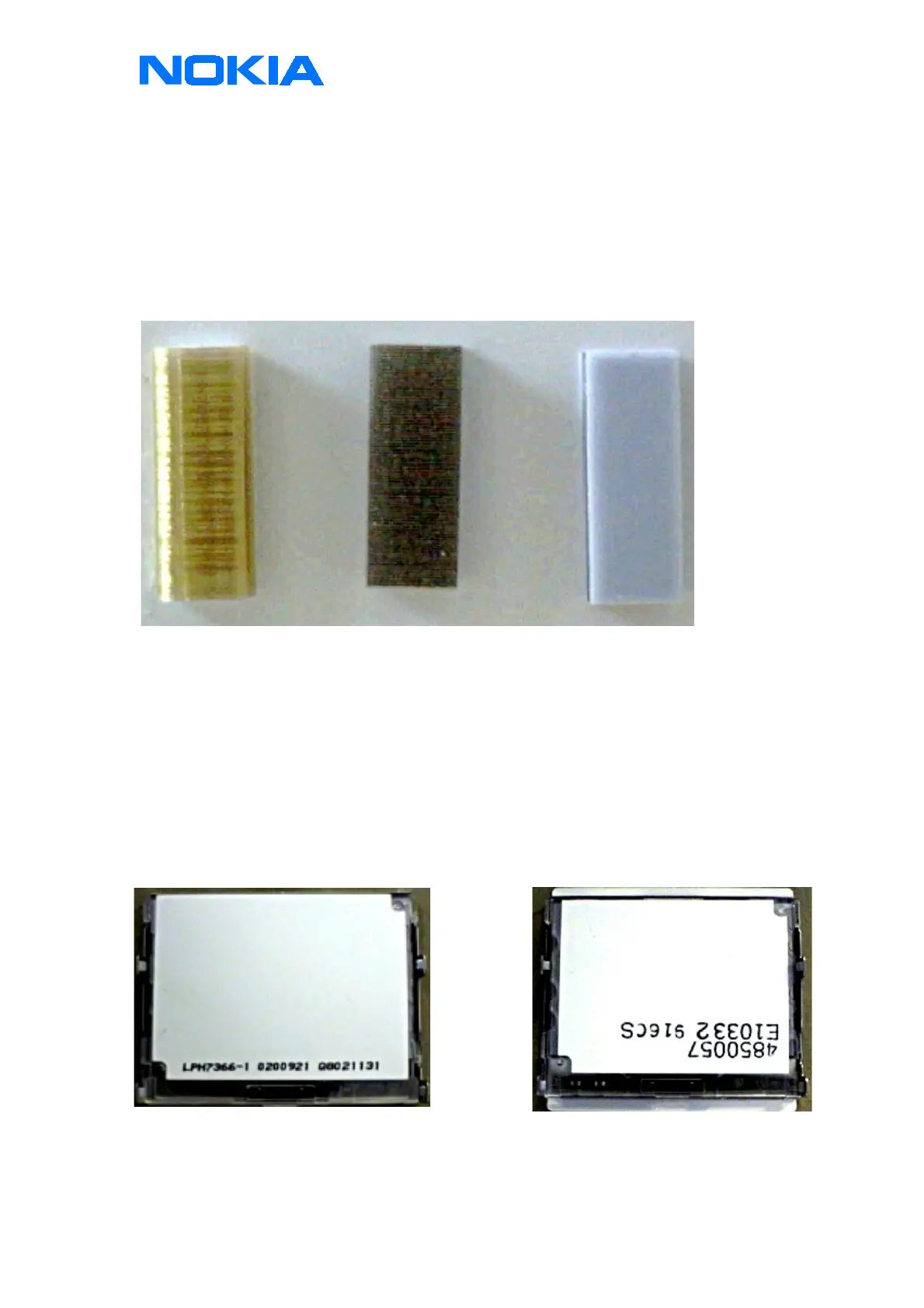

Figure 8: different types of Elastomer
LCD / UI Modul
• Change LCD if elastomer change doesn't help
• The PCB version UE4_13 makes better contact between PCB and the Elastomer, pad size of the LED's are
modifided
Figure 9: different types of LCD's
Philips LCD Seiko LCD
N0 capacitors capacitors inside
