6212 classic RM-396
Service Manual Level 1&2
ISSUE 1
Confidential
12

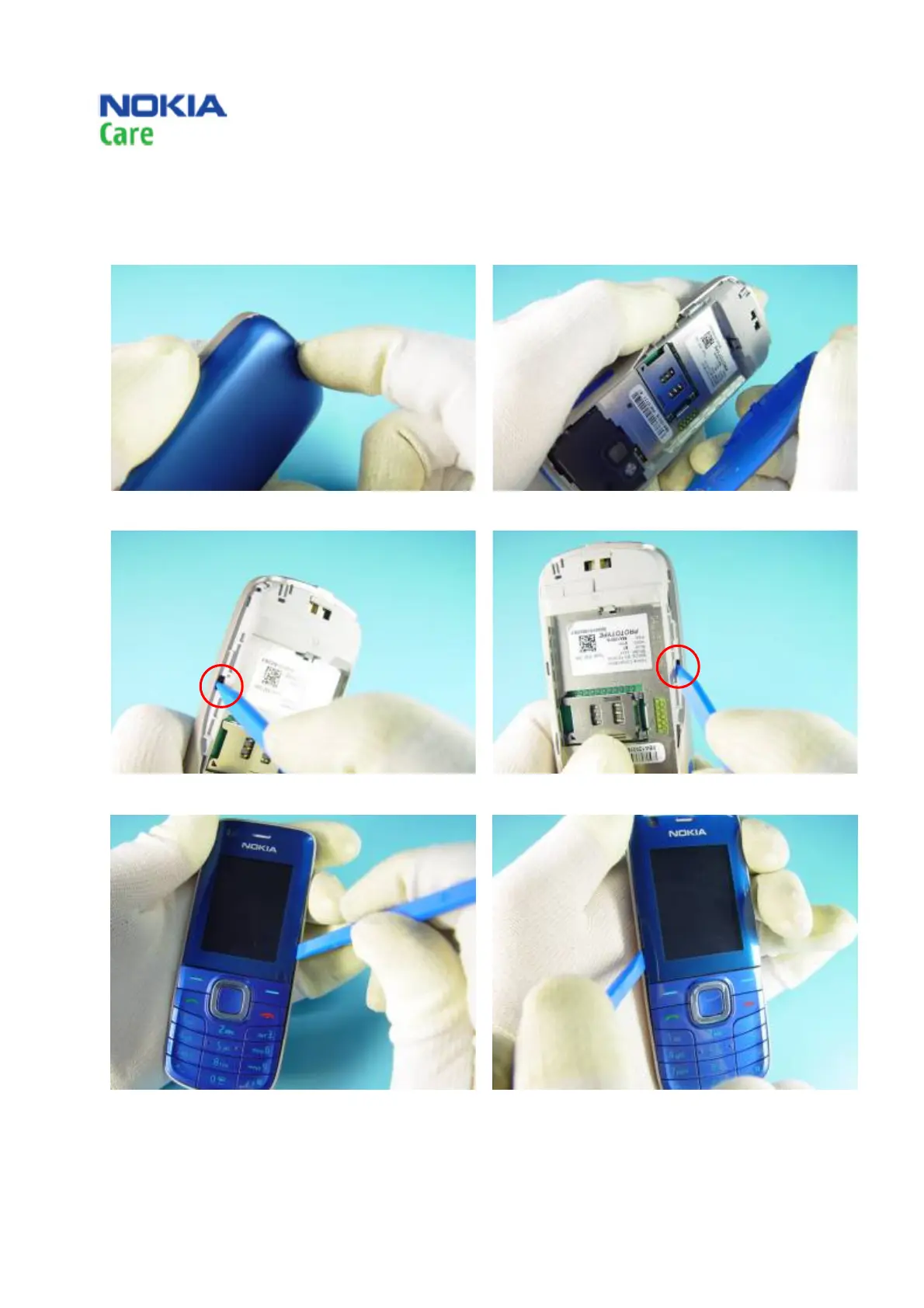

10. DISASSEMBLY INSTRUCTION
1) Release the B COVER. 2) Remove the B COVER.
3) Open the first clip of the KEYMAT.
4) Open the second clip of the KEYMAT.
5) Open the first clip of the DISPLAY WINDOW
ASSY.
6) Open the first clip on the other side of the
DISPLAY WINDOW ASSY.
Copyright @ 2008 NOKIA. All rights reserved
