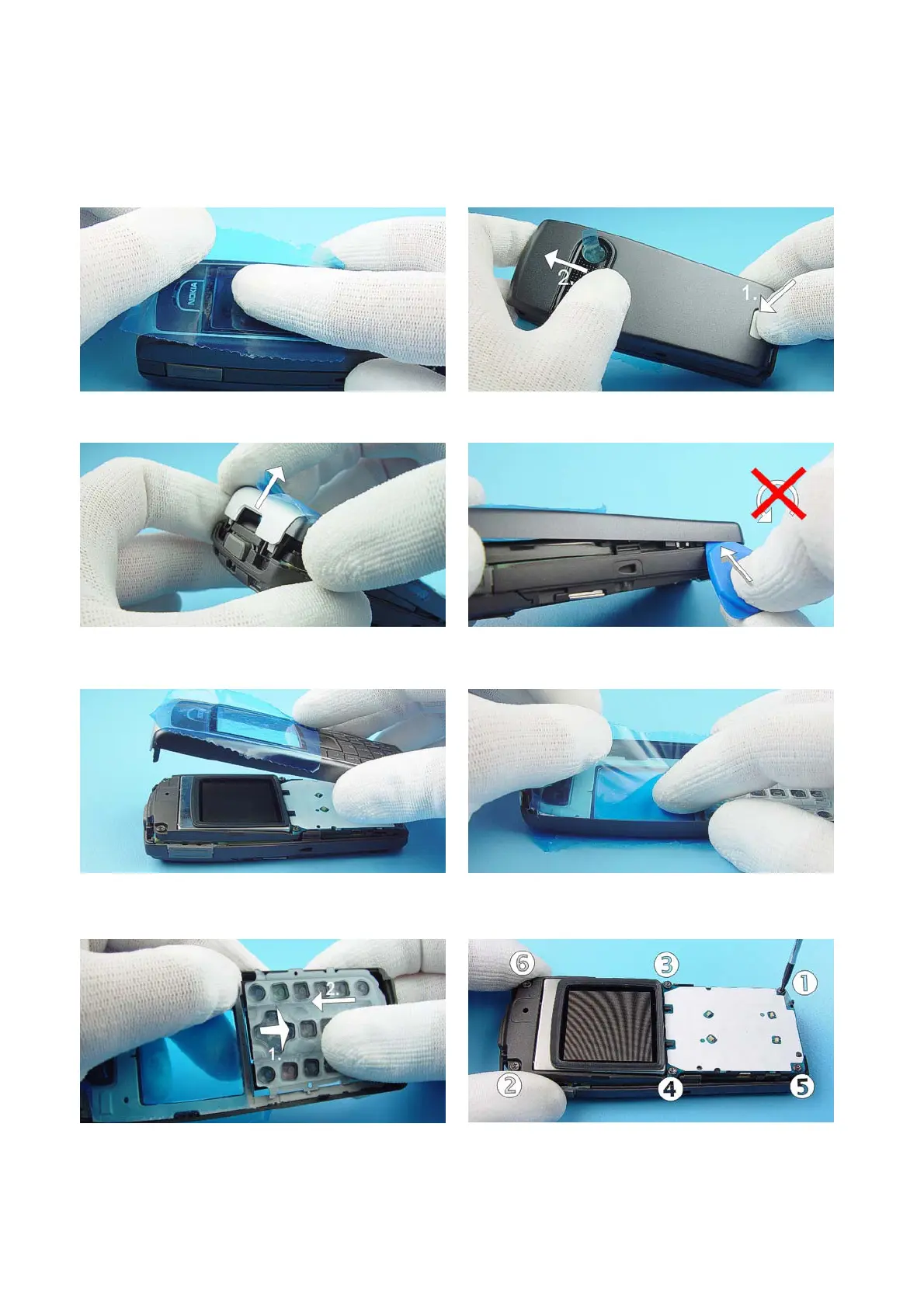

8. DISASSEMBLY INSTRUCTIONS
If not already done protect Window with a film to
avoid dust and scratches.
To remove the B-Cover, press the Release Key and shift
B-Cover to the top.
Lift the A-Cover’s topside carefully.
Use the SRT-6 to separate the Covers as shown in the
picture above. Do not twist this tool to prevent
damages at the covers.
Now, the A-Cover can be removed.
Always protect the inner side of the Window with a
film.
To remove the Keymat press it from the front side and
push it as shown in the picture.
Unscrew the six Torx Plus
®
size 6 screws. For assembly
use the reverse order and a torque of 30Ncm.
Service Manual 6230/i Level 1&2 Copyright © 2004-2005 Nokia Corporation. All rights reserved.
