WW Competence Transfer
CMO Operations & Logistics
MMultimedia Creation & Support CONFIDENTIAL
16.11.2005
15
Service Manual 6280 Copyright © 2005 NOKIA Corporation. All rights reserved.
Approved 3.0
MGR
Page (27)

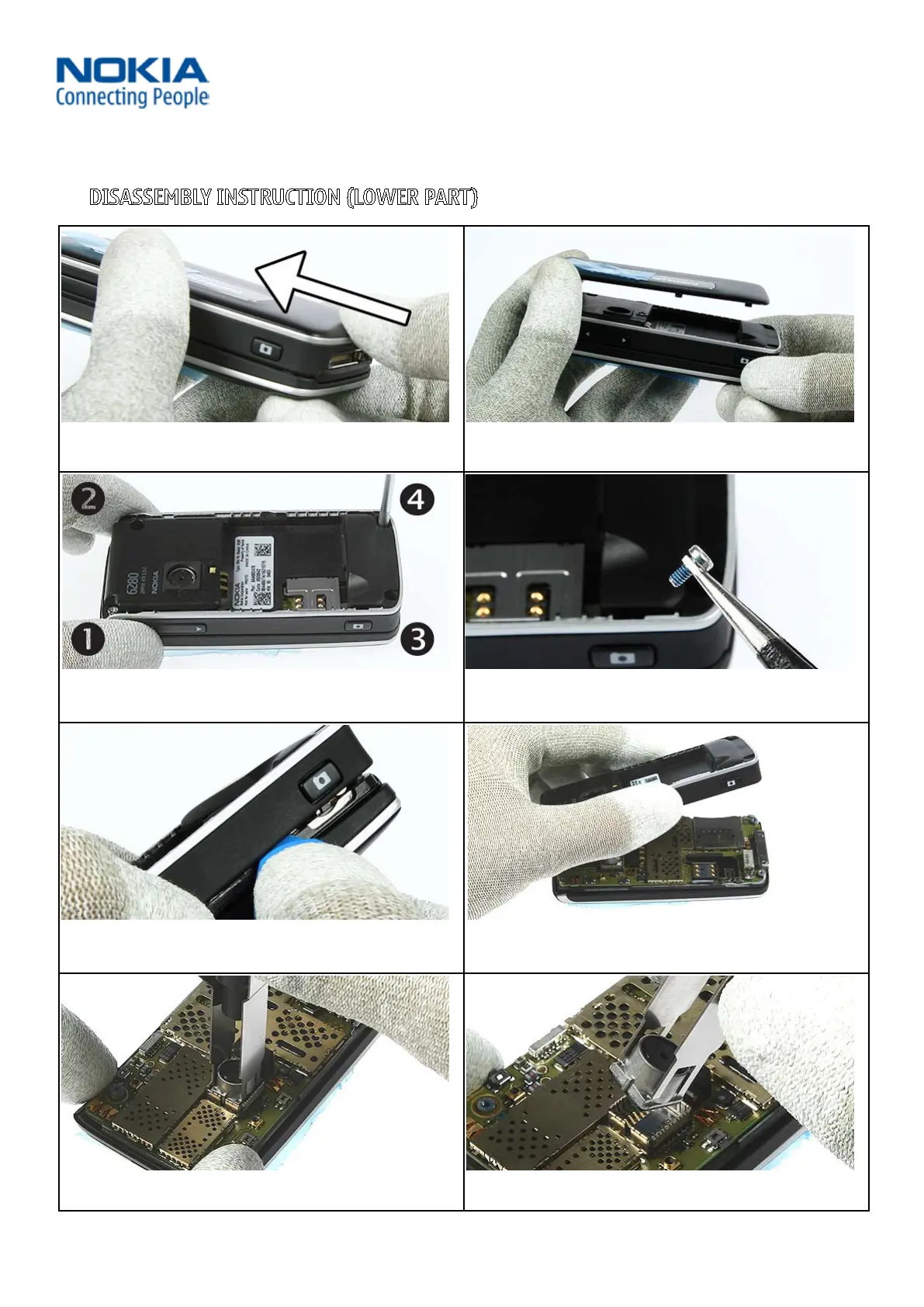

1.) Open the B-Cover by pressing it from the bottom side.
2.) Ensure that no battery is inserted.
3.) Unscrew all Torx size 6 plus screws in the shown order.
For Assembly use the reverse order and a torque of 25 Ncm.
4.) Once removed, the screws can’t be used again. Always
use new screws for assembly.
5.) Release the clips of the D-Cover. 6.) Remove the D-Cover.
7.) Remove the SMIA Camera with the SS-45.
8) Mind the correct position while assembling.
DISASSEMBLY INSTRUCTION (LOWER PART)10.
