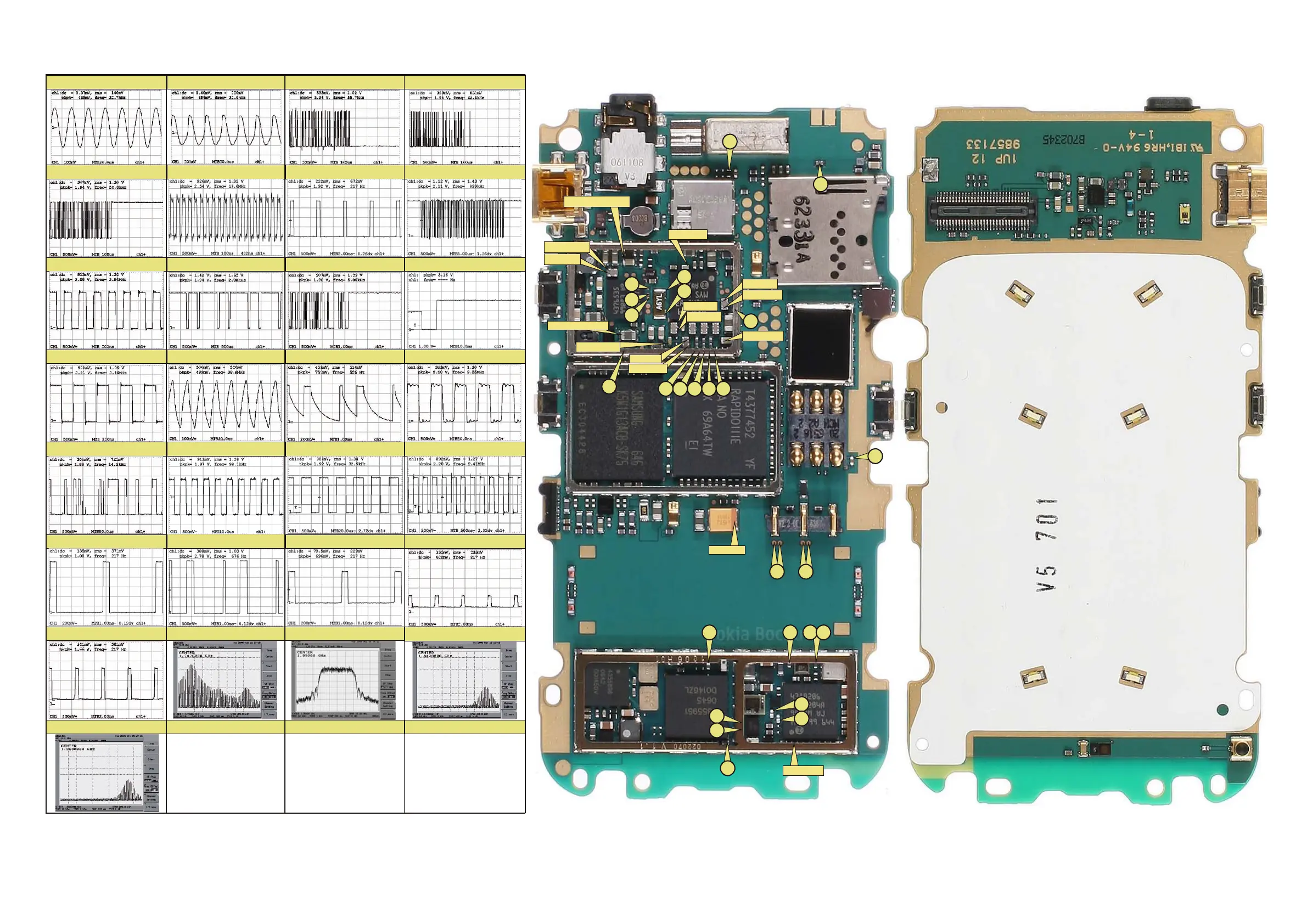

5) SerSelX at J2209
1) 32kHz at B2200 in
4) SerData at J2207
6) TXCCLK at J2210
2) 32 kHz at B2200 out
8) TXCDA at J22127) TXCCTRL at J2211
9) SIMCLK at J2213
10) SIMDA at J2214
12) VSIM1 at C270011) SIMIOC at J2215
13) SMPSClk at J2308
14) RFCLK at J2800, J2801
16) CameraCLK at J5017 15) RX I/Q at J7515, J7517
17) CameraSDA at J5005
18) CameraSCL at J5006
20) AUDCLK at R2071 19) SLEEPCLK at R6038
23) VDET at C7524 24) TXC GSM900 PL19 at L7506
3) SerClk at J2206
22) Vgain GSM850 RX at R7526
21) DAC203 at C7525
25) TXC GSM900 PL5 at L7506
26) TX GSM1800 at L7525 27) WCDMA TX at L7589 28) RX GSM1800 at L7501
29) RX GSM1900 at L75000
30) 31) 32)
1
3
4
VRCP1=4.7V
VR1=2.5V
VDRAM=1.8V
VAUX=2.8V
VANA=2.5V
VIO=1.8V
12.5V if lights on
VBAT=~4V
VREF=1.35V
2
5
6
20
710911 8
12
13
14 15
26 27 24 25
28
29
22
23
19
21
VSIM2=1.8V
VSIM1=3V
VRFC=1.8V
VBUS=5V
VOUT= 2.5V
VCORE=1.05-1.35V
