Nokia 6700 slide - Page 13

Nokia 6700 Slide
RM-576 / RM-577
Service Manual Level 1&2
13 Confidential | Copyright © 2010 Nokia | All rights reserved Version 2.0

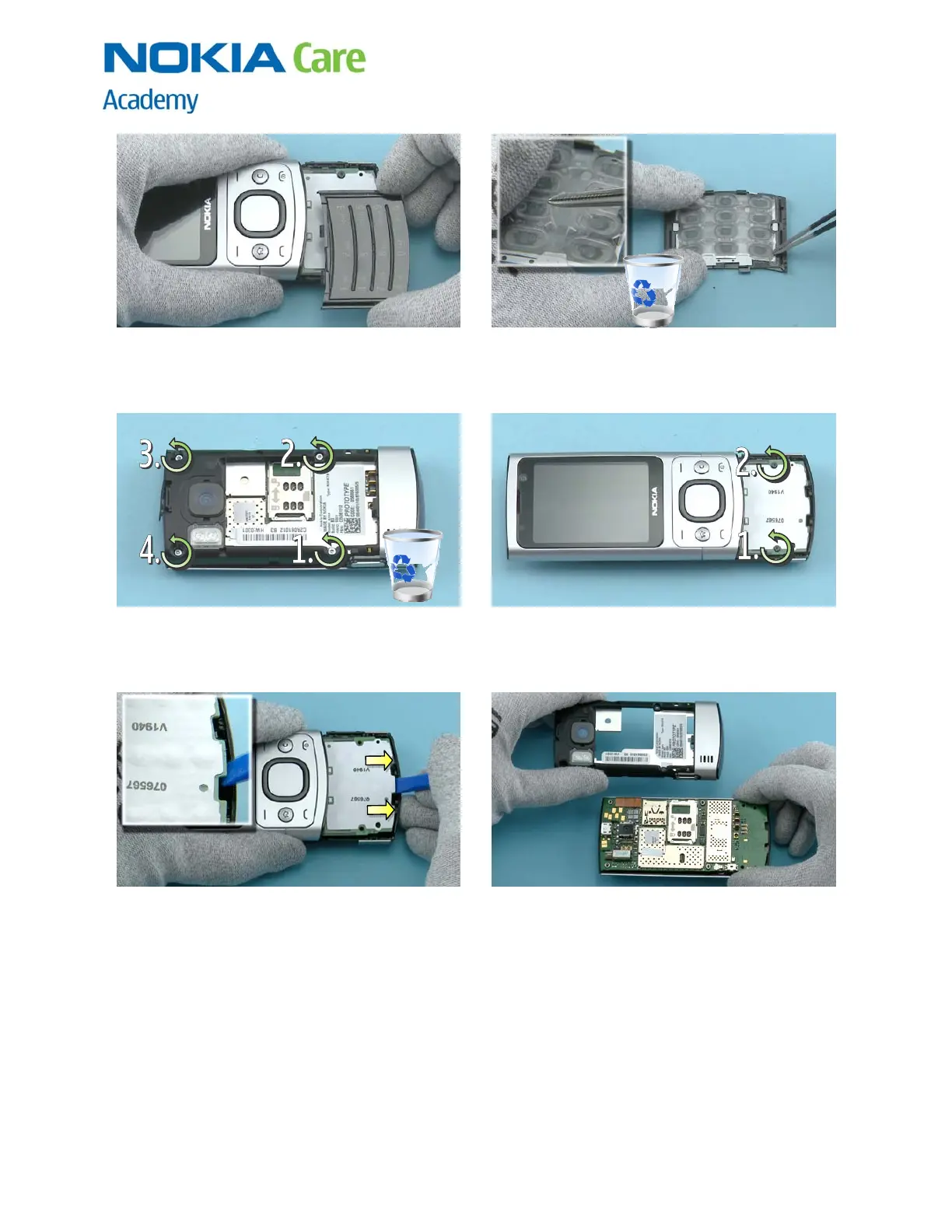

7) Remove the MAIN KEYMAT ASSEMBLY. 8) Use the tweezers to remove the MAIN KEYMAT
ADHESIVE. Do not use it again. Discard it.
9) Unscrew the four TORX+ size 4 screws in the
order shown. Do not use them again. Discard them.
10) Slide the phone open. Unscrew the two TORX+
size 4 screws in the order shown.
11) Detach the two clips holding the engine board
with the SS-93.
12) Close the slide. Lift up and separate the D-COVER
ASSY.
