Nokia 6700 Slide
RM-576 / RM-577
Service Manual Level 1&2
12 Confidential
| Copyright © 2010
Nokia | All rights reserved
Version 2.0

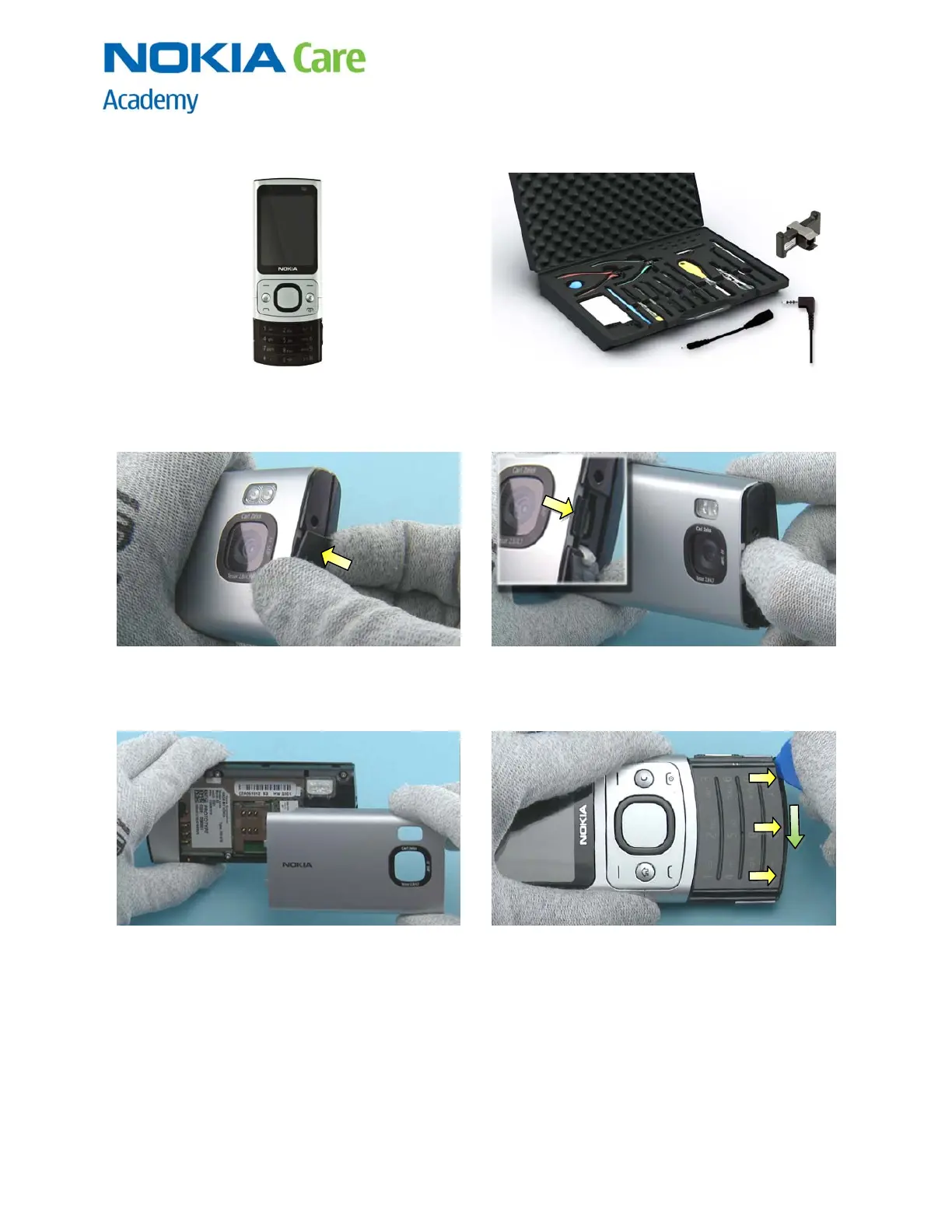

10. DISASSEMBLY INSTRUCTIONS
1) Nokia 6700 Slide disassembly. 2) For disassembling, you will need the Nokia
Standard Tool kit version 2. You will also need an AV
plug, a DC plug and a camera removal tool SS-210
version 2.
3) To release the BATTERY COVER, open the USB
DOOR.
4) Then press the release button shown.
5) Remove the BATTERY COVER. If there is a BATTERY
inserted, remove it also.
6) Slide the phone open. Detach the three shown
clips holding the MAIN KEYMAT ASSEMBLY by sliding
the SRT-6 in the direction shown.
To Next Page
