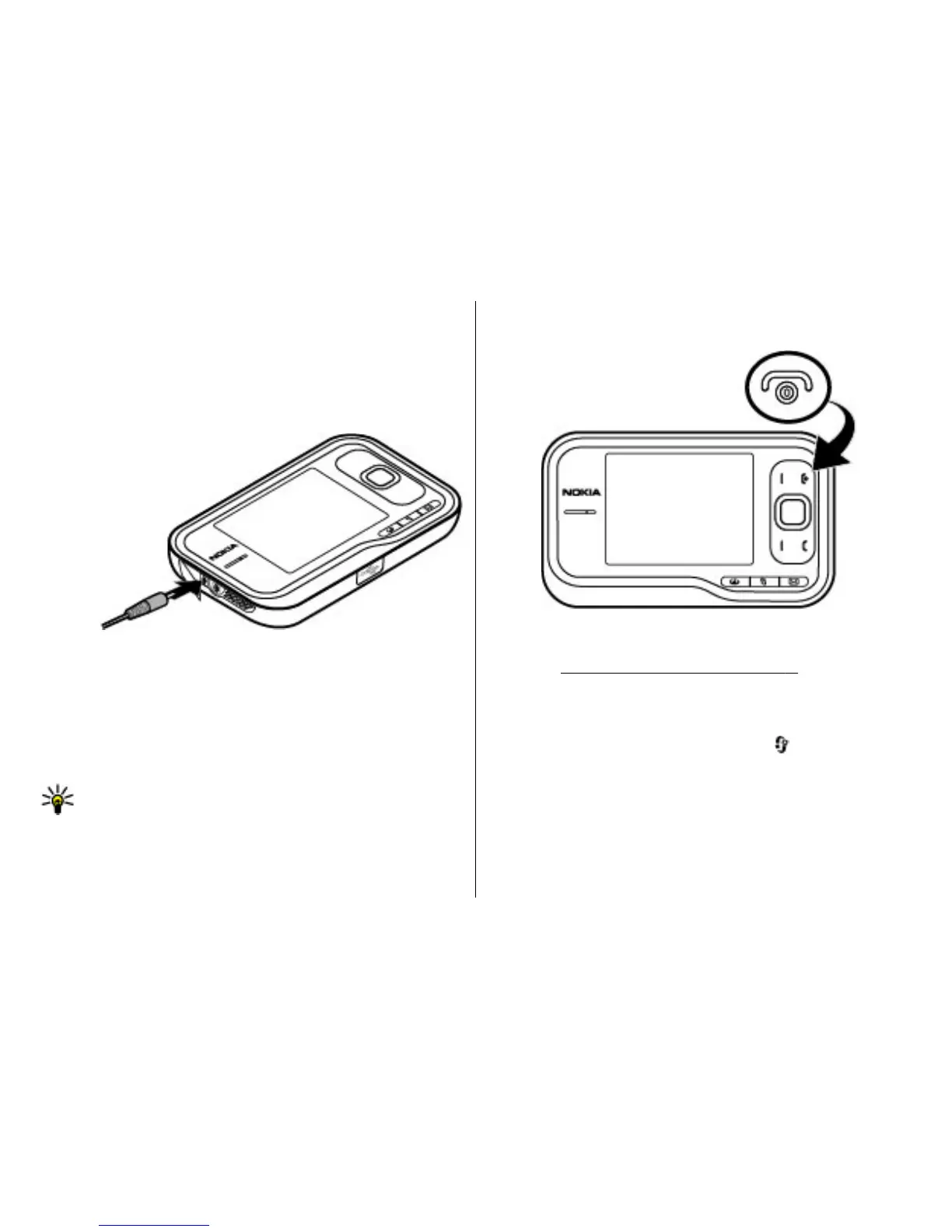

Nokia 6790 Surge / Nokia 6790 Slide / Nokia 6760 Slide
RM-492 / RM-599 / RM-573
Service Manual Level 1&2
14
Confidential
Copyright © 2009 NOKIA
All rights reserved
Version 1.0
ISSUE 1
13) Open the 2UA_05A UI MODULE connector with
the SS-93. Be careful not to damage the connector
or nearby components.
14) Separate the LIGHT SWAP PWB by rotating it
counter-clockwise so that the connector can be
easily pulled through the hole.
15) Remove the QWERTY KEYMAT. Do not use it
again.
16) Use the dental tool to lift the edge of the
QWERTY KEYMAT DOMESHEET with LIGHT GUIDE. Then
peel and remove the whole domesheet. Do not use
it again. Discard it.
17) To remove the SIM CARD FILM, first open the SIM
card lid. Then use the dental tool to lift the SIM CARD
FILM and peel it off.
18) Use the dental tool to lever out the XX LID. Be
careful not to damage nearby components. After
removing the first lid remove also the two
remaining lids.
