7070 Prism RH-116, RH-1
17
Service Manual Level 1&2
ISSUE 1
Confidential
13

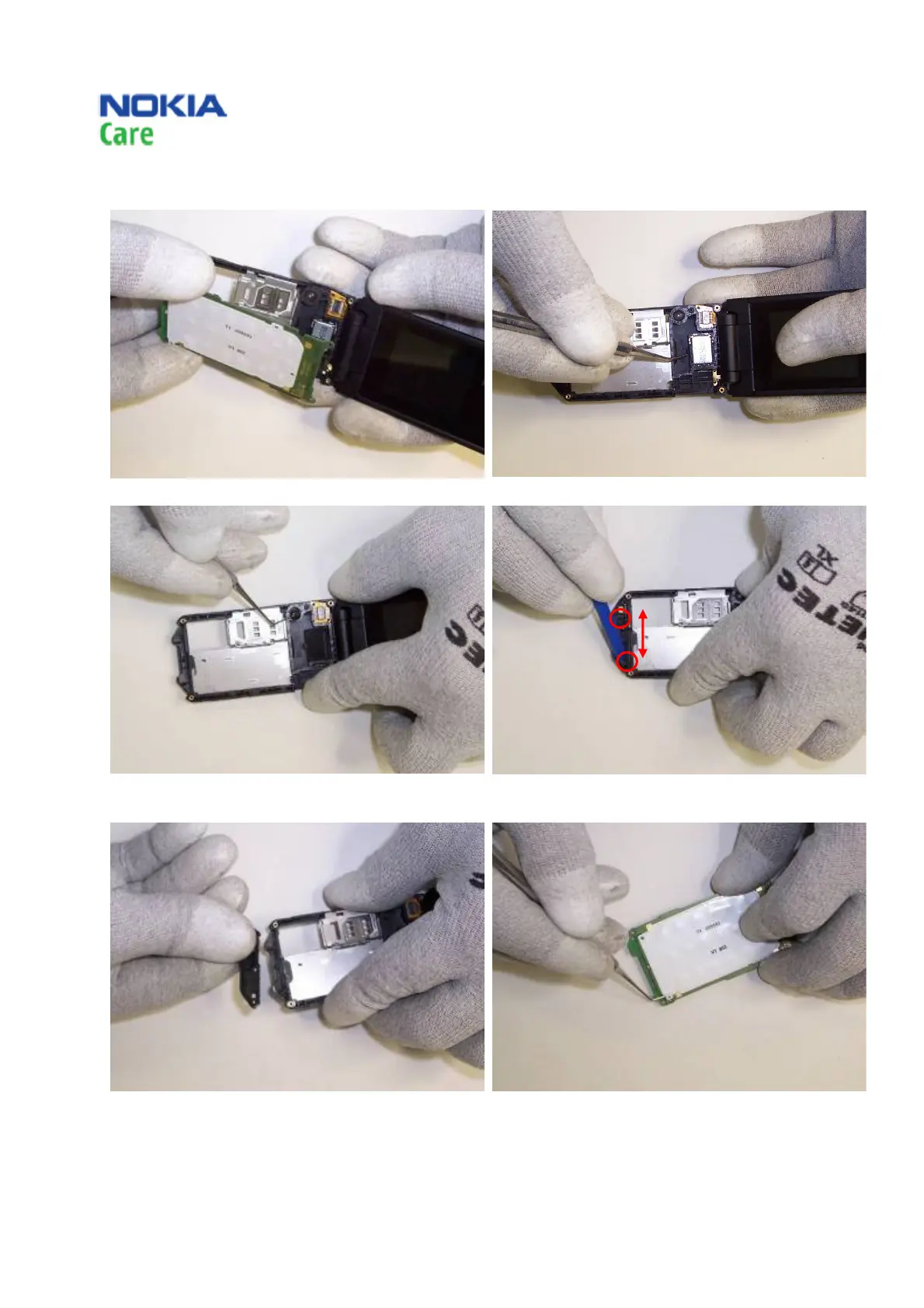

7) Remove the PWB from the D-cover.
8) Use the dental tool to remove the IHF speaker.
9) Use the dental tool to remove the microphone.
10) Use SS-93 to
release the clips holding the
antenna.
11) Remove the antenna assembly.
12) Use the
dental tool to lift the
corner of the
dome sheet.
Copyright @ 2008 NO
KIA. All rights reserved
12
14
Table of Contents
Table of Contents
2
Change History
3
Copyright
4
Warnings and Cautions
5
Warnings
5
Cautions
5
ESD Protection
6
Care and Maintenance
7
Battery Information
8
Spare Parts Overview/Exploded View
9
Service Devices
10
SW-Update
11
Disassembly Instruction
12
Assembly Hints
18
Solder Components
19
