7070 Prism RH-116, RH-117
Service Manual Level 1&2
ISSUE 1
Confidential
12
10. DISASSEMBLY INSTRUCTION

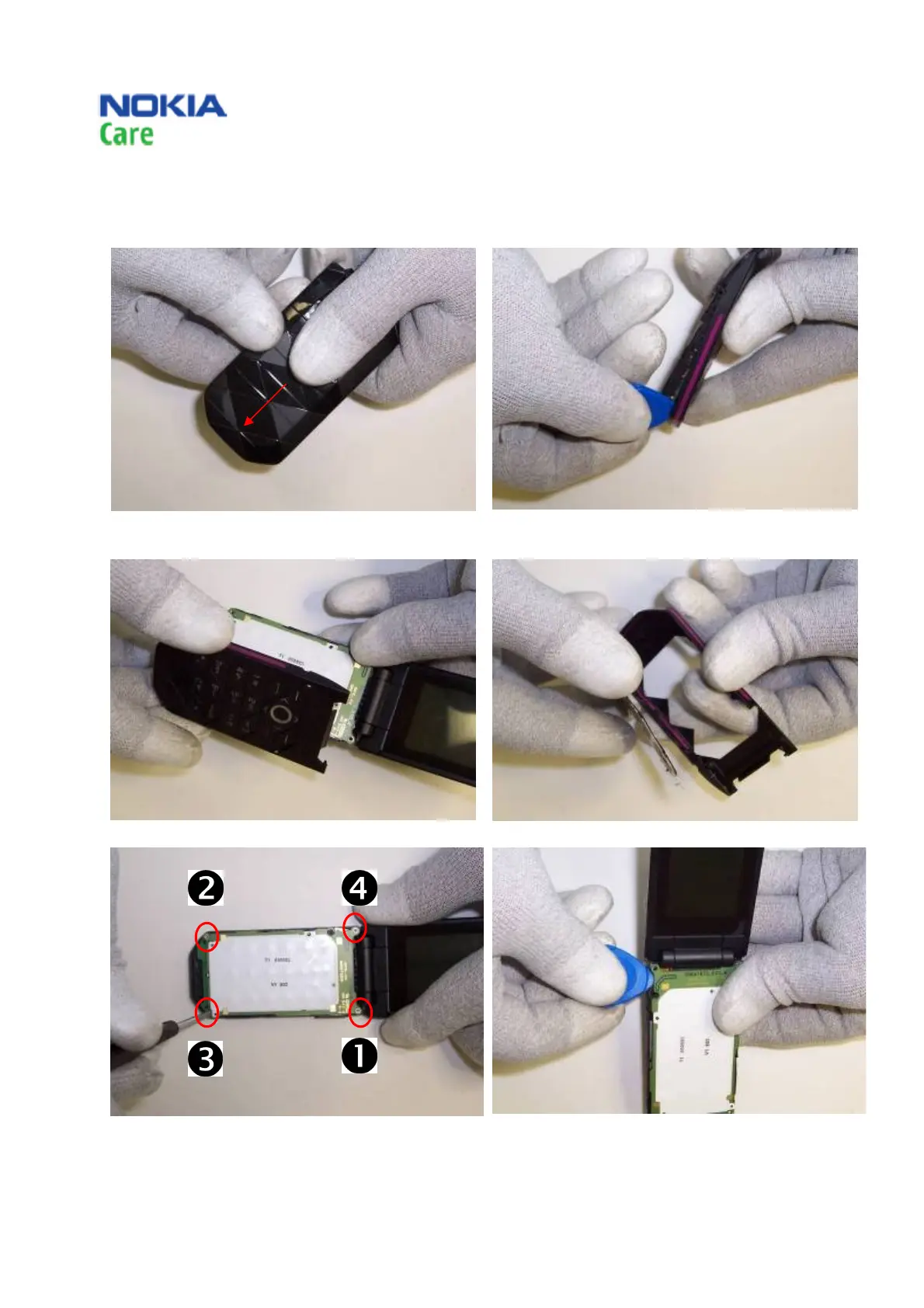

1) Slide the battery cover back and remove it. 2) Starting at the lower corner, work the SRT-6
between C and D covers.
3) Remove the C-cover. 4) Separate the keymat from the C-cover.
5) Remove the 4 Philips screws.
6) Use SRT-6 to separate the PWB from flex conn.
