9. DISASSEMBLY INSTRUCTIONS

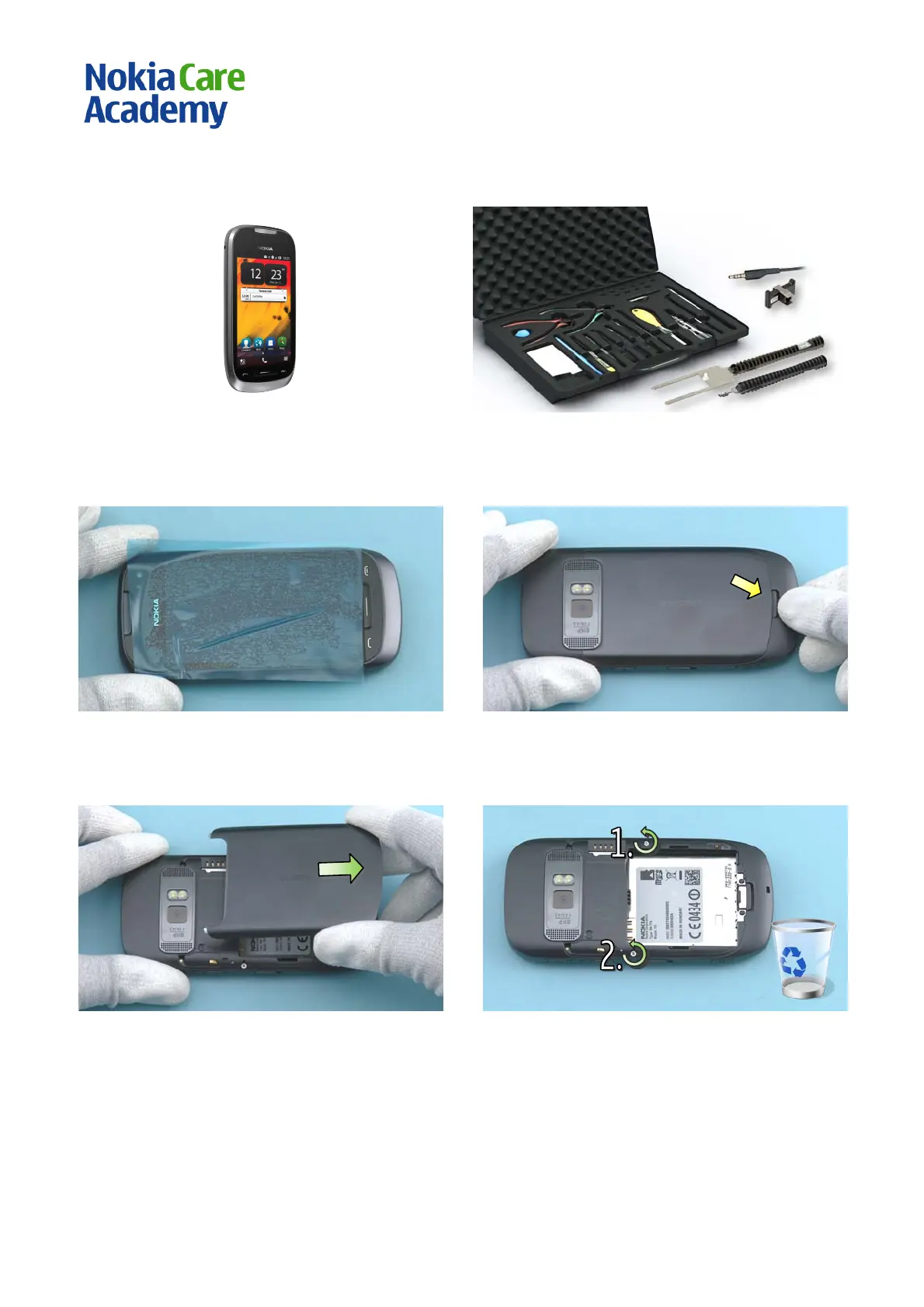

1) Nokia 701 disassembly.
2) For disassembling you need the Nokia Standard
Toolkit version 2, camera removal tool SS-210, SS-
231, display removal tool SS-250 and the AV plug.
3) Protect the A-COVER with protec tive film.
4) Push the release button to detach the BATTERY
COVER.
5) Remove the BATTERY COVER. If there is a battery
inserted, remove it also.
6) Unscrew the two TORX+ size 4 screws in the order
shown. Do not use them again!
