Nokia 7210 SAS-M Configuration Guide

Multi-Chassis LAG
Page 98 7210 SAS M, T, X, R6, R12, Mxp, S, Sx Interface Configuration Guide

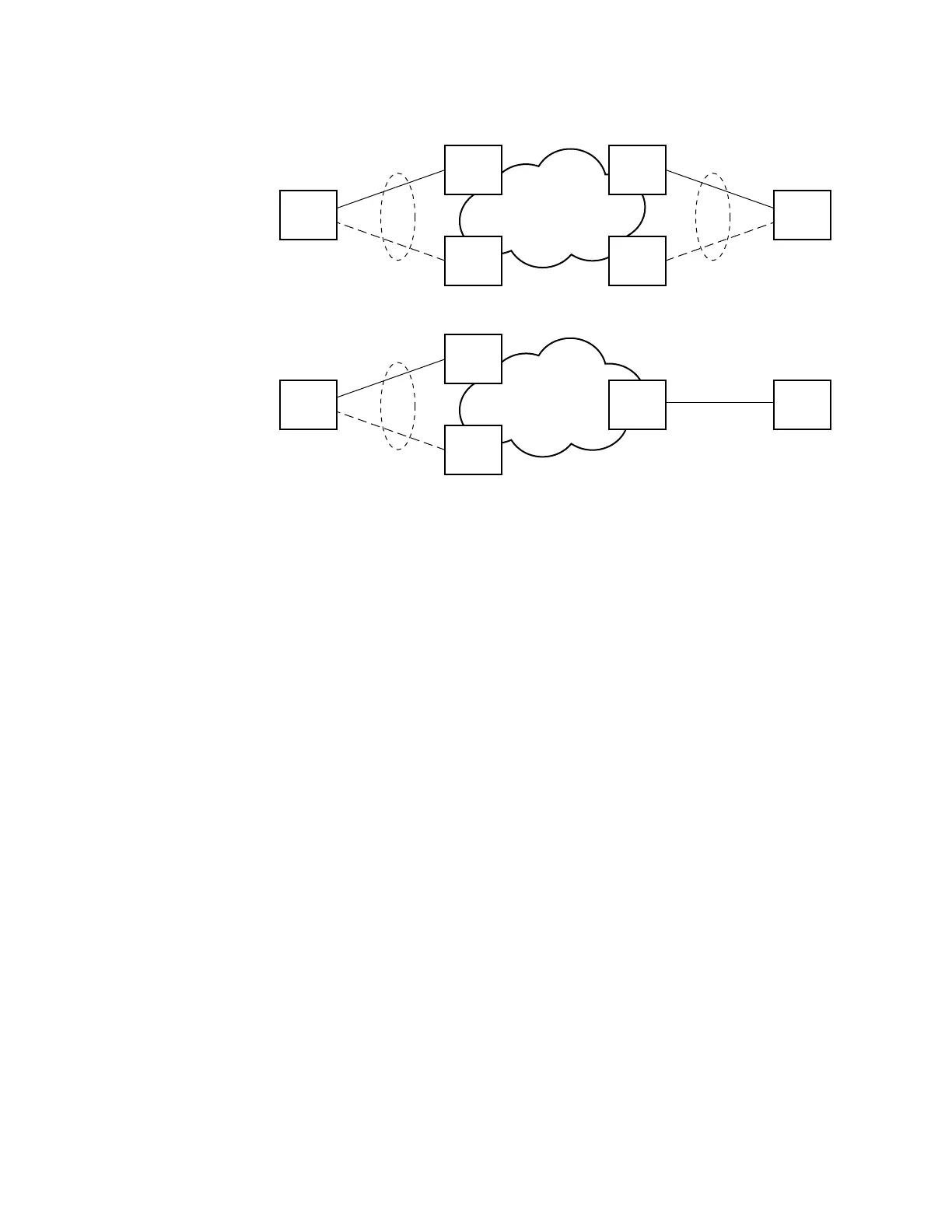

Figure 4: MC-LAG L2 Dual Homing to Remote PE Pairs
Figure 4 depicts different combinations of MC-LAG attachments supported. The supported
configurations can be sub-divided into following sub-groups:
• Dual-homing to remote PE pairs
− both end-points attached with MC-LAG
− one end-point attached
• Dual-homing to local PE pair
− both end-points attached with MC-LAG
− one end-point attached with MC-LAG
− both end-points attached with MC-LAG to two overlapping pairs
MSANA
PE-A
PE-B
IP MPLS
Network
MG-
LAG
MSAN
PE-D
PE-C
MG-
LAG
MSANB
PE-A
PE-B
IP MPLS
Network
MG-
LAG
MSAN
PE-C
Fig 6
