10. DISASSEMBLY INSTRUCTIONS (ALSO SEE THE VIDEO CLIPS ON CARE POINT)

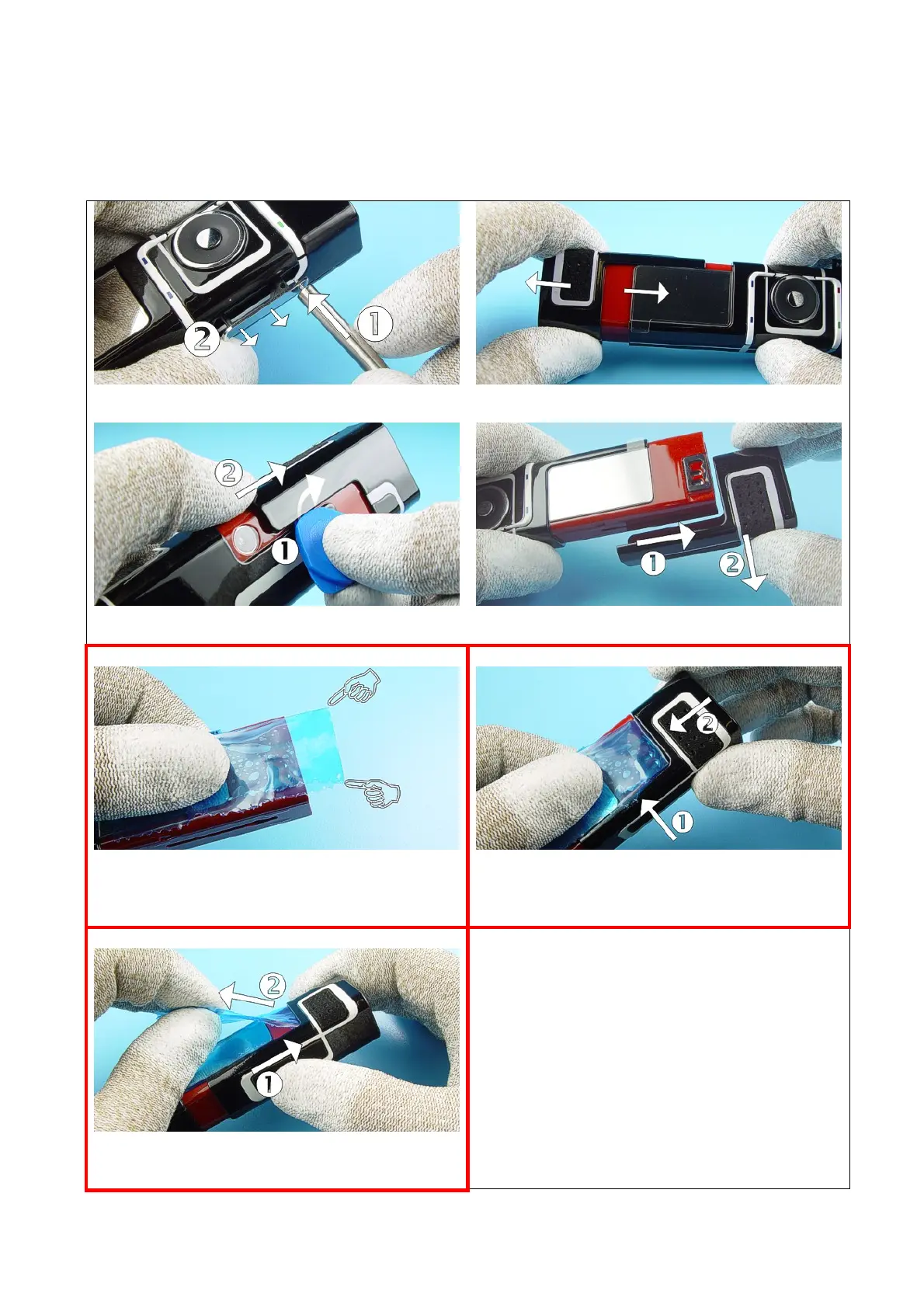

1.) Use the SIM Tray Release Tool to open the SIM
Holder.
2.) Open the Slide Cover.
3.) Use the SRT-6 as a lever to remove the Slide Cover. 4.) First shift the Slide Cover as far as it will go and
then remove it from its guide.
For assembly only!
It is necessary to protect the Slide Gasket when
assembling the Slide Cover. Therefore put a folded
strip of the protection film on the A-Cover as shown.
For assembly only!
Then assemble the Slide Cover Assy in the shown
order.
For assembly only!
Open the Slide Cover Assy and remove the strip
carefully.
