7500 RM-249 / RM250
Page (18) ISSUE 2
Service Manual Level 1&2
ASSEMBLY HINTS13.

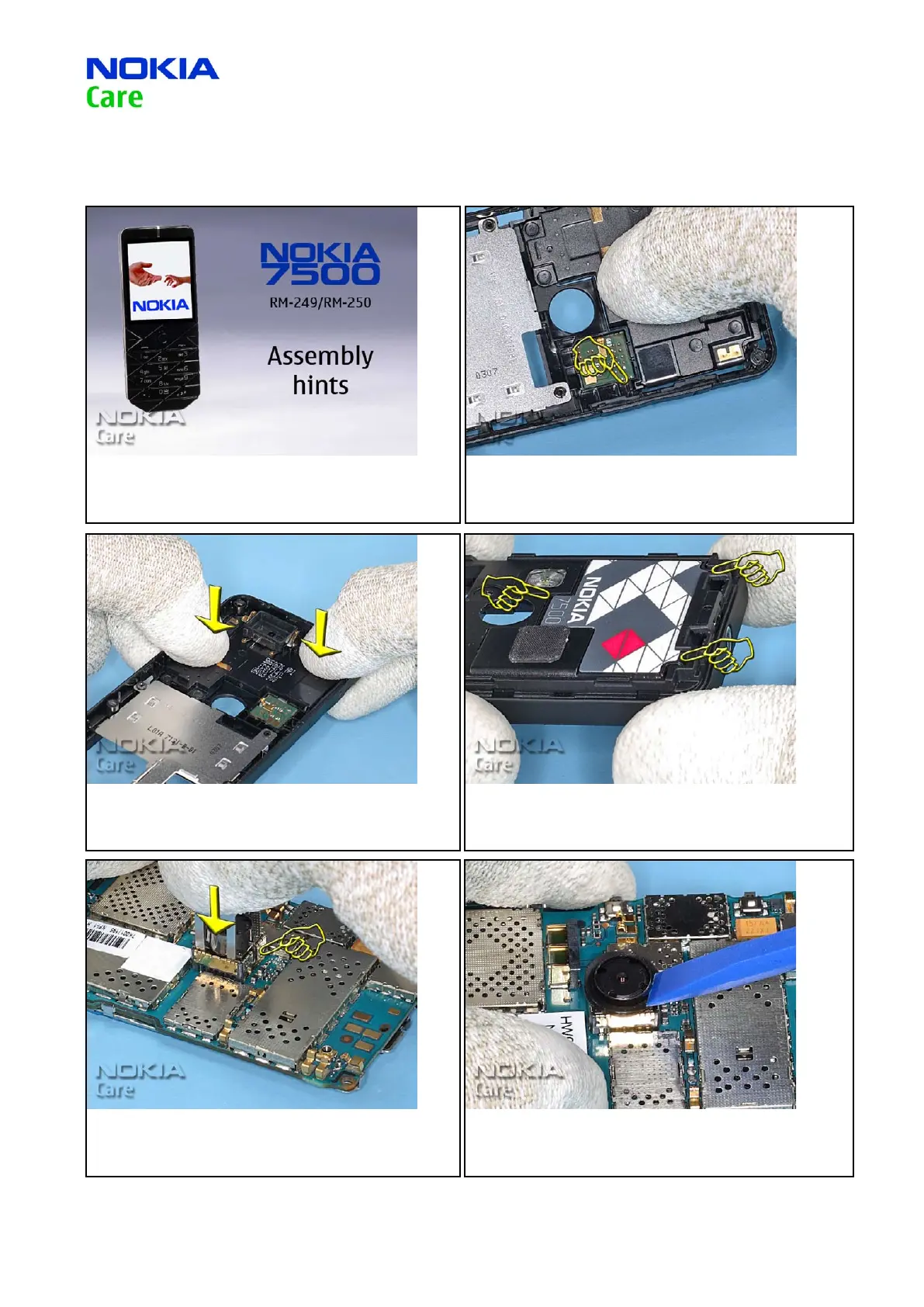

1. Nokia 7500 Assembly Hints.
2. Insert the ANTENNA into the B-COVER ASSY starting with the
shown clip.
3. Secure the ANTENNA to the B-COVER by pressing it into place.
Avoid bending the spring contacts.
4. Ensure that the ANTENNA is tted correctly.
5. Insert the CAMERA MODULE paying attention to the correct
position.
6. Fit the CAMERA GASKET to the CAMERA MODULE.
