Scratch sound when fast closing of grip module I002
Pre-Check:
Press the side button to open the Grip module. Now close the grip.
- If a scratch sound is to be heard, follow repair instructions:
o See “scratch sound when fast closing of grip module I002”
Scratch sound when fast closing of grip module I002
If a scratch sound is to be heard while closing the grip module I002, the open/ close mechanism is damaged.
To solve the problem change following items:
I002 grip module C
I009 limiter assembly
Change the I007 shield assy to the new one

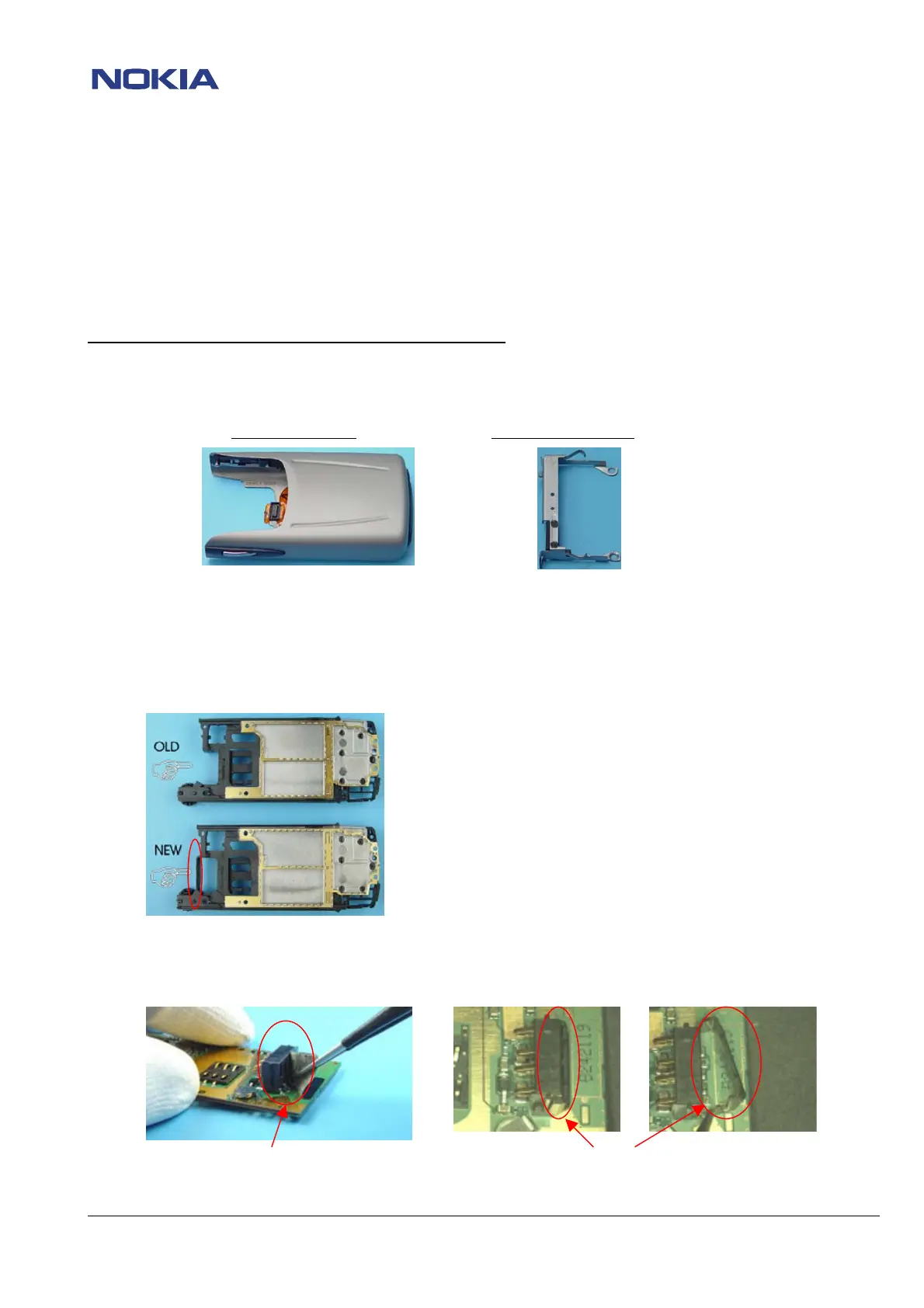

Note! Use the new shield assy and remove the black plastic tape or black cover behind the battery connector if
necessary. The new shield assy is not matching with the old battery cover (see pictures below). (See SB-021/8910 or SB-
007/8910i)
Remove the black plastic tape or the black plastic cover. Both cover types are possible.
Tape cover Plastic cover
