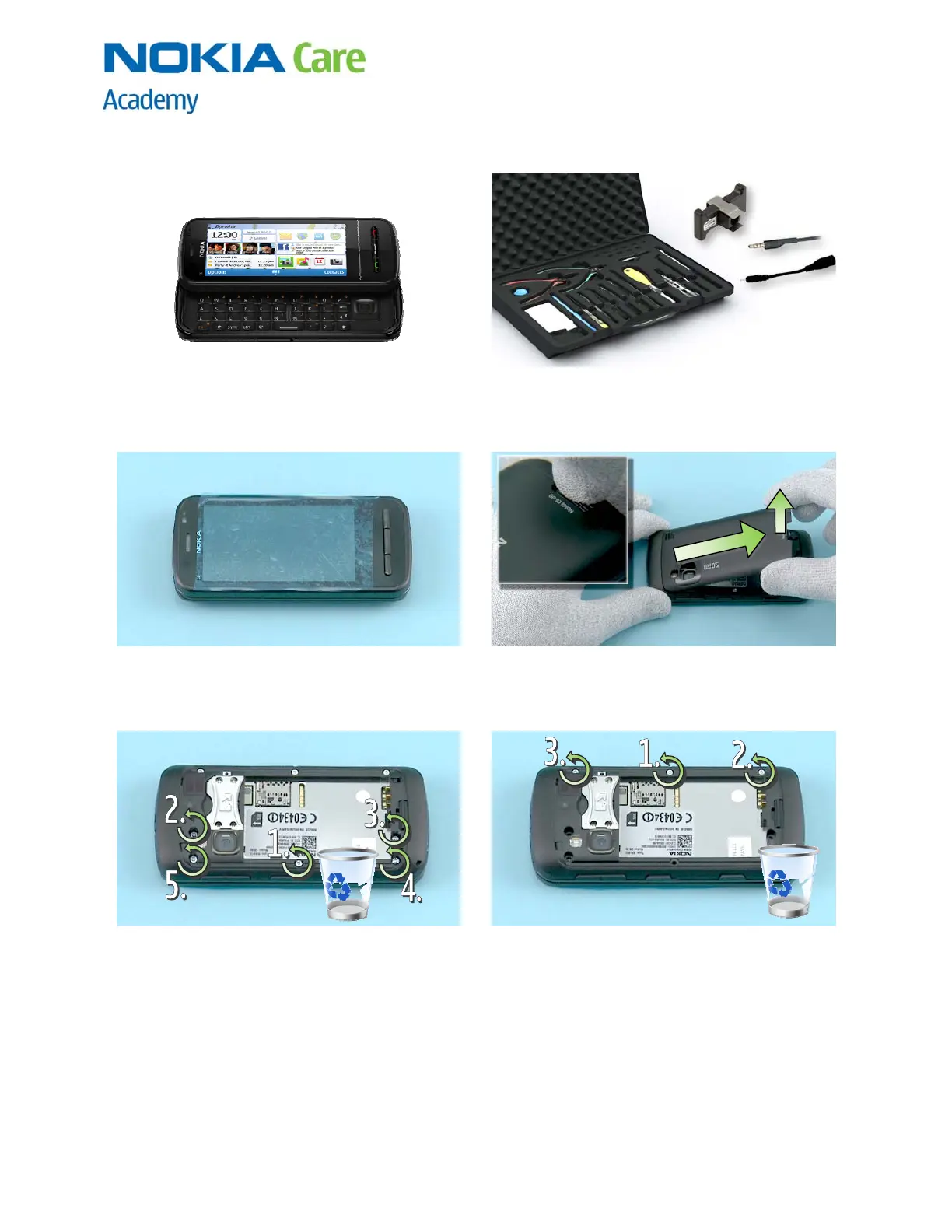

9. DISASSEMBLY INSTRUCTIONS
1) Nokia C6-00 disassembly. 2) You must use the Nokia Standard Toolkit version
2. You will also need the SS-210 v2.0 camera
removal tool, AV plug and the 2 mm charger plug.
3) Protect the A-COVER with protective film to avoid
scratches.
4) Open the locking mechanism of the BATTERY
COVER. Lift up the bottom end of the BATTERY COVER
and pull it direction shown to remove it.
5) Unscrew the five TORX+ size 6 screws in the order
shown. Do not use them again. Discard them.
6) Unscrew the three TORX+ size 4 screws in the
order shown. Do not use them again. Discard them.
