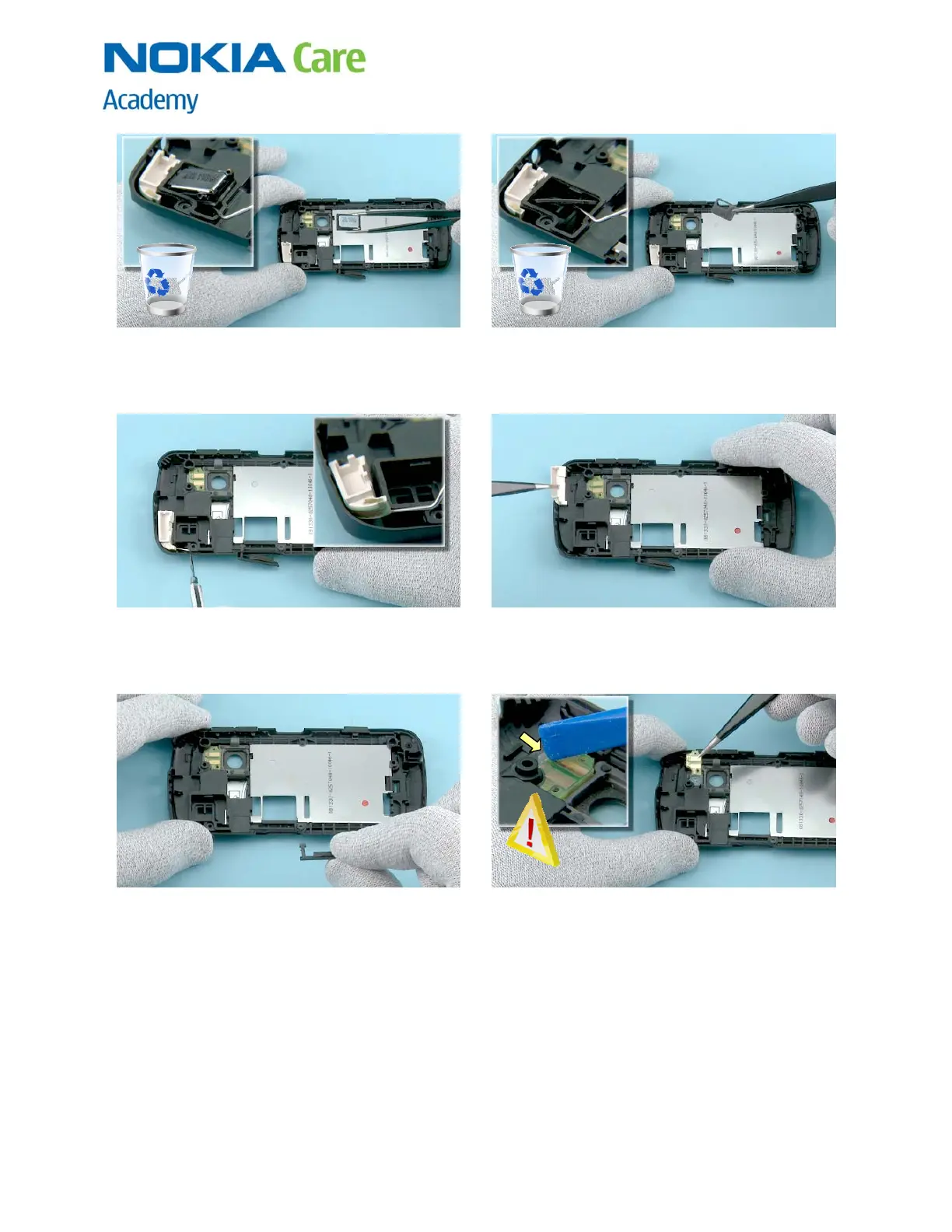

37) Lever out the IHF SPEAKER with the dental tool.
Remove the IHF SPEAKER with tweezers. Do not use
it again. Discard it.
38) Remove also the IHF ADHESIVE with the dental
tool. Do not use it again. Discard it.
39) Lift up the GPS / BT / WLAN ANTENNA with the
dental tool as shown.
40) Remove the GPS / BT / WLAN ANTENNA with the
tweezers.
41) Pull out and remove the SD DOOR. 42) Carefully push the shown clip with the SS-93 so
that the FLASH LED ASSY is released. Then lift up and
remove the FLASH LED ASSY with the tweezers.
