Nokia C7-00 - Page 19

Nokia C7-00
RM-675
Service Manual Level 1&2
19
Confidential | Copyright © 2010 Nokia | All rights reserved
Version 2.0

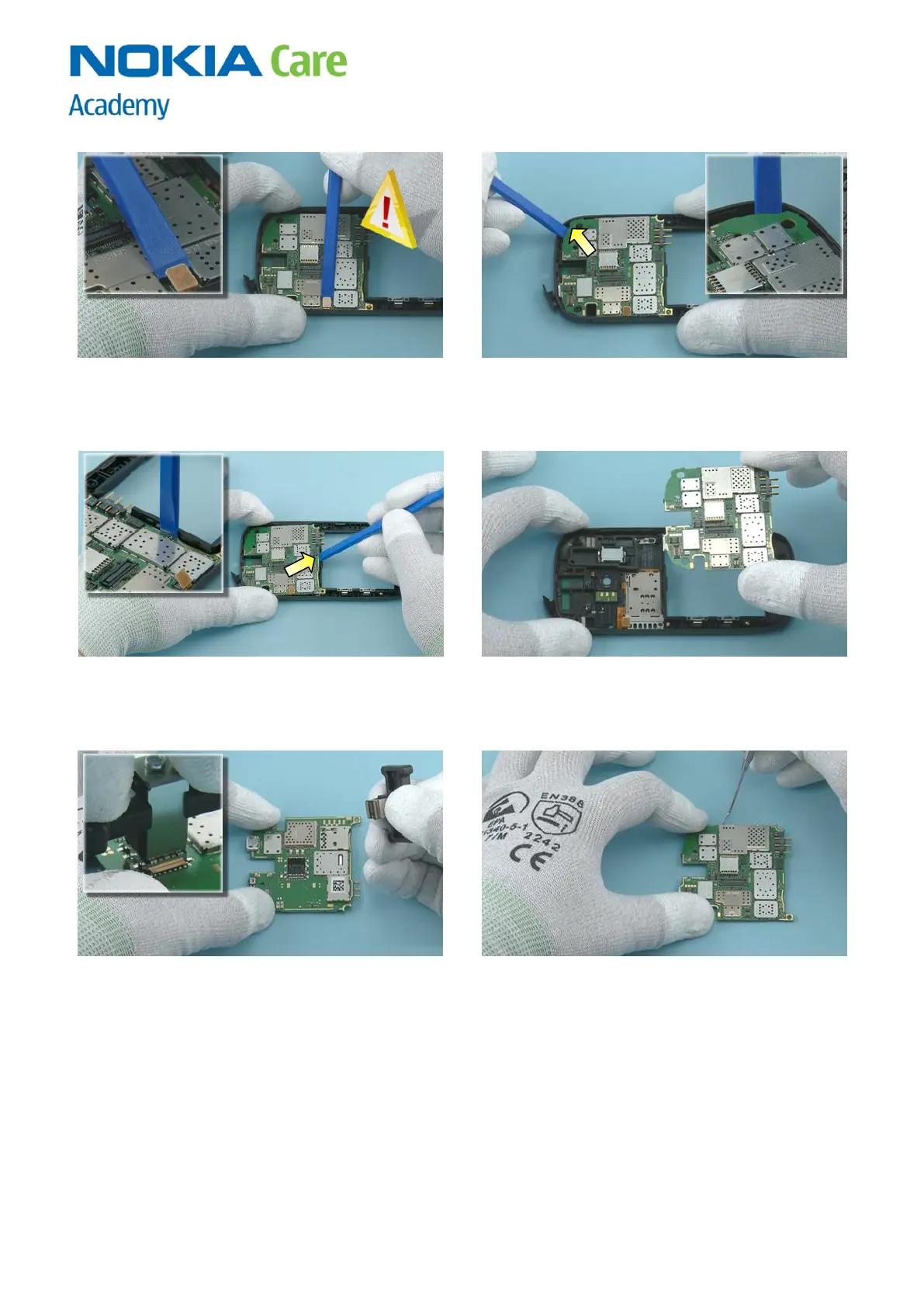

43) Use the SS-93 to release the SIM CARD READER
connector. Be careful not to damage any nearby
components.
44) Use the SS-93 to release the first clip holding the
bottom end of the ENGINE BOARD.
45) Use the SS-93 to release the second clip holding
the ENGINE BOARD.
46) Remove the ENGINE BOARD.
47) Use the SS-210 to remove the CAMERA MODULE.
48) Release the IMAGING PROCESSOR SHIELDING LID
with the dental tool.
