Nokia C7-00 Service Manual

Nokia C7-00
RM-675
Service Manual Level 1&2
23
Confidential | Copyright © 2010 Nokia | All rights reserved
Version 2.0

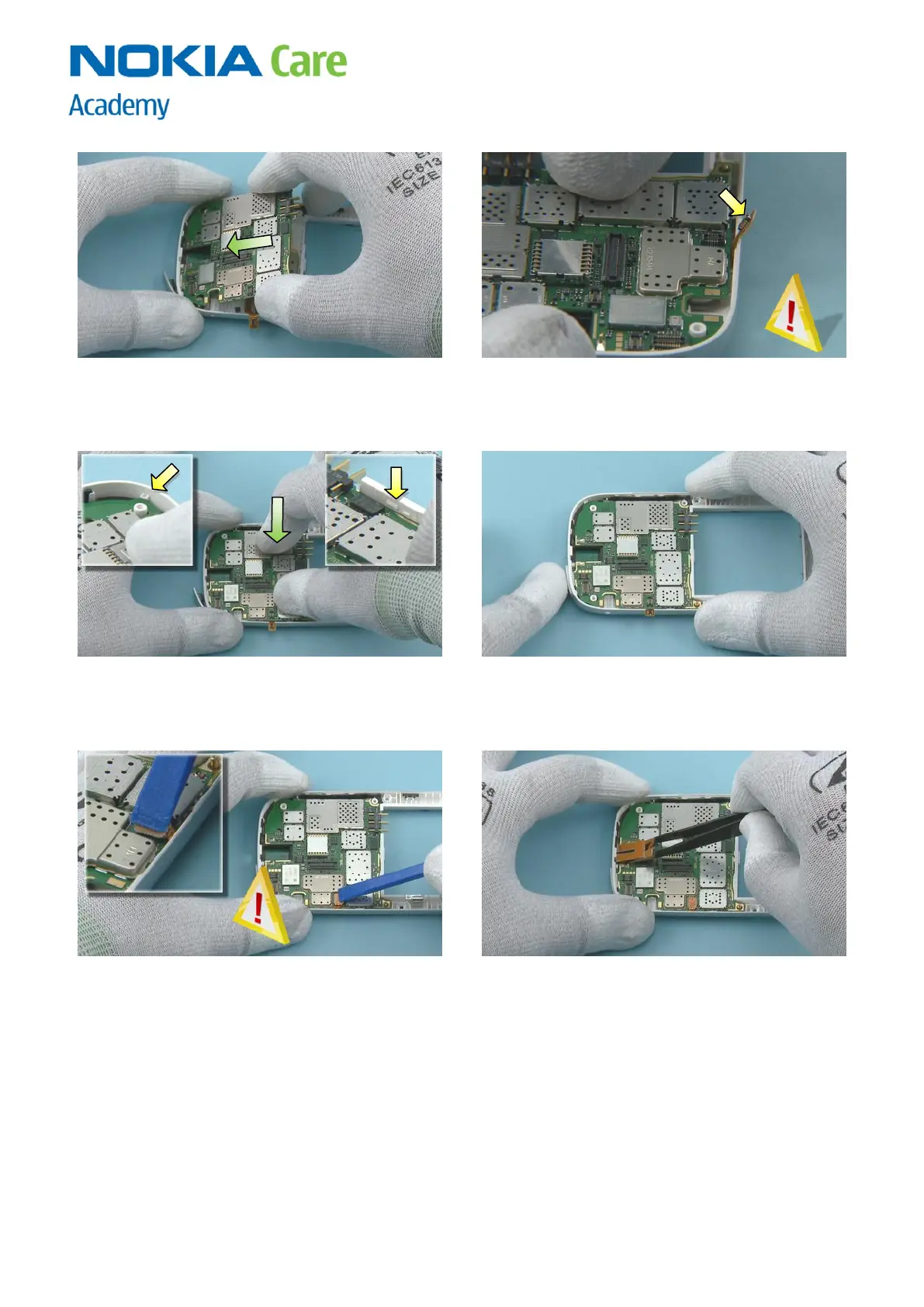

12) Insert the ENGINE BOARD to the B-COVER as
shown.
13) Before lowering the ENGINE BOARD, make sure
that the SIM CARD READER connector is not left under
the ENGINE BOARD and is not damaged.
14) Press the ENGINE BOARD gently to fasten the clips
as shown.
15) Close the USB DOOR.
16) Connect the SIM CARD READER connector with the
SS-93. Be careful not to damage the connector or
components nearby!
17) Place the AV JACK with the tweezers.

Nokia C7-00 Specifications

General

Display Type	AMOLED capacitive touchscreen, 16M colors
Operating System	Symbian^3, upgradable to Nokia Belle OS
CPU	680 MHz ARM 11
Internal Storage	8GB
RAM	256MB
Front Camera	No
Battery	Removable Li-Ion 1200 mAh battery (BL-5K)
Announced	2010, September
Status	Discontinued
Technology	GSM / HSPA
2G bands	GSM 850 / 900 / 1800 / 1900
3G bands	HSDPA 850 / 900 / 1700 / 1900 / 2100
GPRS	Class 33
EDGE	Class 33
Weight	130 g (4.59 oz)
SIM	Mini-SIM
Protection	Corning Gorilla Glass
GPU	Broadcom BCM2727
Card slot	microSD, up to 32GB (dedicated slot)
Video	720p@25fps
Alert types	Vibration; MP3, WAV ringtones
Loudspeaker	Yes
3.5mm jack	Yes
WLAN	Wi-Fi 802.11 b/g/n
Bluetooth	3.0, A2DP
NFC	Yes
Radio	Stereo FM radio, RDS
Sensors	Accelerometer, proximity, compass
Browser	WAP 2.0/xHTML, HTML, Adobe Flash Lite
Stand-by	Up to 552 h (2G) / Up to 648 h (3G)
Talk time	Up to 9 h 30 min (2G) / Up to 5 h (3G)
Music play	Up to 54 h
Display Size	3.5 inches
Resolution	360 x 640 pixels
Main Camera	8 MP
Speed	HSPA 10.2/2 Mbps
Dimensions	117.3 x 56.8 x 10.5 mm
GPS	Yes, with A-GPS
USB	microUSB 2.0
Colors	Mahogany Brown, Charcoal Black
