Nokia Lumia 1020 Disassemble Guide

Nokia Lumia 1020 – Disassemble Guide
Page 5 of 7
hp://www.fixez.com/

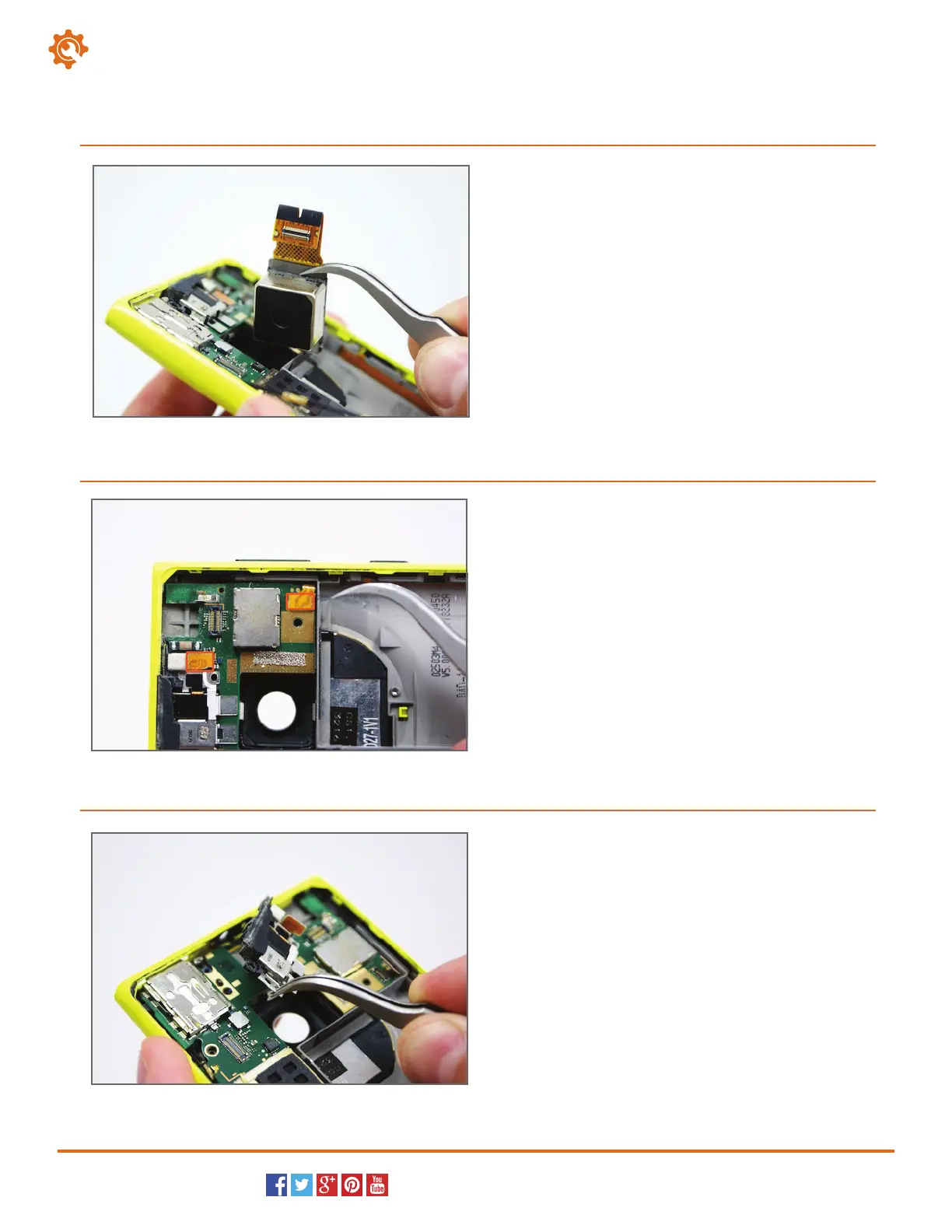

Using your fine tip curved tweezers, or spudger, pry up
and release the connector for the rear-facing camera.
You can now gently remove the rear-facing camera
assembly from the Nokia smartphone.
10.
Locate the two wafer style connectors (marked with
orange rectangles) and release them with the fine tip
curved tweezers.
11.
Next, again utilizing the fine tip curved tweezers, release
the headphone jack assembly connector and maneuver
the assembly out of the Lumia 1020.
12.
Rear-Facing Camera Assembly
Headphone Jack Assembly

Nokia Lumia 1020 Specifications

General

Display	4.5 inches, AMOLED, 768 x 1280 pixels
RAM	2 GB
Operating System	Microsoft Windows Phone 8, upgradable to 8.1
Chipset	Qualcomm MSM8960 Snapdragon S4 Plus
CPU	Dual-core 1.5 GHz Krait
GPU	Adreno 225
Weight	158 g (5.57 oz)
Dimensions	130.4 x 71.4 x 10.4 mm (5.13 x 2.81 x 0.41 in)
Network	GSM / HSPA / LTE
Front Camera	1.2 MP, 720p
Internal Storage	32 GB
Battery	Li-Ion 2000 mAh, non-removable
Camera	41 MP, OIS, Xenon flash, LED flash
