Nokia Lumia 1520 – Disassemble Guide

Page 5 of 6

hp://www.ﬁxez.com/

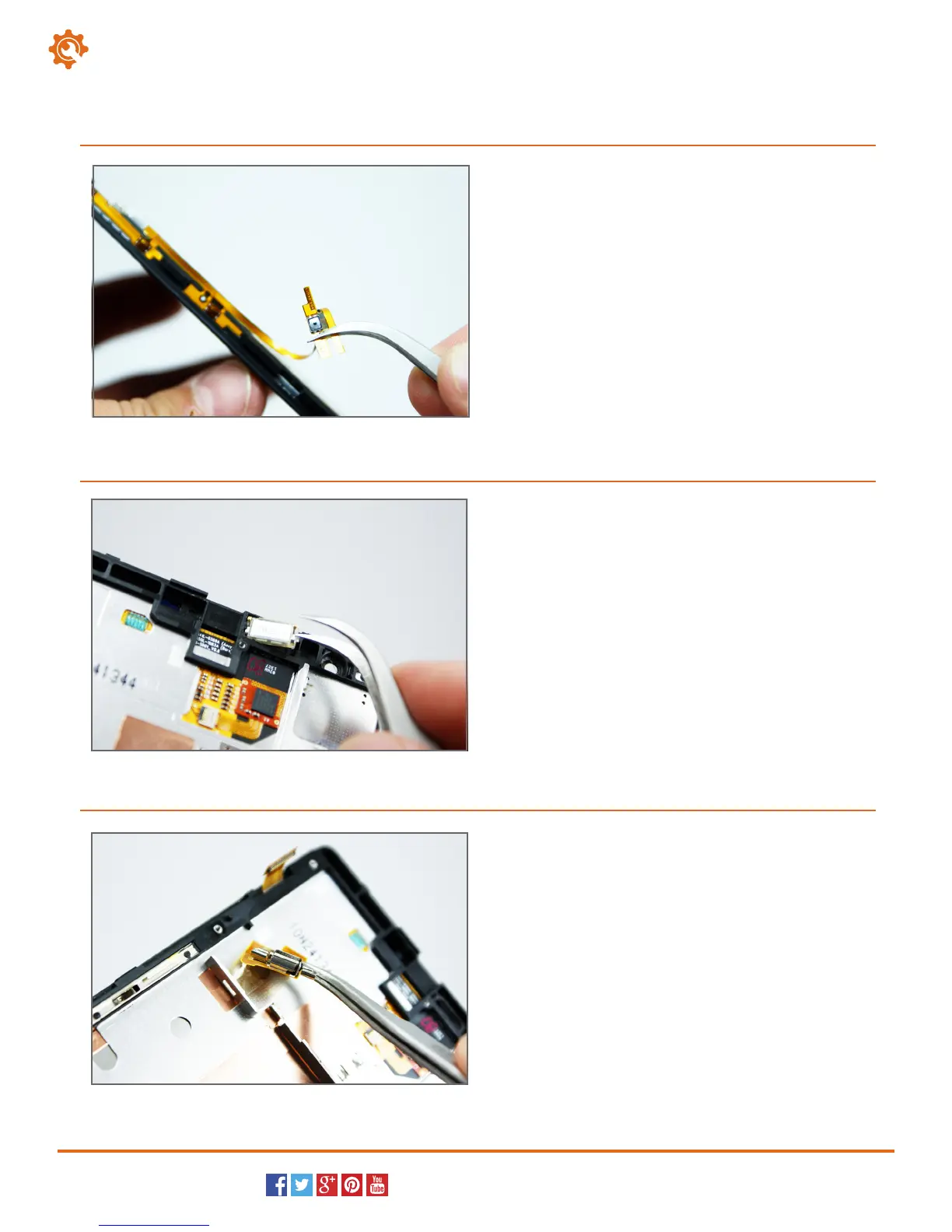

Use a heat gun or a blow dryer to soften the adhesive

securing the power and volume buttons cable in place.

Then, with the fine-tip curved tweezers gently remove

the power and volume buttons cable from the side of

the Nokia handset.

10.

Use the fine-tip curved tweezers to lift up and remove

the earpiece speaker from its housing.

11.

Use a heat gun or a blow dryer to soften the adhesive

securing the vibrator in place. Then with the fine-tip

curved tweezers lift and remove the vibrator from the

Lumia 1520 smartphone.

12.

Power & Volume Buons Cable

Earpiece Speaker

Vibrator
