Nokia Lumia 1520 – Disassemble Guide

Page 4 of 6

hp://www.ﬁxez.com/

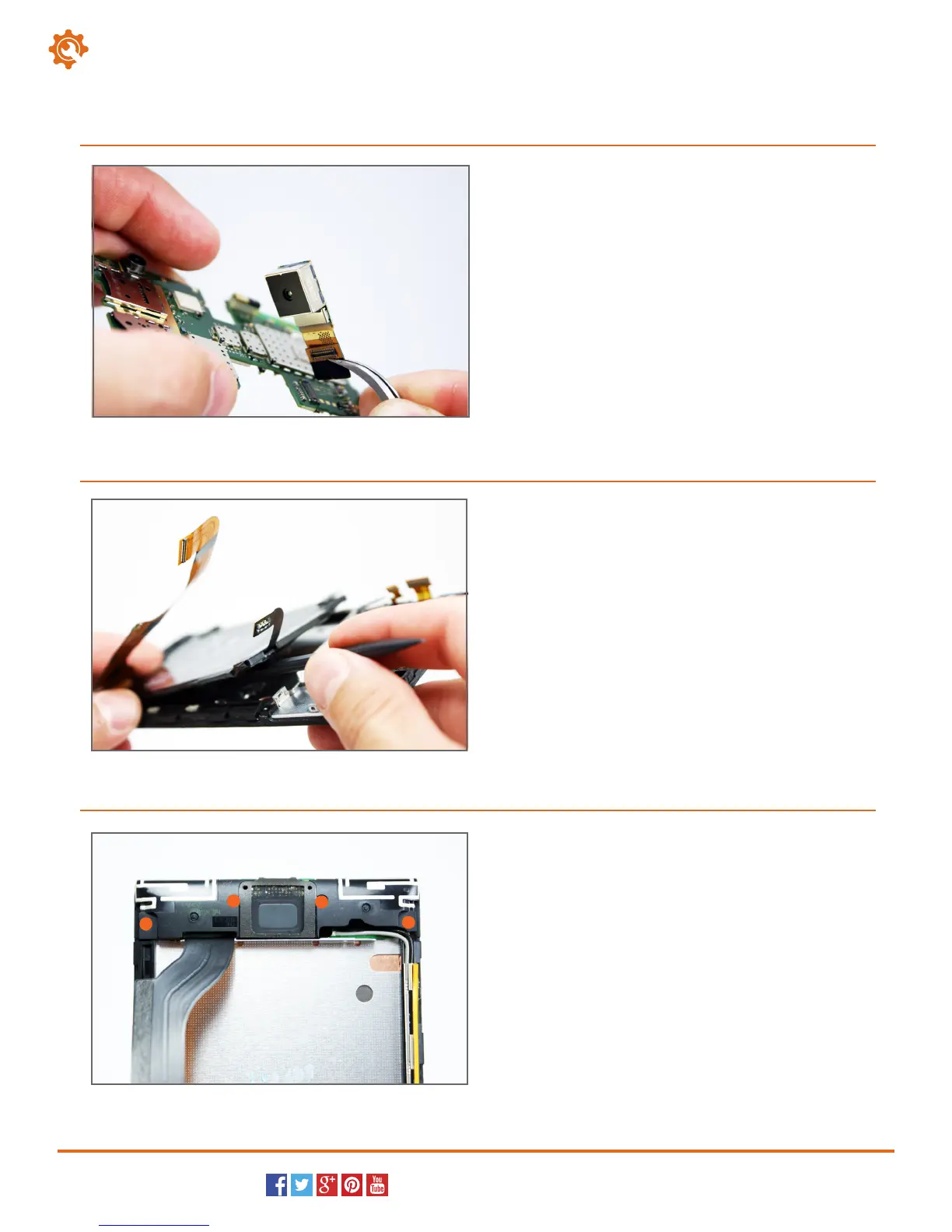

On the bottom of the motherboard locate the rear-fac-

ing camera connection. Use the fine-tip curved tweezers

to disconnect the camera and remove it from the Nokia

handset.

Use the heat gun or blow dryer to soften the adhesive

that secures the battery to the center of the Nokia

Lumia 1520.

Then, insert the flat side of the spudger underneath the

battery and gently pry it up and out of the smartphone.

Locate and remove the four small Phillips screws (#00)

that secure the micro USB dock port and loudspeaker in

place (marked with orange circles).

Next, use the plastic opening tool, or the spudger, to

gently pry up and remove the micro USB dock port

assembly and loudspeaker from the Lumia 1520.

Rear-Facing Camera

Baery

Micro USB Dock Port Assembly and Loudspeaker
