Nokia Lumia 630 Service Manual

Service Manual Level 1 and 2
Nokia Lumia 630 (RM-976, RM-977)
Nokia Lumia 630 Dual SIM (RM-978, RM-979)
Version 1.0

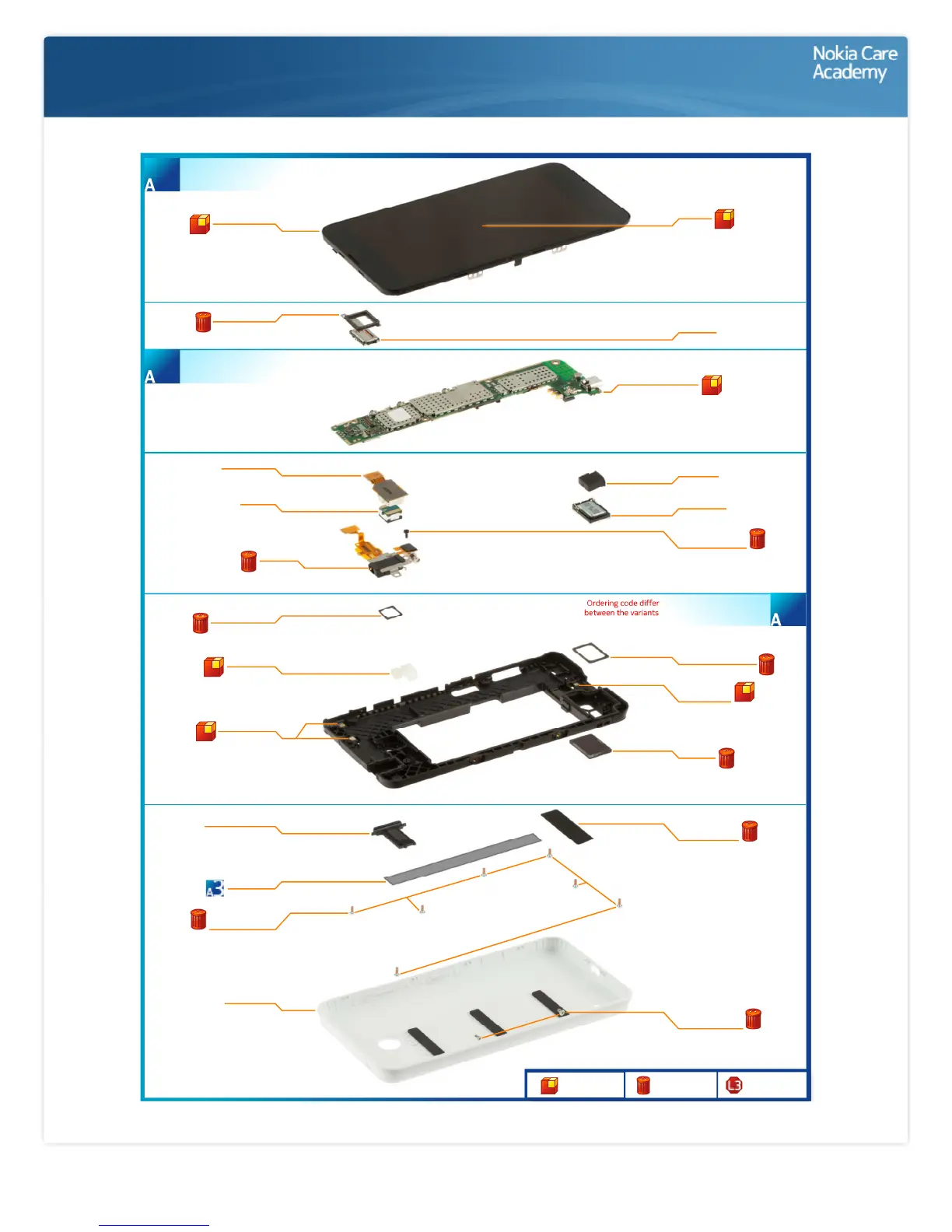

Exploded view
WINDOW FRAME
I0001
CAMERA FLEX
I0016
CAMERA
I0017
TOP FLEX
I0015
VIBRA BOOT
I0007
DUAL SIM BARRIER
I0023
*NOTE: Only in single
SIM variants
*NOTE:
*NOTE: Ordering code
differ between
the variants
CWS ANTENNA
I0005
BACK COVER
I0022
CAMERA GASKET
I0008
TYPE LABEL
I0012
EARPIECE PLATE
I0003
DISPLAY
I0002
EARPIECE
I0004
LIGHT SWAP PACKAGE
I0011
USB BOOT
I0013
IHF SPEAKER
I0014
IHF SPEAKER GASKET
I0009
ANTENNA 3G/
ANTENNA LTE
I0006
IHF MESH
I0010
MAIN ANTENNA
HOLE ADHESIVE
I0021
SCREW TORX+
SIZE 4 RF1.4 X 3.0
I0018
SCREW TORX+
SIZE 4 M1.4 x 2.5
I0020
SCREW TORX+
SIZE 4 M1.4 x 3.4
I0019
LIGHT SWAP PACKAGE
(I0011, I0012)
3
DISPLAY ASSEMBLY
(I0001, I0002)
1
CHASSIS ASSEMBLY
(I0005 - I0010)
2
Only available
as assembly
Not reuseable
after removal
Repair/swap
only in level 3
©2014 Nokia | Nokia Internal Use only | All Rights Reserved.

Nokia Lumia 630 Specifications

General

Display Size	4.5 inches
Resolution	480 x 854 pixels
Operating System	Microsoft Windows Phone 8.1
Processor	Quad-core 1.2 GHz Cortex-A7
Chipset	Qualcomm Snapdragon 400
RAM	512 MB
Internal Storage	8 GB
Expandable Storage	microSD, up to 128 GB
Rear Camera	5 MP
Front Camera	No
Battery Capacity	1830 mAh
Dimensions	129.5 x 66.7 x 9.2 mm
Weight	134 g
SIM	Micro-SIM
Network	GSM / HSPA
Colors	Bright Orange, bright green, bright yellow, white, black
Battery Type	Li-Ion (removable)
