Nokia Lumia 930, RM-1045 / RM-1087 | Board: 4MX_04z | v2.0 | 25.08.2014 | Upknowledge
Microsoft Internal Use only | Copyright © 2014 Microsoft, Only for training and service purposes

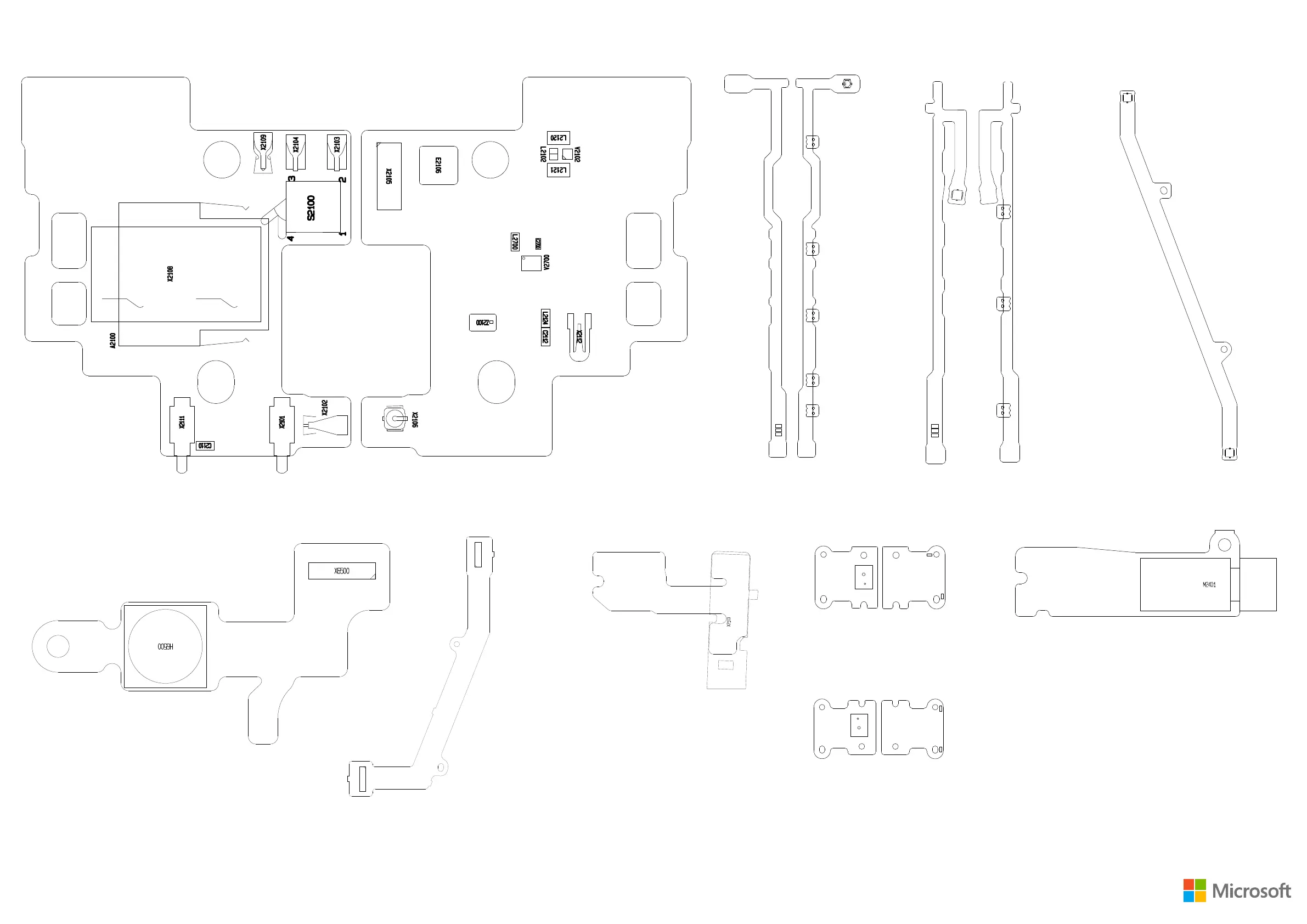

10 (10) | &RPSRQHQWƫQGHU)OH[ERDUGV
Antenna MIMO flex board (Board: 4dv_01a)Daughter PWB board (Board: 4nd_02z)
Jumper flex board (Board: 4dj_02a) HSJ flex board (Board: 4dg_03a)
Ant flex board (Board: 4ns_01z)Ant flex board (Board: 4nt_03a)
Skype Camera flex board (Board: 4dk_02a) Vibra flex board (Board: 4df_02z)Primary Mic flex board (Board: 4de_04z)
4th Mic flex board (Board: 4dl_03z)
X3707
X3702
X3703
X3704
X3600
X3601
X3710
X3709
X3708
X3707
X3706
X3705
X3706
C3703
C3707
C3706
L3706
C3700
R3702
X3706
C2101
B2100
C2100
C2101
B2100
C2100
